1U 24-Port Unshielded Patch Panel Removable 6-Port Inserts · Zip-Tie Free Cable Bar · Slim Profile Optimized Simplify your network maintenance with our 1U 24-Port Unshielded Blank Patch Panel. Engineered for high-speed reliability, this panel has been verified by Fluke engineering testing to ensure a stable internet connection. It features a unique tool-free design with four removable 6-port inserts, allowing you to make adjustments or repairs without disassembling your entire rack. The adjustable rear management bar uses high-efficiency snap-in clips, eliminating the need for messy zip ties. Built from a rugged combination of thickened cold-rolled steel and high-impact PC/ABS plastic, it offers the ultimate professional look for data centers, nightclub AV booths, and studio installations. Key Benefits Removable 6-Port Inserts: Sections of 6 ports can be popped out individually without tools, making maintenance and re-wiring incredibly fast. Fluke Engineering Verified: Proven stability for high-speed transmission, ensuring your network performs at peak capacity without signal drops. No Zip Ties Required: Features a rear adjustable cable bar with integrated clips that grip cables firmly for an efficient, tidy workspace. Thickened Steel Frame: Constructed from cold-rolled steel with a durable finish, paired with high-quality PC/ABS plastics for the port modules. Dust-Proof Protection: Includes removable labels and a screw-on dust cover to keep internal contacts clean and extend product life. Slim Profile Design: Specifically optimized for high-density slim profile keystones to ensure a perfect side-by-side fit. Professional Setup Guide Mount the 1U steel frame into your standard 19-inch equipment rack. Pop out one of the 6-port inserts if you need to pre-load your keystones comfortably on a workbench. Snap your slim-profile keystones into the insert and pop the module back into the frame. Route your cables through the rear adjustable bar and click them into the individual management slots—no zip ties required! Available in 5 Professional Set Options! We offer this panel in five tailored configurations to match your network speed: • Blank Patch Panel: For full custom multimedia setups. • 24 PCS STP CAT7 Set: Shielded 10Gbps high-end transmission. • 24 PCS STP CAT6A Set: Professional 10Gbps shielded data. • 24 PCS STP CAT6 Set: Standard 1Gbps with interference protection. • 24 PCS UTP CAT6 Set: Efficient 1Gbps unshielded connection. Technical Specifications Rack Space 1U (1.75") Standard Height Width 19 Inches (Universal Compatibility) Insert Design 4 x Removable 6-Port Modules Materials Cold-Rolled Steel (Frame) + PC/ABS (Inserts) Certification Verified by Fluke Engineering Testing Keystone Support Slim Profile Optimized (High Density) Management Bar Adjustable & Zip-Tie Free (Clip System) Packing List Panel + 4 Inserts + Back Bar + Hardware Upgrading a high-traffic server room or venue?We offer bulk discounts for commercial installers and IT venue contractors. Message us on WhatsApp Frequently Asked Questions Can I use any standard keystone jack? This high-density 24-port panel is designed for Slim Profile keystones. Because the ports are grouped closely together to fit 24 in 1U, "wide-body" jacks may be too broad to fit side-by-side. Please ensure your connectors are narrow-body high-density versions. Do I really not need zip ties for the back bar? Correct! The rear adjustable bar features built-in cable clips. You simply snap the Ethernet cable into the individual holders. This makes re-routing or adding a new cable much faster as you don't have to cut and replace zip ties every time. What is the advantage of the 6-port inserts? Easy Access. If you need to fix a single port in the middle of a full rack, you can pop out the entire 6-port module from the front. This gives you more room to work on the wiring without needing to unscrew the entire patch panel from the rack rails.

Read more less

1U 24-Port Keystone Patch Panel with Cable Management Available in 5 Professional Sets · Toolless Inline Termination · 70% Faster Install Revolutionize your network deployment with the 1U 24-Port Keystone Patch Panel. Designed for maximum speed and adaptability, this inline coupler system eliminates the need for tedious punch-down tools, allowing you to complete a full 24-port installation in under 10 minutes. Featuring a heavy-duty detachable steel back bar and gold-plated pins, it supports high-speed data transmission up to 10Gbps. Whether you need a bare blank panel for custom multimedia or a fully-loaded 10G Cat7 set, this expandable system offers a future-proof solution for data centers, studios, and high-performance venue rigs. Key Benefits 70% Time Savings: No punch-down required. Complete a 24-port setup in just 10 minutes compared to 30+ minutes with traditional 110-blocks. High-Speed Support: Select between Cat6, Cat6a, or Cat7 couplers to support up to 10Gbps transmission speeds with zero signal lag. Detachable Support Bar: Thick steel rear management bar reduces cable strain and improves network stability by preventing port loosening. Universal Expandability: Supports standard keystone jacks including Fiber, Coax, HDMI, and VGA for a fully customized multimedia bay. Gold-Plated Precision: Features high-conductivity gold-plated pins for correction-free connections and ultimate transmission reliability. Standard 19" 1U: Fits perfectly in any standard network cabinet or wall-mount rack with clear numbering for rapid identification. Simplified 4-Step Installation Insert your chosen couplers (Cat6/6a/7) into the 24 universal slots on the panel. Assemble the detachable rear management bar onto the patch panel using the provided hardware. Plug your pre-terminated Ethernet cables directly into the front and back of the couplers. Secure the cables to the back bar with zip ties to eliminate strain and ensure high-speed stability. Choose Your Performance Set! This listing offers 5 tailored configurations: • Blank Patch Panel: For custom keystone mixing. • 24pcs Cat7 Set: Ultimate 10Gbps shielded performance. • 24pcs Cat6a Set: Standard 10Gbps high-speed networking. • 24pcs STP Cat6 Set: 1Gbps with EMI shielding protection. • 24pcs UTP Cat6 Set: Economical 1Gbps high-quality connection. Technical Specifications Rack Height 1U (Standard 19-Inch Width) Port Capacity 24 x Universal Keystone Slots Termination Type Toolless Inline Coupler (Pass-Through) Speed Compatibility 1Gbps (Cat6) / 10Gbps (Cat6a, Cat7) Pin Material High-End Gold-Plated (Anti-Corrosion) Rear Support Bar Rugged Thick Steel (Detachable) Aesthetic Finish "Quiet Black" Textured Matte Finish Available Sets Blank / Cat7 / Cat6a / STP Cat6 / UTP Cat6 Configuring a large-scale venue or data center?We offer bulk discounts and customized coupler bundles for professional installers. Message us on WhatsApp Frequently Asked Questions What is the difference between STP and UTP? STP (Shielded Twisted Pair) includes internal shielding to block electromagnetic interference (EMI), ideal for noisy environments like clubs or server rooms. UTP (Unshielded Twisted Pair) is the standard economical choice for most home and small office networks. Can I replace a coupler if it breaks? Yes! This is the main benefit of a keystone panel. If one port fails, you simply snap out the broken coupler and snap in a new one, without having to re-wire or replace the entire patch panel. Do I need special cables for the Cat7 set? To achieve full Cat7 speeds (10Gbps), you should use Cat7 or Cat6a rated shielded cables. However, the Cat7 couplers are backwards compatible with Cat6 and Cat5e cables at their respective lower speeds.

Read more less

1U 8-Channel Pre-Wired XLR Patch Panel Plug-and-Play Solution · Oxygen-Free Copper (OFC) · HI-FI Audio Shielding Eliminate complex wiring and on-site soldering with our 1U 8-Channel Pre-Wired XLR Patch Panel. This professional stage-ready solution comes fully assembled with high-quality balanced XLR pigtails, allowing for an immediate "plug-and-play" installation. Designed for touring rigs, nightclubs, and music studios, each cable features an Oxygen-Free Copper (OFC) conductor and double shielding to block noise and EMI interference. Housed in a durable aluminum faceplate with an integrated strain relief bar, this panel ensures that your audio signals remain crystal clear and your connections stay stage-secure through every performance. Key Benefits Hi-Fi Sound Quality: Uses premium Oxygen-Free Copper (OFC) conductors and multi-layer shielding to ensure pure sound quality with zero interference. Plug-and-Play Setup: Fully pre-wired to save you hours of soldering and wiring. Simply mount the panel and connect the pigtails to your device. Dual Shielding Technology: Foil shielding combined with a copper spiral wrap effectively keeps your signal path clean from unwanted noise. Zinc Alloy Connectors: Features rugged silver-plated pins and a self-locking design that grips devices firmly to prevent accidental disconnects. Integrated Cable Bar: Includes a rear strain relief bar that supports the pre-wired loom, protecting internal connections from mechanical stress. Universal 1U Format: Fits any standard 19" rack mount. Numbered ports 1-8 for rapid signal routing and management. Professional Rack Installation Mount the 1U aluminum panel into your equipment rack rails. Route the pre-wired XLR pigtails to the rear inputs of your amplifier, mixer, or speaker system. Connect your microphones, instruments, or audio sources into the 8 front-facing female ports. The self-locking connectors will ensure a stable signal even in high-vibration stage environments. Superior Signal Rejection! Our GuerGuo cables are engineered with a dual-shielding design (Foil + Spiral Copper). This specifically targets and neutralizes noise from nearby power sources and wireless devices, making it the top choice for clean audio studios. Technical Specifications Panel Space 1U (Standard 19-Inch Width) Number of Channels 8 x XLR Female (Front) to XLR Male (Rear) Conductor Material 99.9% Oxygen-Free Copper (OFC) Shielding Type Double Layer (Foil + Copper Spiral) Housing Material Heavy-Duty Zinc Alloy / Aluminum Faceplate Connectors 3-Pin Silver Plated, Self-Locking Available Lengths 0.2m / 0.3m / 0.5m / 1m / 1.5m / 2m / 2.5m / 3m Application Amps, Mixers, Speakers, Studio Microphones Need a custom cable length?We can provide custom sizing for your specific rack configuration if standard lengths don't fit. Message us on WhatsApp Frequently Asked Questions How do you measure the cable length? The total length of the product includes the XLR connectors themselves, not just the exposed cable portion. Please refer to our length diagram in the Product Highlight section for an exact measurement guide. Will these block noise from power cables in my rack? Yes. Our GuerGuo cables use a combination of Foil and high-density Inner Copper Spiral shielding. This double-layer approach is specifically designed to prevent electromagnetic interference (EMI) from noisy gear and power lines. Can I use this for stage lighting (DMX)? While these are high-fidelity audio cables, they use standard 3-pin XLR connections which are physically compatible with many 3-pin DMX devices. However, for critical 5-pin DMX setups, professional DMX-specific cabling is recommended.

Read more less

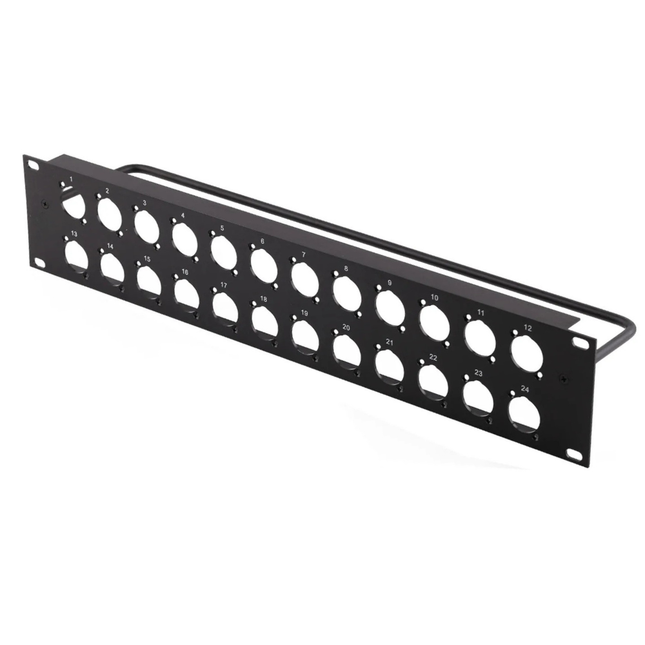

19" Professional 2U 24-Port Aluminum Patch Panel Massive 24-Port Capacity · Brushed Aluminum Alloy · Heavy-Duty Strain Relief Transform your rack into a high-performance signal center with our 2U 24D Patch Panel. Engineered for the most demanding pro-audio and lighting environments, this panel offers a staggering twenty-four standard D-holes in a spacious 2U format. This double-row staggered layout ensures that even with 24 connectors installed, you maintain easy access to release latches and cables. The premium brushed aluminum faceplate delivers a professional VIP look, while the integrated iron rear strain relief bar provides the critical structural support needed to manage the significant weight of 24 thick signal or power cables. Key Benefits Massive 24-Port Hub: The ultimate high-density solution, allowing for 24 XLR, SpeakON, or RJ45 connections in just two units of rack space. Pro-Grade Strain Relief: The integrated iron cable bar is essential for supporting 24 heavy looms, preventing mechanical stress on your electrical connections. Brushed Aluminum Alloy: Built from premium aluminum for a lightweight, rigid faceplate with a high-end, scratch-resistant "Quiet Black" finish. Complete 1-24 Numbering: Every port is clearly numbered, ensuring rapid signal identification and eliminating patching errors in complex venue setups. Standard D-Series Holes: Features twenty-four 24mm holes with standard 19mm screw spacing, fitting Neutrik and all major chassis connector brands. Accessible 2U Design: The staggered double-row height allows for much easier connector removal than high-density 1U panels. Professional High-Density Setup Mount twenty-four industry-standard D-Series connectors into the faceplate using M3 hardware. Install the panel into your 19-inch rack rails using four rack screws. Run your large cable loom from the rear and attach to the integrated iron strain relief bar. Use cable ties to secure each wire to the bar, ensuring zero mechanical tension on the soldered connector pins. Maximum Capacity, Zero Stress! Wiring 24 ports in 1U is often a logistical nightmare. This 2U staggered version provides the physical room needed to actually plug and unplug your cables, while the iron bar manages the massive weight of a 24-channel loom. Technical Specifications Rack Height 2U Space (approx. 3.5 inches / 88.9mm) Panel Width Standard 19-Inch (483mm Universal Width) Port Capacity 24 x Precision-Cut D-Series Holes Faceplate Material Premium Brushed Aluminum Alloy Support Structure Rugged Iron Rear Strain Relief Bar Port Identification Laser-Numbered 1-24 Compatibility XLR, SpeakON, RJ45, PowerCON D-Series Chassis Packing List 1 x 24-Port 2U Patch Panel + 1 x Strain Relief Bar Planning a large festival or studio signal chain?We offer bulk support and custom connector bundles for large-scale installations. Message us on WhatsApp Frequently Asked Questions How heavy is the panel when fully loaded? Twenty-four cables can create significant weight. While the aluminum faceplate is lightweight, the included iron strain relief bar is designed to take that mechanical load, ensuring your rack rails and connector pins are not damaged by the weight of the loom. Will SpeakON and XLR cables fit next to each other? Yes. The staggered double-row design is specifically intended to provide clearance for the wider heads of SpeakON connectors, ensuring they can be used alongside standard XLR connectors without overcrowding. Are the holes standard D-Series size? Absolutely. Every hole is precision-cut to the universal 24mm "D-Series" diameter. This fits chassis connectors from Neutrik, Amphenol, Seetronic, and other major hardware brands.

Read more less

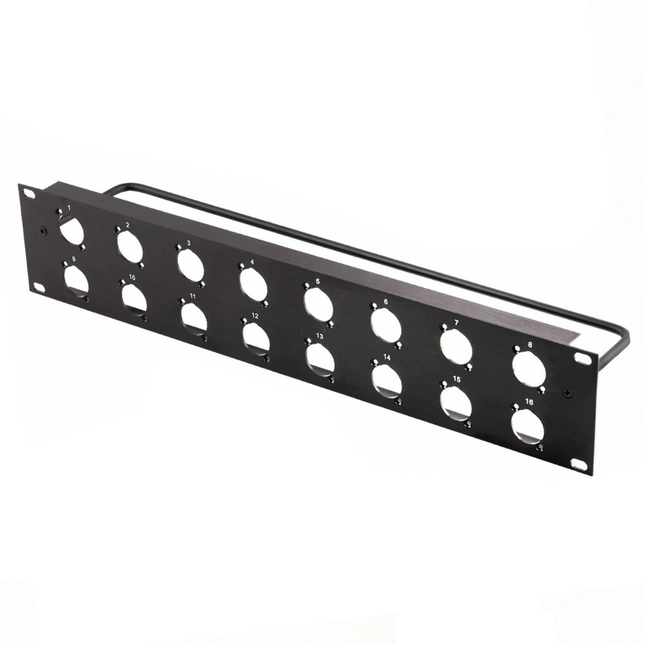

19" Professional 2U 16-Port Aluminum Patch Panel Double-Row High Density · Brushed Aluminum Alloy · Essential Strain Relief Bring professional-grade organization to your signal chain with the 2U 16-Port Aluminum Patch Panel. Featuring a staggered double-row design, this 2U panel provides easier access for plugging and unplugging 16 industry-standard D-size connectors compared to cramped 1U versions. The premium brushed aluminum faceplate offers a sophisticated VIP aesthetic, while the integrated heavy-duty rear strain relief bar ensures that heavy cable looms never pull on your internal connections. Perfect for large-scale nightclub touring racks, festivals, and permanent studio installs, this panel is the ultimate signal hub for serious pro-audio and lighting setups. Key Benefits Superior 2U Access: The 3.5-inch vertical height provides better physical clearance for managing 16 connectors simultaneously without cramping. Iron Strain Relief Bar: Rugged rear support bar takes the full weight of your cable looms, protecting your solder points and delicate chassis pins. Brushed Aluminum Alloy: Built from premium aluminum for a lightweight yet rigid faceplate with a sleek, high-end "Quiet Black" finish. Numbered Identification: Ports are laser-numbered 1 through 16, allowing for rapid patching and error-free signal routing in high-pressure environments. Universal D-Series Fit: Precisely cut 24mm holes with standard screw spacing for XLR, SpeakON, PowerCON, RJ45, and HDMI feedthroughs. Tour-Ready Durability: Scratch-resistant textured finish is designed to hide road wear and maintain a clean appearance over years of use. Professional Signal Layout Install sixteen standard D-Series connectors into the faceplate holes using standard M3 mounting hardware. Mount the panel into your 19-inch rack furniture or flight case using four standard rack screws. Route your internal patch cables through the rear strain relief bar. Use heavy-duty cable ties to secure your looms to the bar, ensuring all physical tension is off the solder joints. The Ultimate Touring Upgrade! While 1U panels save space, 2U panels save your connectors. The extra vertical space allows for easier finger access to release SpeakON or XLR latches, making teardown faster and more reliable. Technical Specifications Rack Height 2U Space (approx. 3.5 inches / 88.9mm) Panel Width Standard 19-Inch (483mm Universal) Port Capacity 16 x High-Density D-Series Holes Faceplate Material Premium Brushed Aluminum Alloy Support Hardware Rugged Iron Rear Strain Relief Bar Port Identification Laser-Numbered 1-16 Compatibility XLR, SpeakON, PowerCON, RJ45, HDMI D-Series Packing List 1 x 16-Port 2U Patch Panel + 1 x Strain Relief Bar Planning a large-scale nightclub or stage rig?We offer bulk support and custom connector bundles for professional venue installations. Message us on WhatsApp Frequently Asked Questions Why choose 2U over 1U for 16 ports? User experience. While 1U saves space, a 16-port 1U panel leaves almost no finger room to push the release buttons on SpeakON or locked XLR cables. A 2U panel provides ample vertical space, making it much easier to use in high-pressure stage environments. Does it fit standard D-size connectors? Yes. The holes are precision-cut 24mm circles, which is the universal standard for "D-Series" chassis connectors from major manufacturers (Neutrik, Amphenol, etc.). Is the cable bar strong enough for heavy wiring? Absolutely. The support frame is made from rugged iron, designed to take the mechanical load of sixteen heavy audio cables so your internal electrical connections stay safe and tension-free.

Read more less

1U 12-Port Aluminum D-Series Patch Panel Brushed Aluminum Alloy · Rear Cable Strain Relief Bar · 12 Numbered Ports Upgrade your rack with the Professional 1U 12D Patch Panel, the ideal middle-ground solution for signal management. Featuring twelve standard 24mm D-holes, this panel offers higher density than 8-port models while maintaining more space for easy plugging than 16-port versions. Built with a premium brushed aluminum faceplate and a rugged rear strain relief bar, it is designed to handle the rigors of touring and permanent nightclub installations. The integrated bar effectively manages cable weight, protecting your solder joints and internal connections from the tension of heavy XLR, SpeakON, or PowerCON looms. Key Benefits Balanced 12-Port Capacity: Provides ample connectivity for small-to-mid sized rigs without the tight spacing of 16-port panels. Heavy-Duty Strain Relief: The integrated iron cable holder bar eliminates connector stress, ensuring reliable signal flow night after night. Brushed Aluminum Alloy: Features a high-grade brushed finish that delivers a clean, modern VIP look to your equipment booth or studio. Laser-Numbered Ports: Numbered 1 through 12 for instant signal identification and error-free patching in dark venue environments. Precision D-Series Sizing: Standard 24mm holes with 19mm screw spacing fit all universal XLR, SpeakON, and PowerCON connectors. Touring Grade Durability: Scratch-resistant black coating is designed to withstand the wear and tear of frequent setup and teardown. Professional Patching Guide Install your twelve D-Series chassis connectors into the panel using standard mounting hardware. Fix the panel into your 19-inch rack rails using four standard rack screws. Route your cables from the rear and secure them to the iron strain relief bar using cable ties. Ensure the wires have a slight slack before the bar to prevent any direct tension on the connector solder points. The Pro-Audio Sweet Spot! Twelve ports provide enough capacity for a complete stage setup (L/R Out, Sub Out, Monitors, and Inputs) while leaving enough room between ports for easy connector release. Technical Specifications Rack Space 1U (Standard 19-Inch Width) Port Capacity 12 x Standard D-Series Holes Hole Diameter 24.0mm Precision Fit Faceplate Material Premium Brushed Aluminum Alloy Cable Support Iron Rear Strain Relief Bar Port Identification Laser-Etched Numbers 1-12 Connector Compatibility XLR, SpeakON, PowerCON, RJ45 D-Series Packing List 1 x 12-Port Patch Panel + 1 x Strain Relief Bar Planning a large studio or club installation?We offer custom pricing and bulk support for professional venue setups. Message us on WhatsApp Frequently Asked Questions Does this panel fit standard XLR connectors? Yes. The holes are standard 24mm "D-Series" diameter. This is the universal sizing for all major brands of XLR, SpeakON, RJ45, and PowerCON chassis connectors. Is the cable holder bar sturdy enough for 12 thick cables? Absolutely. The support bar is made from rugged iron, providing the structural strength needed to support 12 thick audio or power cables without bending, making it ideal for mobile racks and flight cases. Are the connector mounting screws included? The panel includes the hardware to secure the rear strain relief bar to the faceplate. Connector screws (M3 size) are typically provided with the connectors themselves, as different connector brands may require different lengths.

Read more less

1U 8-Port D-Series Patch Panel Aluminum Faceplate · Integrated Strain Relief Bar · Numbered Ports Streamline your signal management with the Professional 1U 8D Patch Panel. Designed specifically for standard D-Series connectors (XLR, SpeakON, RJ45), this panel features a high-grade brushed aluminum faceplate for a sleek, road-ready look. The integrated steel strain relief bar (cable holder) on the rear eliminates tension on your solder joints and connectors, ensuring long-term reliability for your stage rack or studio furniture. With numbered ports for rapid identification, it's the perfect solution for organized input/output bays in high-performance nightclub and touring environments. Key Benefits Premium Aluminum Build: Crafted from lightweight yet rigid brushed aluminum, providing a durable and high-end aesthetic for your equipment rack. Strain Relief Support: The integrated 93mm depth cable holder bar supports your wiring, preventing accidental pulls and connector fatigue. Rapid Identification: Each port is clearly numbered 1-8, allowing for faster troubleshooting and organized signal patching during live shows. Universal 1U Standard: 483mm width fits all 19-inch racks. Occupies only 1U of vertical space while offering 8 high-density ports. D-Series Compatibility: Pre-punched for all industry-standard "D-Size" chassis connectors including XLR, TRS, HDMI, and PowerCON. Scratch-Resistant Finish: The black brushed texture is specifically treated to resist marks, road wear, and scratches during transport. Professional Patching Guide Mount your D-Series connectors into the panel using standard mounting hardware. Install the panel into your 19-inch rack rails. Run your internal cables through the rear strain relief bar. Use cable ties to secure your wiring to the bar, ensuring no direct pull on the connector pins. Protect Your Connections! The integrated 93mm deep strain relief bar is a must-have for touring rigs. It takes the weight of heavy XLR or Speakon cables off the chassis connectors, drastically reducing the risk of solder failure during movement. Technical Specifications Rack Height 1U Space (44mm High) Panel Width Standard 19-Inch (483mm Wide) Depth with Bar 93mm (Total Depth) Faceplate Material Premium Brushed Aluminum Connector Capacity 8 x D-Series (XLR, SpeakON, RJ45, etc.) Port Identification Clearly Numbered 1-8 Finish Textured Black (Scratch Resistant) Packing List 1 x 8-Port Patch Panel + 1 x Strain Relief Bar Configuring a full patch bay?We offer bulk support and matching connectors for large installations. Message us on WhatsApp Frequently Asked Questions Which connectors fit this panel? This panel is designed for industry-standard "D-Size" chassis connectors. This includes standard XLR male/female, SpeakON (2-pole and 4-pole), RJ45 feedthroughs, HDMI feedthroughs, and PowerCON connectors. Is the cable holder bar removable? Yes, the strain relief bar is attached via screws. If your rack space is extremely shallow, you can remove it, though we highly recommend keeping it for professional cable management and signal protection. Does it come with mounting hardware for the connectors? The panel includes the hardware to attach the strain relief bar. Connector mounting screws (typically M3 or similar) are usually supplied with the connectors themselves, but we recommend using standard chassis mounting hardware for the best fit.
