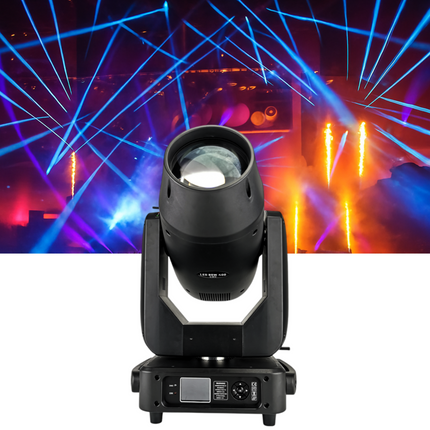

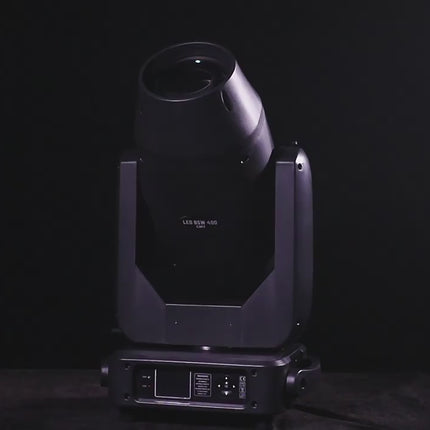

ACS MB-400W Moving Head Beam Light
CMY 3IN1 LED · 540° Pan & 270° Tilt · Double Prism · LCD Touch Control
The ACS MB-400W is a professional-grade 400W CMY moving head beam light, built for live events, stage shows, and clubs. Delivering an impressive 580,000 lm at 5 meters and a color temperature up to 8000K, it provides powerful, precise, and flexible lighting effects with 16-bit scanning for smooth movement.
Packed with features like 12 gobos, fast multi-mode strobe, double independent prisms, and a user-friendly 2.8-inch LCD touch screen, it’s your all-in-one beam light solution for dynamic and reliable performances.
Key Features ▼
- ✅ 400W CMY LED: 50,000-hour lifespan with 8000K color temp
- ✅ Pan/Tilt: 540° pan & 270° tilt with 16-bit precision scanning
- ✅ Double Prism: 6+8 facet, rotates independently for stunning effects
- ✅ 12 Fixed Gobos: Includes white light, multi-mode strobe, synchronization
- ✅ Smart Control: 2.8" LCD touch screen, Chinese & English menu, reverse display
Technical Specifications
| Attribute |
Details |
| Voltage |
AC110V–240V, 50–60Hz |
| Light Source |
400W LED, CMY+CTO color mixing |
| Lumen Output |
580,000 lm @ 5m |
| Source Life |
50,000 hours |
| Pan / Tilt |
540° / 270° with 16-bit electronic correction |
| Prism |
6+8 facet, independent rotation |
| Gobos |
12 fixed patterns + white light |
| Strobe |
0–30 times/sec, adjustable multi-strobe |
| Control Modes |
DMX512, Master-Slave, Sound, Auto |
| Display |
2.8" LCD touch + buttons |
| Weight |
22.5 kg |
| Size |
38 × 27 × 65 cm |
How To Use
- Do not place in a humid, leaking area or where temperature exceeds 40°C.
- Ensure stable placement; do not install where it may loosen or vibrate.
- Professional maintenance is recommended to avoid electric risks.
- Keep power supply voltage within ±10% to maintain light efficiency.
- Always let the lamp fully cool after power-off before restarting.
Maintenance
- Keep the unit dry and avoid humid environments.
- Use indirectly when possible to extend lamp life.
- Ensure good ventilation; clean fan and lens regularly.
- Do not wipe housing with organic solvents to avoid damage.
Q&A
Q: Can the light work without a DMX controller?
A: Yes! It supports self-propelled, sound-active, auto and manual modes.
Q: What if it breaks during warranty?
A: Contact us with photos/videos; we’ll guide you step-by-step and send free parts if needed (freight applies).
Q: What happens after warranty expires?
A: Lifetime technical support is provided; you only cover cost of parts and shipping.
