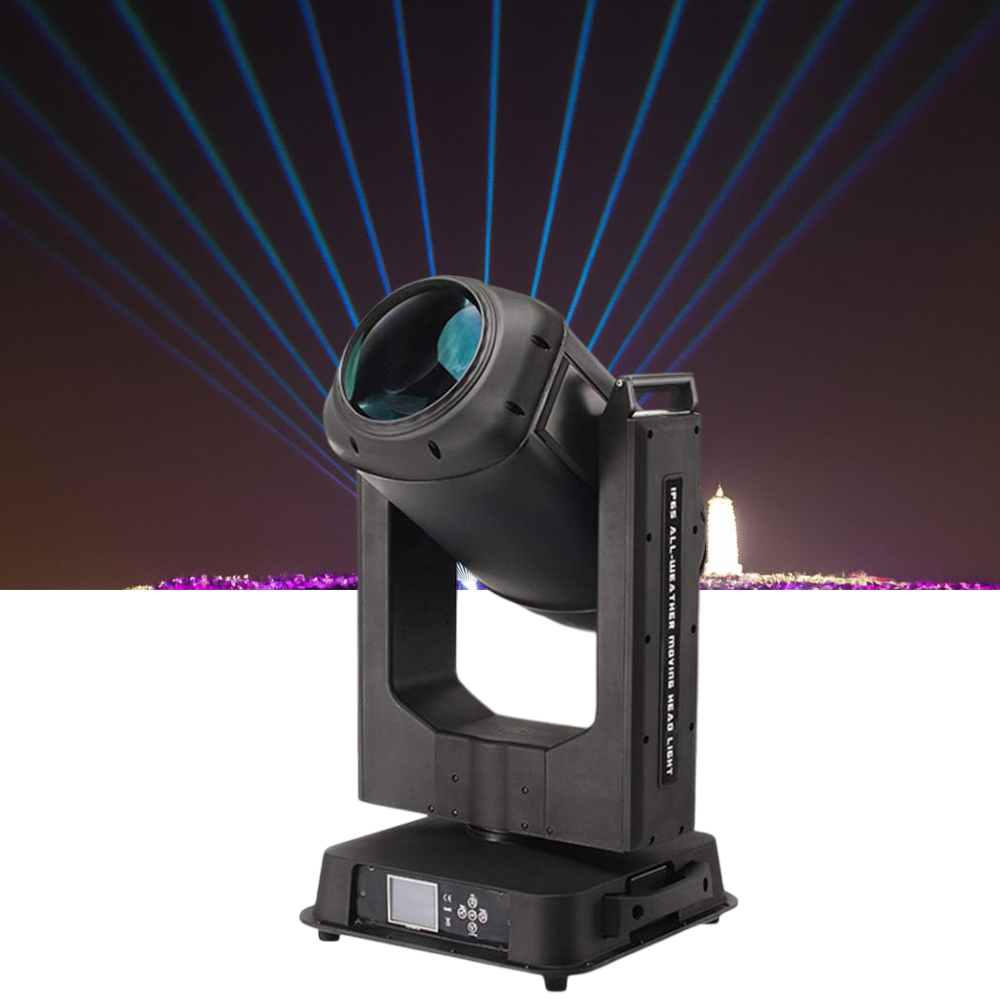

MB-600W Outdoor Moving Head Beam Light
600W High Brightness · Outdoor Waterproof · DMX512 Control · Prism & Color Effects

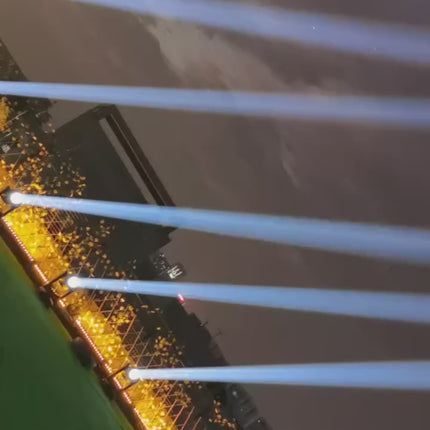

The MB-600W Outdoor Moving Head Beam Light is designed for breathtaking city skylines, landmark lighting, stadium concerts, or grand outdoor festivals. Its high-brightness 600W lamp delivers impressive beams up to 1000m with precision optics, multilayer coated lens, and advanced prism, gobo, and color effects.
Equipped with imported high-temperature color filters (11 colors + open, half color & rainbow effect), a fixed gobo wheel with 14 metal gobos, an 8-facet prism wheel, and an additional rainbow prism for multi-beam creativity. The unit’s robust build, IP65 waterproof rating, high-quality cooling system, and flexible pan/tilt make it ideal for large-scale outdoor applications.
Key Features ▼
- ✅ 600W high brightness beam with up to 1000m projection
- ✅ Color Wheel: 11 colors + open, half color, rainbow effect
- ✅ Fixed Gobo Wheel: 14 metal gobos + open, bidirectional shaking
- ✅ 8-facet Prism Wheel & Rainbow Prism for multiple beams
- ✅ High-precision pan (540°) & tilt (270°), 8/16 bit adjustment
- ✅ DMX512 control with RDM, easy remote address setup
- ✅ IP65 waterproof, premium cooling fans, robust fixture material
- ✅ Perfect for concerts, city skylines, outdoor landmarks & festivals
Technical Specifications
| Parameter |
Description |
| Model Number |
IM-WPB600 |
| Input Voltage |
AC90–240V, 50/60Hz |
| Light Source |
600W Lamp |
| Luminous Flux |
660000 lumen @ 10m |
| Beam Angle |
1.2° |
| Projection Distance |
Up to 1000m |
| Color Temperature |
7500K |
| Control Mode |
DMX512 with RDM |
| Pan/Tilt |
Pan: 540°, Tilt: 270°, 8/16 Bit adjustment |
| IP Grade |
IP65 |
| Working Temp |
Outdoor use with advanced cooling system |
| Weight |
N.W.: 72.5 lbs (32.9 kg) / G.W.: 83.6 lbs (37.9 kg) |
| Product Size |
L21.7 × W16.5 × H32.3 in (550 × 420 × 820 mm) |
| Carton Size |
L22.4 × W19.3 × H35.8 in (570 × 490 × 910 mm) |
Package List
1 × Waterproof 600W Beam Moving Light
1 × Waterproof Power Cable
1 × 3-pin Waterproof Extension Signal Cable (3m)
1 × 3-pin Switching Signal Cable (1m) (not every match)
1 × English User Manual
FAQs ▼
-
Q: Where can I use this 600W beam?
A: Perfect for city skylines, landmark lighting, stadium shows, and outdoor festivals.
-
Q: Is the fixture fully waterproof?
A: Yes, IP65-rated with high-grade material and reliable sealing.
-
Q: Can I control multiple heads together?
A: Yes, use multiple beams with DMX512 control for large synchronized effects.
