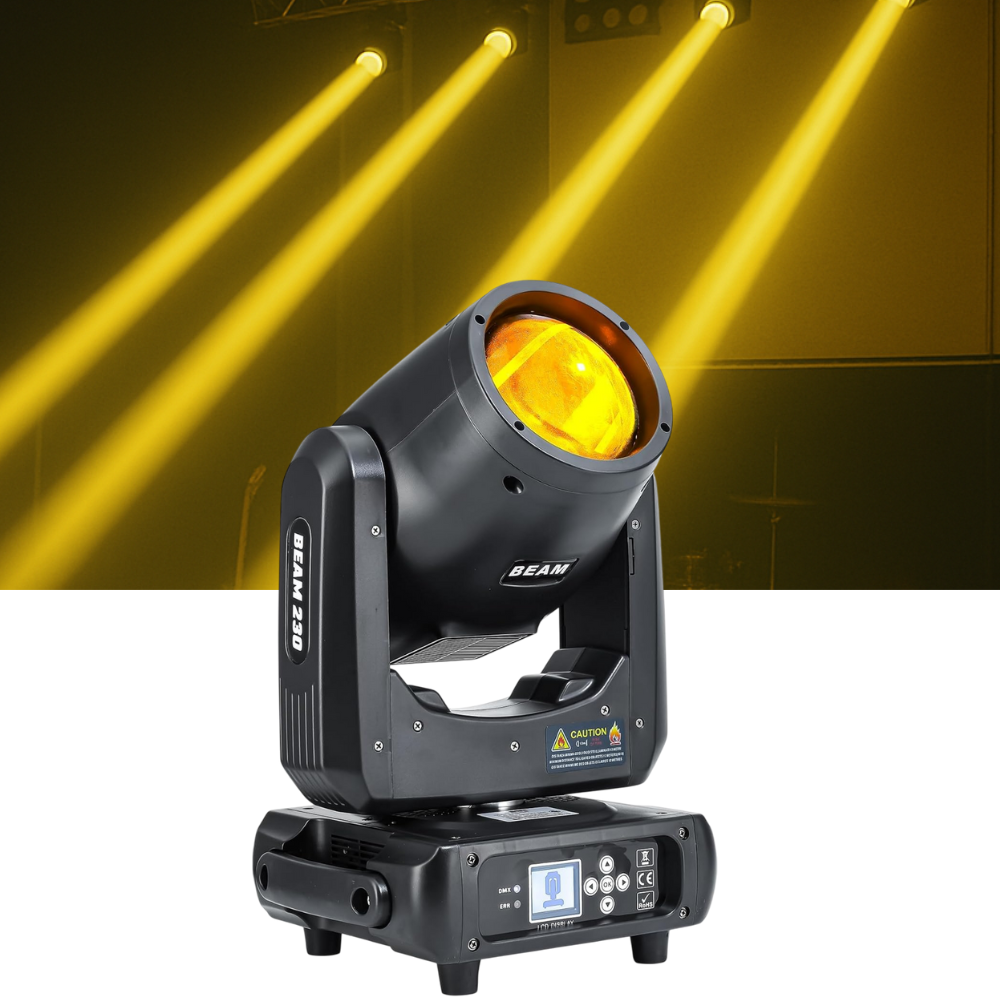

ACS MB-67 230W Moving Head Beam Light
DMX512 · 540° Pan & 250° Tilt · 8+16+24 Honeycomb Prism
The ACS MB-67 is a precision-engineered 230W moving head beam light with powerful optical clarity, wide-angle scanning, and customizable effects. Built for stages, events, and professional lighting setups, it offers 540° horizontal and 250° vertical movement with 16-bit electronic correction.
Equipped with a 350W power system and DMX512/Master-Slave/Auto/Sound-activated modes, this fixture combines robust beam performance and flexibility. It also includes rich gobo and color wheels, fog control, and fast-response strobe effects.
Key Features ▼
- ✅ Powerful 230W 7R Lamp: Delivers 59760 LUX at 25m
- ✅ Wide-Angle Movement: 540° pan and 250° tilt with 16-bit scanning
- ✅ 8+16+24 Honeycomb Prism: For dazzling lighting patterns
- ✅ Custom Effects: 14 colors + 17 gobos, fog and dimming controls
- ✅ Multi-Mode Control: DMX512, Auto, Sound Active, and Manual
Technical Specifications
| Attribute |
Details |
| Voltage |
AC110-240V, 50/60Hz |
| Lamp |
230W 7R |
| Light Power |
350W |
| Color Temperature |
8500K |
| Light Output |
25m / 59760 LUX |
| Control Modes |
DMX512 / Master / Auto / Sound |
| Channels |
16CH |
| Colors |
14 Colors + White |
| Gobos |
17 Patterns + White |
| Prism |
8+16+24 Honeycomb |
| Dimming |
0–100% Linear |
| Beam Angle |
3 Degrees |
| Movement |
Pan: 540°, Tilt: 250° |
| Size |
53 × 41 × 45 cm |
| Weight |
17.5 kg |
How To Use
The user manual is included in the packaging. If you didn’t receive one, please leave a message on our website, and our team will get back to you quickly.
Packing List
- ✓ 1 x MB-67 Beam Light
- ✓ 1 x Power Cable
- ✓ 1 x User Manual
Q&A
Q: Can it work without a DMX controller?
A: Yes, you can use auto-run, sound-activated, or manual control modes without a DMX console.
Q: What if the bulb fails during the warranty?
A: Contact us with photos/videos. We’ll send replacement parts and provide guidance.
Q: What happens after warranty expires?
A: We offer lifetime technical support. You cover shipping and parts, we help diagnose and fix.
