TR96103
1.5m / 4.92ft Straight Segment · F23 Triangular Truss · EN-AW 6082 T6
The TR96103 is a 1.5-meter (4.92ft) straight truss segment built for F23 triangular truss systems. Fabricated by certified TUV welders using EN-AW 6082 T6 aluminum, it offers excellent strength and reliability for longer spans in modular structures, lighting grids, and expo booths.
This segment features 35mm OD main tubing and 8mm bracing, with 2mm wall thickness. It includes connecting hardware and integrates seamlessly into your F23 truss system for quick setup and secure assembly.
Key Features ▼
✅ 4.92ft / 1.5m straight truss segment
✅ Overall width: 220mm (8.66")
✅ Outer tubing: 35mm (1.37") OD
✅ Diagonal bracing: 8mm (0.31")
✅ Wall thickness: 2mm (0.078")
✅ Alloy: EN-AW 6082 T6 aluminum
✅ Fabricated by certified TUV welders
✅ Connecting hardware included
✅ Unit weight: 4.2kg / 9.24lb
Need help calculating total span or load rating? Chat with our technical team on WhatsApp for layout assistance and free structural guidance.
TR96104
2m / 6.56ft Straight Segment · F23 Triangular Truss · EN-AW 6082 T6
The TR96104 is a 2-meter (6.56ft) straight truss segment designed for F23 triangular truss systems. Built from EN-AW 6082 T6 aluminum and precision-welded by certified TUV professionals, it offers a strong and lightweight solution for extended spans in exhibition structures, lighting setups, and portable stage designs.
With 35mm OD tubing, 8mm diagonal bracing, and a wall thickness of 2mm, this segment delivers excellent rigidity and compatibility. Comes complete with connecting hardware and integrates seamlessly with all standard F23 components.
Key Features ▼
✅ 6.56ft / 2m straight truss segment
✅ Overall width: 220mm (8.66")
✅ Outer tubing: 35mm (1.37") OD
✅ Diagonal bracing: 8mm (0.31")
✅ Wall thickness: 2mm (0.078")
✅ Alloy: EN-AW 6082 T6 aluminum
✅ Fabricated by certified TUV welders
✅ Connecting hardware included
✅ Unit weight: 5.49kg / 12.10lb
Need help calculating load span or combining with connectors? Chat with our technical team on WhatsApp for instant advice and volume pricing.
TR96105
2.5m / 8.20ft Straight Segment · F23 Triangular Truss · EN-AW 6082 T6
The TR96105 is a 2.5-meter (8.20ft) straight truss segment engineered for the F23 triangular truss system. Constructed from EN-AW 6082 T6 aluminum and fabricated by certified TUV welders, this segment delivers both durability and portability for medium to long-span truss structures.
With 35mm outer tubing, 8mm diagonal bracing, and a 2mm wall thickness, it offers optimal strength-to-weight ratio for mobile productions, exhibition rigs, and lighting setups. Comes with connecting hardware for hassle-free installation.
Key Features ▼
✅ 8.20ft / 2.5m straight truss segment
✅ Overall width: 220mm (8.66")
✅ Outer tubing: 35mm (1.37") OD
✅ Diagonal bracing: 8mm (0.31")
✅ Wall thickness: 2mm (0.078")
✅ Alloy: EN-AW 6082 T6 aluminum
✅ Fabricated by certified TUV welders
✅ Connecting hardware included
✅ Unit weight: 7.0kg / 15.40lb
Looking to configure your next truss span or custom structure? Chat with our technical team on WhatsApp for fast layout advice and factory-direct pricing.
TR96106
3m / 9.84ft Straight Segment · F23 Triangular Truss · EN-AW 6082 T6
The TR96106 is a 3-meter (9.84ft) straight truss segment built for F23 triangular truss systems. Constructed from EN-AW 6082 T6 aluminum and precision-welded by certified TUV professionals, this segment provides outstanding strength for long-span setups such as stage roofs, lighting beams, and exhibition backbones.
With 35mm outer diameter tubing, 8mm diagonal bracing, and a 2mm wall thickness, the TR96106 offers excellent rigidity and compatibility. It comes complete with connecting hardware for easy assembly into existing F23 systems.
Key Features ▼
✅ 9.84ft / 3m straight truss segment
✅ Overall width: 220mm (8.66")
✅ Outer tubing: 35mm (1.37") OD
✅ Diagonal bracing: 8mm (0.31")
✅ Wall thickness: 2mm (0.078")
✅ Alloy: EN-AW
TR96107
3.5m / 11.48ft Straight Segment · F23 Triangular Truss · EN-AW 6082 T6
The TR96107 is a 3.5-meter (11.48ft) straight segment from our F23 triangular truss series. Crafted from high-grade EN-AW 6082 T6 aluminum and welded by TUV-certified professionals, this segment delivers exceptional load-bearing capacity for touring systems, concert lighting, and semi-permanent installations.
With 35mm outer tubing and 8mm bracing, this segment maintains the modular flexibility and strength the F23 system is known for. It ships with full connecting hardware, ready for use in demanding event builds.
Key Features ▼
✅ 11.48ft / 3.5m straight truss segment
✅ Overall width: 220mm (8.66")
✅ Outer tubing: 35mm (1.37") OD
✅ Diagonal bracing: 8mm (0.31")
✅ Wall thickness: 2mm (0.078")
✅ Made of EN-AW 6082 T6 aluminum
✅ TUV-certified welds for structural safety
✅ Includes connection accessories
✅ Unit weight: 9.48kg / 20.90lb
Building a custom truss layout? Talk to our experts on WhatsApp for weight ratings, design consultation, and fast shipping quotes.
TR96108
4m / 13.12ft Straight Segment · F23 Triangular Truss · EN-AW 6082 T6
The TR96108 is the 4-meter (13.12ft) straight segment of the F23 truss system, engineered for professional use in stage structures, lighting rigs, and modular systems. Built from premium EN-AW 6082 T6 aluminum and welded by certified TUV technicians, it offers both safety and structural reliability.
Designed with a compact 220mm width, this truss delivers exceptional strength-to-weight ratio. It includes all connection hardware, making it ready for rapid deployment in mobile or semi-permanent event environments.
Key Features ▼
✅ 13.12ft / 4m straight truss segment
✅ Overall width: 220mm (8.66")
✅ Outer tubing: 35mm (1.37") OD
✅ Diagonal bracing: 8mm (0.31")
✅ Wall thickness: 2mm (0.078")
✅ Made of EN-AW 6082 T6 aluminum
✅ TUV-certified welds for maximum safety
✅ Includes connection accessories
✅ Unit weight: 10.28kg / 22.66lb
Need help with rigging plans or bulk quotes? Chat with our team on WhatsApp now — we respond fast!
TRUSS/SYSTEM
F23 Goal Post Style Portable Truss System · 220mm · Modular Expandable
The TRUSS/SYSTEM is a professional-grade F23 goal post truss kit, perfect for DJs, trade shows, exhibitions, and entrance displays. Built with EN-AW 6082 T6 aluminum and 220mm outer diameter truss, this freestanding structure combines a clean modern look with superior load capacity—supporting up to 400lbs evenly distributed.
Designed for fast setup and easy transport, the system features sturdy base plates and modular expandability. You can increase both width and height by adding F23 series truss segments, allowing it to grow with your event needs.
Key Features ▼
✅ F23 Goal Post Style Truss System
✅ Exterior Dimensions: 8.25' W x 7.81' H
✅ Interior Clearance: 6.96' W x 7.10' H
✅ Truss Size: 220mm (8 5/8") OD
✅ Main Chords: 35mm OD x 1/3" bracing
✅ Base Dimensions: 10.5" W x 46.25" L x 0.75" H
✅ Load Capacity: 400lbs evenly distributed
✅ Expandable with F23 truss segments
✅ Unit weight: 70lbs
Need a larger span or custom branding? Chat with our technical team on WhatsApp to get personalized layout suggestions and bulk pricing.
ACS TUBE .5 F24 – 0.5m Truss Segment
35mm Tubes · EN-AW 6082 T6 Aluminum · Lightweight Segment
The ACS TUBE .5 F24 is a straight truss tube segment with a total length of 0.5 meters (1.64 ft). Built from high-grade EN-AW 6082 T6 aluminum alloy, this tube is designed to provide excellent strength-to-weight performance for compact truss systems and custom rigging solutions.
With 35mm outer diameter tubing and 2mm wall thickness, this segment is ideal for lightweight stage designs, portable backdrops, and tight installation spaces. It pairs perfectly with other F24 system components.
Key Features ▼
✅ 0.5m (1.64ft) straight tube segment
✅ 35mm outer tube diameter with 2mm wall thickness
✅ Constructed with EN-AW 6082 T6 aluminum alloy
✅ Lightweight: 0.45kg / 1lb
✅ Compatible with F24 truss systems
✅ Ideal for small-stage frames, exhibition booths, and custom builds
Technical Specifications
Item
Specification
Overall Length
0.5m / 1.64 ft
Tube Diameter
35mm
Wall Thickness
2mm
Material
EN-AW 6082 T6 Aluminum
Weight
0.45kg / 1lb
Important Notice
This truss tube is designed for modular compatibility within the F24 truss system. Custom lengths or accessories available upon request. Contact us on WhatsApp for quotes or configurations.
ACS TUBE 2.0 F24 – 2m Straight Truss Tube
Single Tube · F24 Compatible · Lightweight Aluminum Alloy
The ACS TUBE 2.0 F24 is a 2-meter (6.56ft) straight aluminum pipe crafted for modular truss applications, support structures, and custom framing. Built from EN-AW 6082 T6 material with a Ø35mm diameter and 2mm wall thickness, it delivers strength and precision while remaining lightweight and easy to handle.
This segment is compatible with standard F24 systems and integrates seamlessly with stage trusses and lighting rig configurations. Ideal for both indoor and outdoor events.
Key Features ▼
✅ 6.56ft / 2m straight tube segment
✅ Ø35×2mm aluminum tubing
✅ Lightweight yet strong — only 1.14kg / 2lb
✅ High-quality EN-AW 6082 T6 alloy
✅ Compatible with F24 truss systems
✅ Ideal for extensions, custom builds, and bracing
Technical Specifications
Item
Specification
Overall Length
6.56ft / 2m
Tube Diameter
Ø35mm
Wall Thickness
2mm
Material
EN-AW 6082 T6 Aluminum
Unit Weight
1.14kg / 2lb
Important Notice
This straight tube is part of the F24 modular truss system. For connector options, elbows, or custom assembly kits, contact us via WhatsApp.

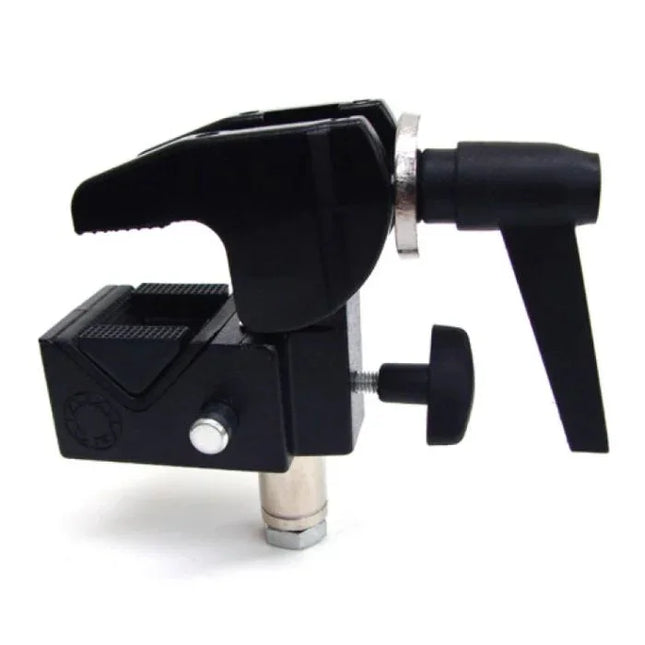

Ultra Clamp - Extra Heavy Duty
Compatibility
F23/F24/F31-F34 & DT44P Truss Systems
Max Load Capacity
15 kg / 33 lbs
Tube Size Range
10-50mm
Attachment Type
M10×25mm Snap-on
Profile Width
44mm
Surface Finish
Matte Black Powder Coat
Unit Weight
0.50 kg / 1.10 lbs
Case Quantity
25 Pieces per Carton
Manufacturer: Be Cool EventCompliance: IP44 Weather Resistance Certified
