36 Cue Wireless Remote Firing System

Description

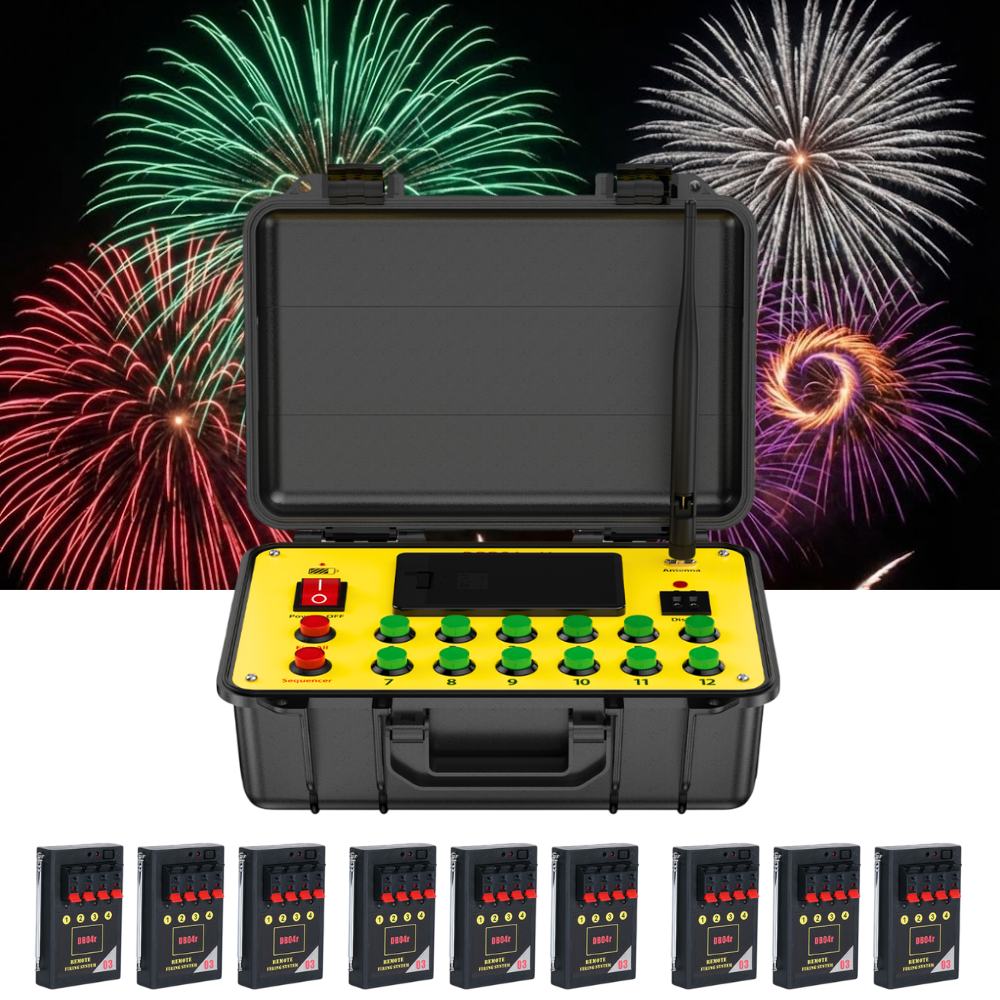

ACS 36 Cue Wireless Remote Firing System

500M Range · 1 Transmitter + 9 Receivers · Professional Fireworks Control

Take complete control of your pyrotechnic displays with the ACS 36 Cue Wireless Firing System. This professional-grade set includes one rugged DBR01 Transmitter encased in a protective hard shell and nine separate DB04r Receivers, giving you a total of 36 independent firing cues. With an impressive 500-meter range and advanced "District" grouping capabilities, this system allows you to execute complex sequential fires, step firing, and massive "fire all" finales with safety and precision.

Key Benefits

500 Meter Range: Maintain a safe distance while controlling your show. The powerful antenna system ensures reliable signal transmission up to 500m.
36 Firing Cues: With 9 separate receivers each holding 4 cues, you can spread your fireworks across a wide stage front for a truly professional effect.
Rugged Hard Case: The main transmitter is built into a heavy-duty, weather-resistant hard case, protecting your controls from the elements.
Advanced Grouping: Use the "District" dial to assign receivers to specific groups (00-99), allowing for complex zoning and sequential firing patterns.
Connectivity Test: Each receiver features a test indicator lamp that turns GREEN when a good connection with the igniter is established, preventing misfires.

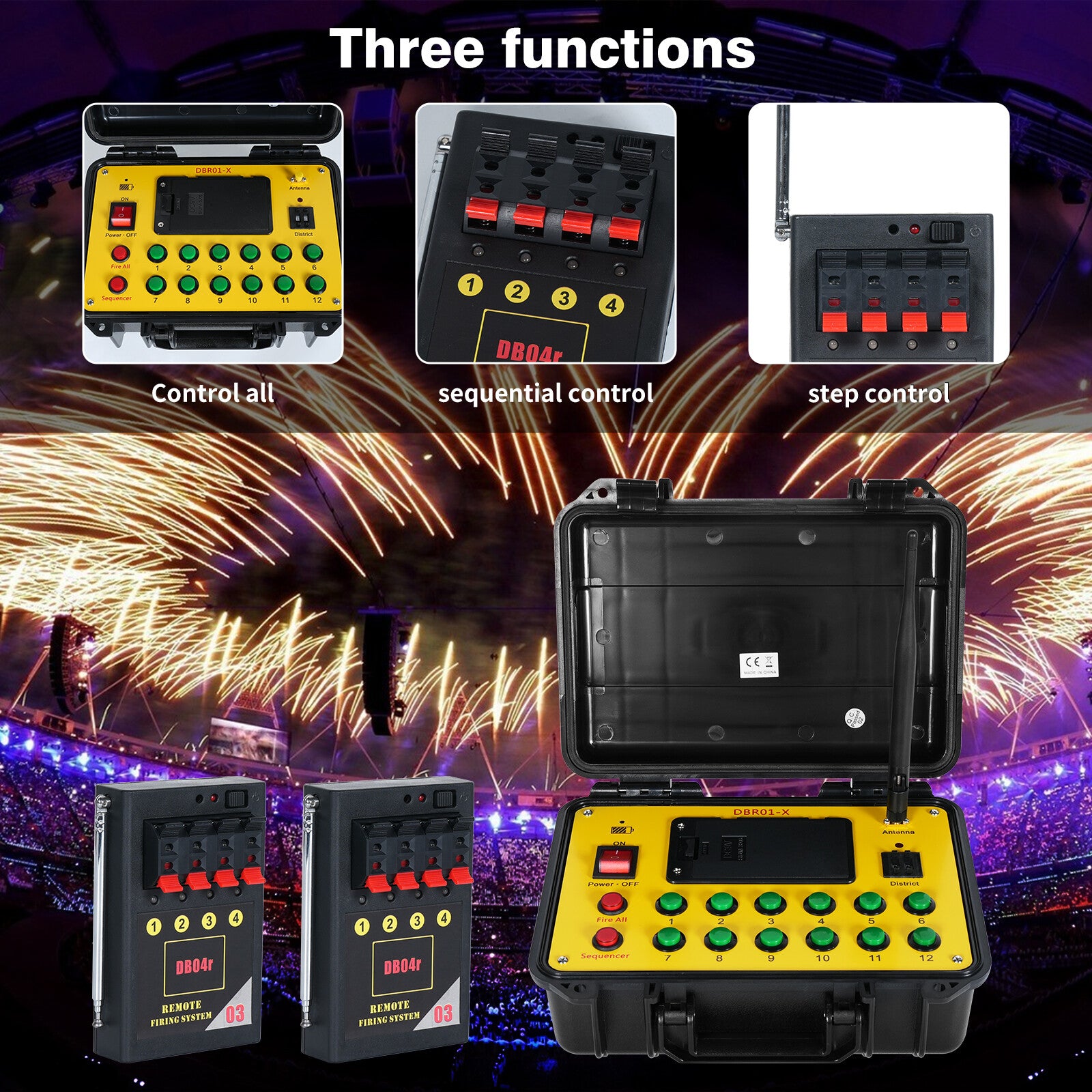

3 Firing Modes: Choose between "Control All" (fire everything), "Sequential" (automatic sequence), and "Step Control" (manual one-by-one).

Product Details

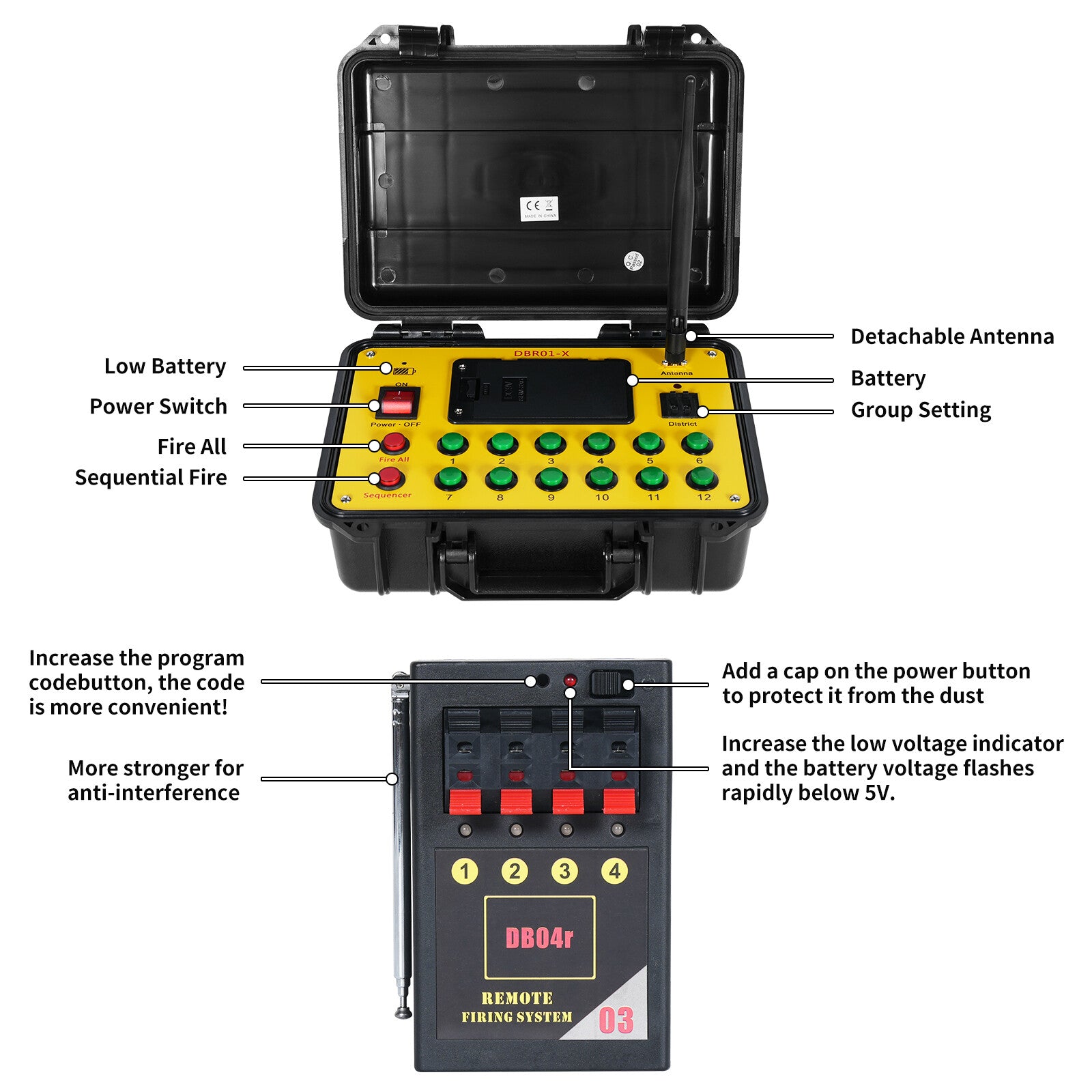

36 Cue Wireless Remote Firing System Complete Kit DBR01 Transmitter Control Group Settings Setting Group Fire by Transmitter Steps Receiver Parameters and Instructions Wireless Firing System Three Functions Overview DBR01 Transmitter Parameters Receiver Parameters and Setup

Setup & Operation

  1. Install batteries: 6x AA for the Transmitter, and 4x AA for each Receiver.
  2. Connect your electric igniters (sold separately) to the red/black clips on the receivers.
  3. Test Connectivity: Turn on the receiver. The indicator light should turn GREEN, confirming the igniter is connected properly.
  4. Set Groups: Adjust the "District" number on the transmitter. For example, if set to "01", it will control all receivers also set to Group 01.
  5. Fire: Extend the antenna and press the corresponding buttons on the transmitter to launch your display.

Required: Electric Igniters Sold Separately.
This system requires electric connecting wires (igniters) to function. They are not included in the box.

Click here to purchase the compatible Electric Connecting Wires (100 Pcs).

Technical Specifications

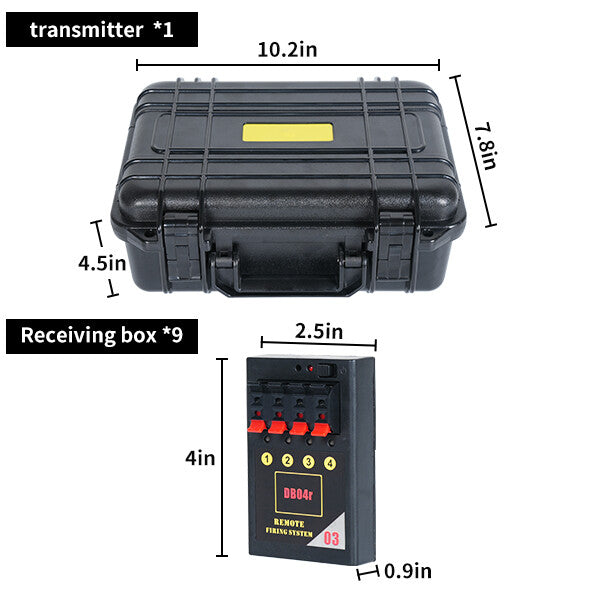

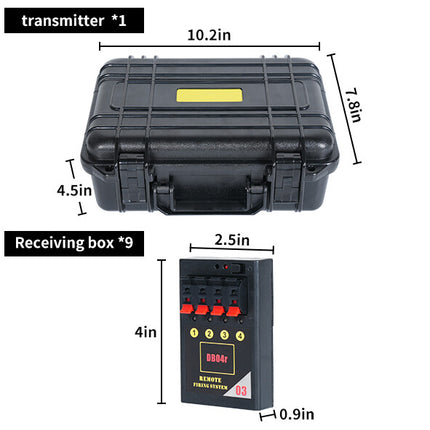

Transmitter Model DBR01 (with Hard Case)
Receiver Model DB04r (9 Units Included)
Total Cues 36 Channels (9 x 4)
Remote Range Approx. 500 Meters
Transmitter Power 6 x AA Batteries (Not Included)
Receiver Power 4 x AA Batteries Each (Not Included)
Functions Sequential, Step, Fire All, Group Control
Packing List 1 Controller, 9 Receivers, 1 Antenna, Manual

Need technical support for your show?
Our team can assist with grouping configurations and setup advice.

Message us on WhatsApp

Frequently Asked Questions

Are batteries included?

No. Due to shipping regulations, batteries are not included. You will need standard AA batteries: 6 for the main transmitter and 4 for each receiver box.

How do I avoid signal interference?

Wireless microphones or radios can sometimes interfere. We recommend testing the system before the event. Also, keep at least 0.5 meters of distance between two receiver boxes to ensure clear signal reception.

What connects the fireworks to the box?

You need "Electric Connecting Wire" (Igniters). These have a match head on one end and bare wires on the other. You insert the bare wires into the red/black clips on the receiver. Please purchase these separately via the link above.

36 Cue Wireless Remote Firing System

Product form
$398.00 Final price: $199.00, Save 50%

In stock - Shipped in 24 hours

    "Awesome"
    4.5/5 on
    • Direct from the Factory
    • Professional Technical Support
    • Customizable Solutions Available
        Why choose ACS?

      1. Factory-Direct Pricing

      We cut out the middlemen so you get industrial-grade event gear at true factory prices — high quality, lower cost.

      2. Lifetime Support

      Our commitment doesn’t end after purchase. We provide lifetime technical support to help you get the most from your equipment, anytime you need it.

      3. Free & Reliable Global Delivery

      We ship worldwide with trusted carriers like DHL Express — always free, always trackable, and always reliable.

        Customer service

      We are listening to you from Monday to Saturday from 10 a.m. to 7 p.m.

      You can contact us via our contact form:

      Send us a message!

      Description

      ACS 36 Cue Wireless Remote Firing System

      500M Range · 1 Transmitter + 9 Receivers · Professional Fireworks Control

      Take complete control of your pyrotechnic displays with the ACS 36 Cue Wireless Firing System. This professional-grade set includes one rugged DBR01 Transmitter encased in a protective hard shell and nine separate DB04r Receivers, giving you a total of 36 independent firing cues. With an impressive 500-meter range and advanced "District" grouping capabilities, this system allows you to execute complex sequential fires, step firing, and massive "fire all" finales with safety and precision.

      Key Benefits

      500 Meter Range: Maintain a safe distance while controlling your show. The powerful antenna system ensures reliable signal transmission up to 500m.
      36 Firing Cues: With 9 separate receivers each holding 4 cues, you can spread your fireworks across a wide stage front for a truly professional effect.
      Rugged Hard Case: The main transmitter is built into a heavy-duty, weather-resistant hard case, protecting your controls from the elements.
      Advanced Grouping: Use the "District" dial to assign receivers to specific groups (00-99), allowing for complex zoning and sequential firing patterns.
      Connectivity Test: Each receiver features a test indicator lamp that turns GREEN when a good connection with the igniter is established, preventing misfires.
      3 Firing Modes: Choose between "Control All" (fire everything), "Sequential" (automatic sequence), and "Step Control" (manual one-by-one).

      Product Details

      36 Cue Wireless Remote Firing System Complete Kit DBR01 Transmitter Control Group Settings Setting Group Fire by Transmitter Steps Receiver Parameters and Instructions Wireless Firing System Three Functions Overview DBR01 Transmitter Parameters Receiver Parameters and Setup

      Setup & Operation

      1. Install batteries: 6x AA for the Transmitter, and 4x AA for each Receiver.
      2. Connect your electric igniters (sold separately) to the red/black clips on the receivers.
      3. Test Connectivity: Turn on the receiver. The indicator light should turn GREEN, confirming the igniter is connected properly.
      4. Set Groups: Adjust the "District" number on the transmitter. For example, if set to "01", it will control all receivers also set to Group 01.
      5. Fire: Extend the antenna and press the corresponding buttons on the transmitter to launch your display.

      Required: Electric Igniters Sold Separately.
      This system requires electric connecting wires (igniters) to function. They are not included in the box.

      Click here to purchase the compatible Electric Connecting Wires (100 Pcs).

      Technical Specifications

      Transmitter Model DBR01 (with Hard Case)
      Receiver Model DB04r (9 Units Included)
      Total Cues 36 Channels (9 x 4)
      Remote Range Approx. 500 Meters
      Transmitter Power 6 x AA Batteries (Not Included)
      Receiver Power 4 x AA Batteries Each (Not Included)
      Functions Sequential, Step, Fire All, Group Control
      Packing List 1 Controller, 9 Receivers, 1 Antenna, Manual

      Need technical support for your show?
      Our team can assist with grouping configurations and setup advice.

      Message us on WhatsApp

      Frequently Asked Questions

      Are batteries included?

      No. Due to shipping regulations, batteries are not included. You will need standard AA batteries: 6 for the main transmitter and 4 for each receiver box.

      How do I avoid signal interference?

      Wireless microphones or radios can sometimes interfere. We recommend testing the system before the event. Also, keep at least 0.5 meters of distance between two receiver boxes to ensure clear signal reception.

      What connects the fireworks to the box?

      You need "Electric Connecting Wire" (Igniters). These have a match head on one end and bare wires on the other. You insert the bare wires into the red/black clips on the receiver. Please purchase these separately via the link above.
