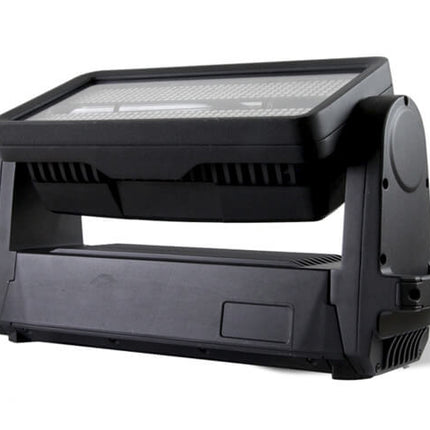

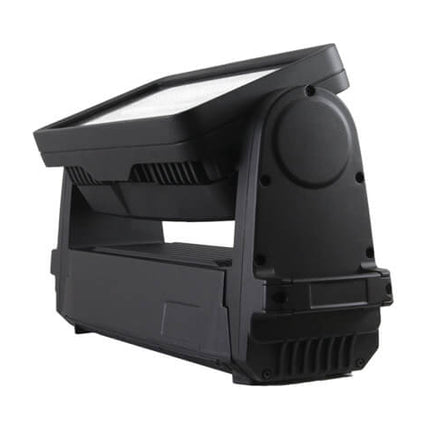

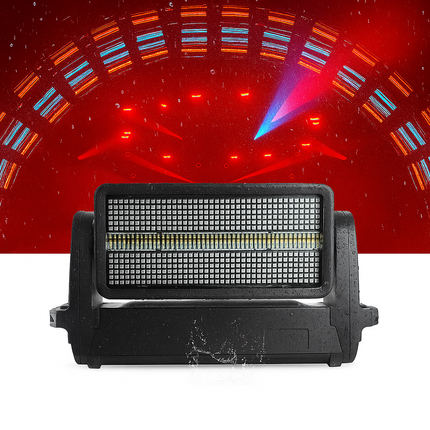

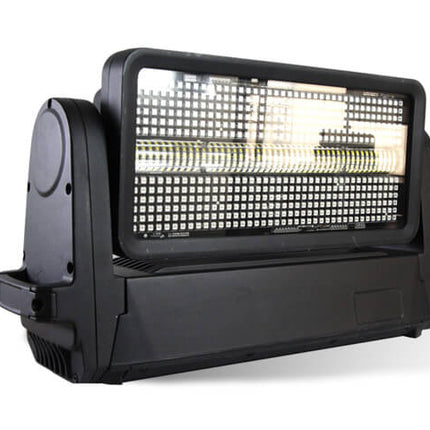

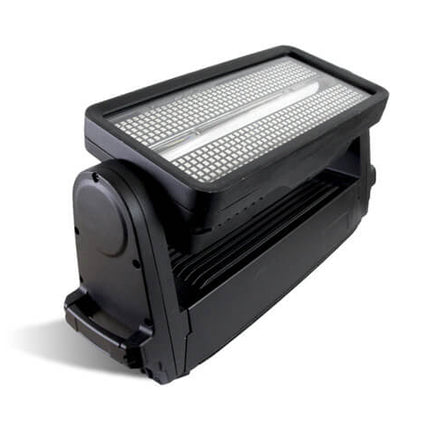

ACS 1000W IP65 Waterproof DMX Strobe Light 3-In-1 LED

Description

ACS 1000W IP65 Waterproof DMX Strobe Light 3-In-1 LED

1000W Hybrid Power · IP65 Waterproof · 270° Tilt Movement

Unleash a torrent of light with the ACS 1000W IP65 Strobe, a professional-grade 3-in-1 lighting fixture designed for the most demanding environments. This powerhouse combines an intensely bright 144-LED white strobe with a vibrant 480-LED RGB surface, allowing for stunning layered effects from strobing to color washing. Its rugged, IP65-rated housing ensures flawless performance in any weather, while the 270° motorized tilt provides dynamic positioning. With multi-zone pixel control and versatile DMX modes, it's the ultimate tool for concerts, festivals, architectural lighting, and large-scale events.

Key Features ▼

  • ✅ Dual light source with powerful white LEDs for strobing and full RGB LEDs for surface color effects.
  • ✅ Dynamic 270° motorized tilt with adjustable speed for precise light positioning.
  • ✅ Advanced pixel control with 4-segment control for the white strobe and 8-segment control for the RGB background.
  • ✅ IP65 waterproof rating makes it perfect for outdoor tours, festivals, and events in any weather.
  • ✅ Variable speed, two-way rainbow and color flow effects for creating breathtaking visuals.

Need a custom lighting solution or have technical questions? Chat with our lighting experts on WhatsApp.

How To Use

  1. Mount the fixture securely to a truss or surface using appropriate clamps.
  2. Connect the waterproof power cable to a suitable power source (AC100-240V).
  3. Connect a DMX cable from your controller to the DMX IN port. To link multiple units, use the DMX OUT port.

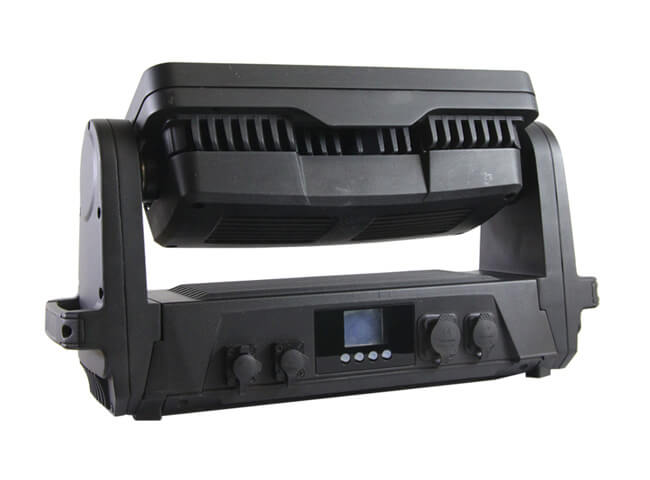

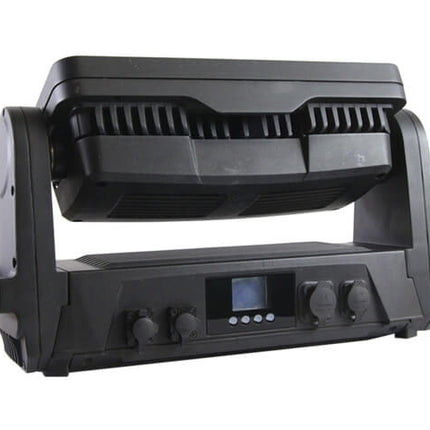

  4. Use the onboard LCD display and 4 buttons to select the desired control mode (e.g., 7CH, 14CH, 42CH) and set the DMX address.
  5. Operate the light via your DMX controller, or select a built-in Demo or Manual mode for standalone operation.
  6. After use, power down the unit and safely disconnect all cables.

💡 Silent & Powerful: This unit features a fan-less natural cooling system. Enjoy 1000W of raw power with zero operational noise, making it ideal for both roaring festivals and quiet theatrical stages.

Technical Specifications

Input Power AC100-240V, 50/60Hz
Total Power 1000W
Light Sources Strobe: 144pcs White LEDs
Surface Effect: 480pcs 0.5W RGB 3in1 LEDs
Illuminance 14500 Lux @ 1m
Strobe Effect 0.3 - 20 Hz
Dimmer 0–100% Linear Dimmer
Tilt Angle 270°
Control Modes DMX512 / Demo / Manual / RDM
DMX Channels 7 / 14 / 42 CH
IP Rating IP65 Waterproof
Cooling System Natural Cooling (No Fan)
Body Material Aluminum Alloy
Net Weight 12 kg
Body Size 535 x 152 x 300 mm

Packing List

Item Quantity
ACS 1000W Strobe Light 1 pc
Waterproof Power Cable 1 pc
Waterproof DMX Signal Cable 1 pc
User Manual 1 pc

Important Notice

This fixture is IP65 rated, suitable for outdoor use. To maintain the waterproof seal, ensure all power and signal connections are securely fastened. Always use professional-grade mounting hardware for safe installation.

FAQs ▼

  • Q: What does IP65 mean? Can I use it in heavy rain?
    A: Yes. An IP65 rating means the fixture is fully protected against dust ingress and low-pressure water jets from any direction. It is designed to be used safely in rain and other outdoor weather conditions.
  • Q: What is the difference between the 7CH, 14CH, and 42CH DMX modes?
    A: These modes offer different levels of control. 7CH is a basic mode for simple effects. 14CH (Standard) provides more detailed control over strobe, color, and tilt. 42CH (Extension) offers maximum control, including individual segment control of the LEDs for complex pixel-mapping effects.
  • Q: Does this light make a lot of noise?
    A: No. It uses a fan-less natural cooling system with a large aluminum radiator body, ensuring completely silent operation. This makes it ideal for noise-sensitive environments like theaters or TV studios.
  • Q: Can I control multiple units with one DMX controller?
    A: Absolutely. You can "daisy-chain" multiple lights by connecting the DMX OUT port of one fixture to the DMX IN port of the next. Just ensure each light is set to a unique DMX address for independent control.
  • Q: What is RDM?
    A: RDM stands for Remote Device Management. It allows you to change settings like the DMX address, control mode, and check sensor status remotely from an RDM-compatible controller, without needing to physically access the fixture's display panel.
