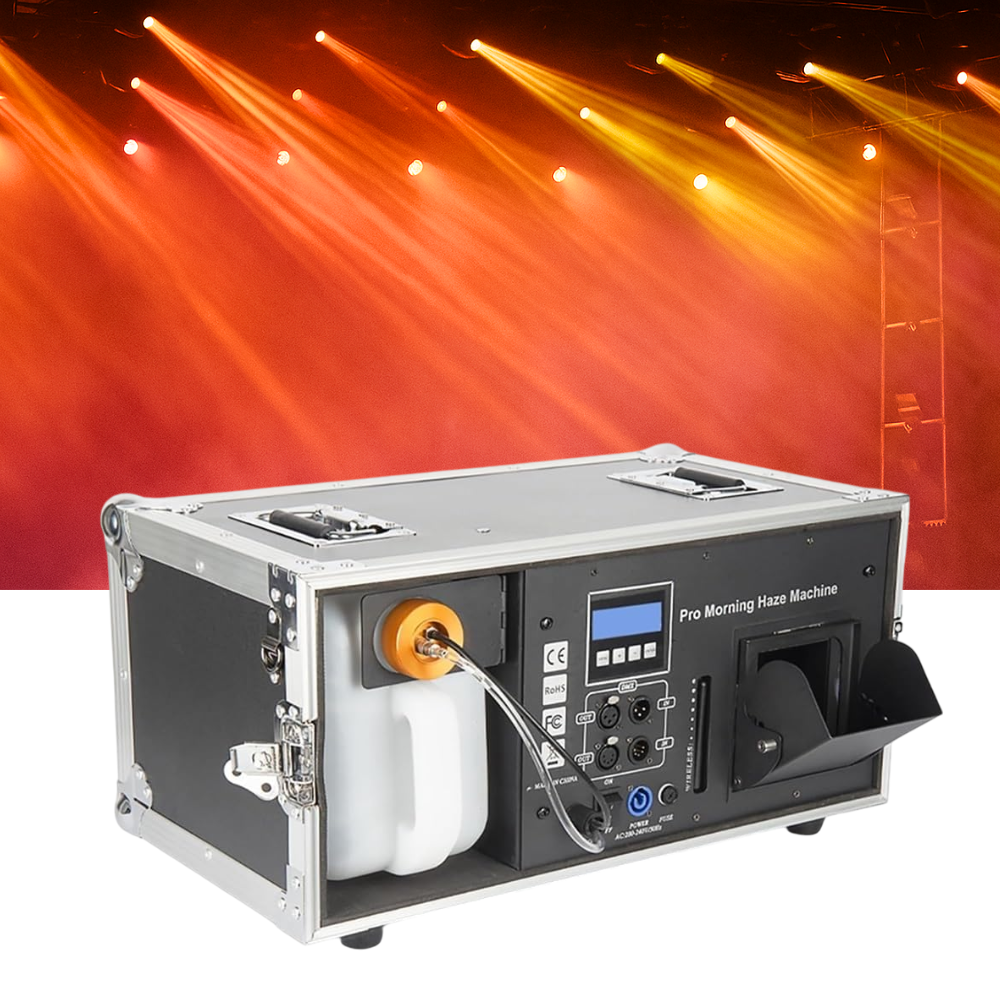

ACS 1200W Moring Mist Haze Machine
30s Preheating · 10-Hour Continuous Run · 150m² Coverage
Elevate any event with the ACS 1200W Haze Machine, engineered for professional stage productions, concerts, and large venues. This tour-grade hazer is built into a rugged flight case for maximum durability and portability. It produces a perfectly uniform, long-lasting haze that enhances lighting, laser shows, and beam effects, creating truly immersive atmospheres. With an incredibly fast 30-second heat-up time and the ability to run for 10 hours straight, it's the most reliable choice for designers and performers who demand excellence.
Key Features

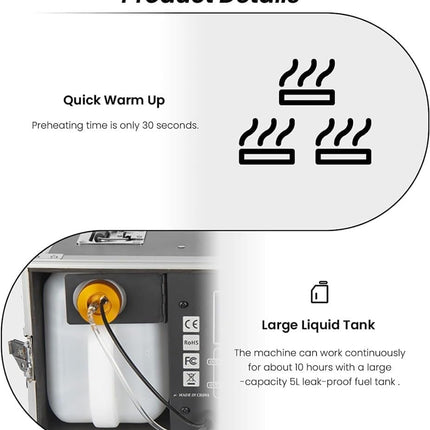

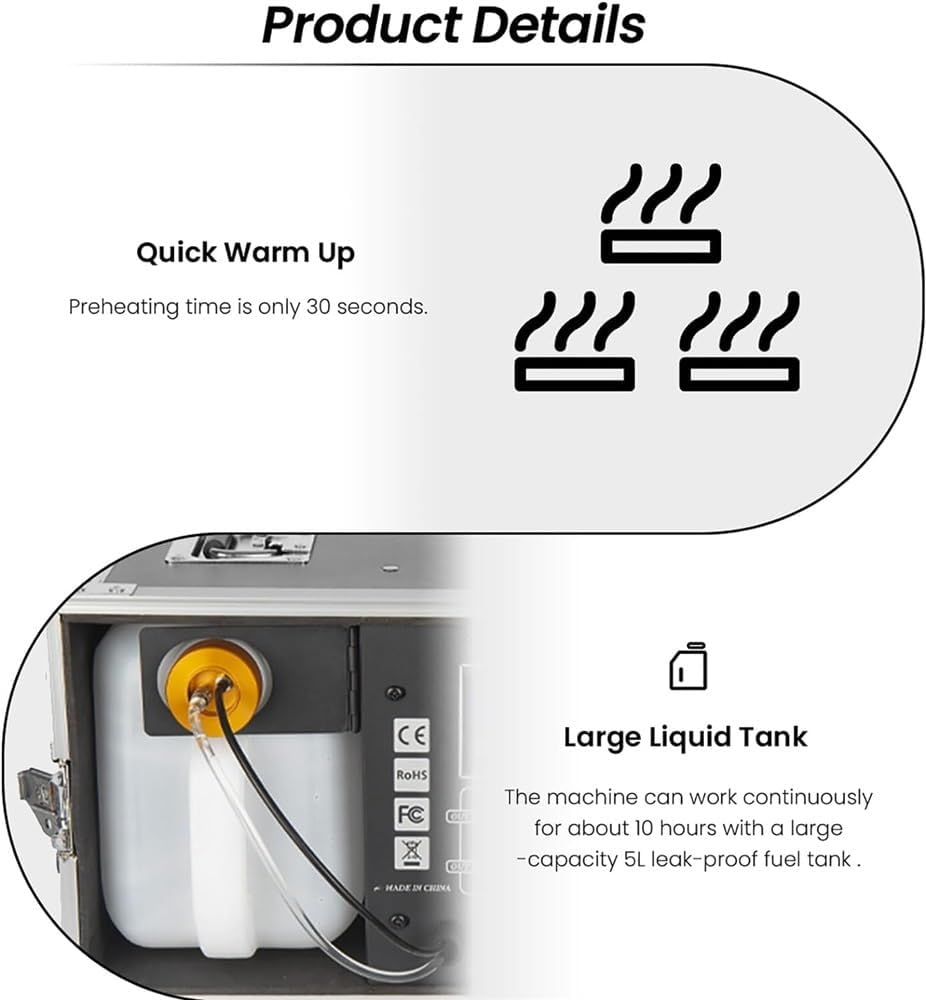

Ultra-Fast 30s Heating: Ready to go in just 30 seconds, eliminating long waits before the show.
10-Hour Continuous Output: A massive 5L tank provides up to 10 hours of non-stop operation.
Pro-Grade Flight Case: Integrated aviation case design ensures ultimate protection and easy transport.

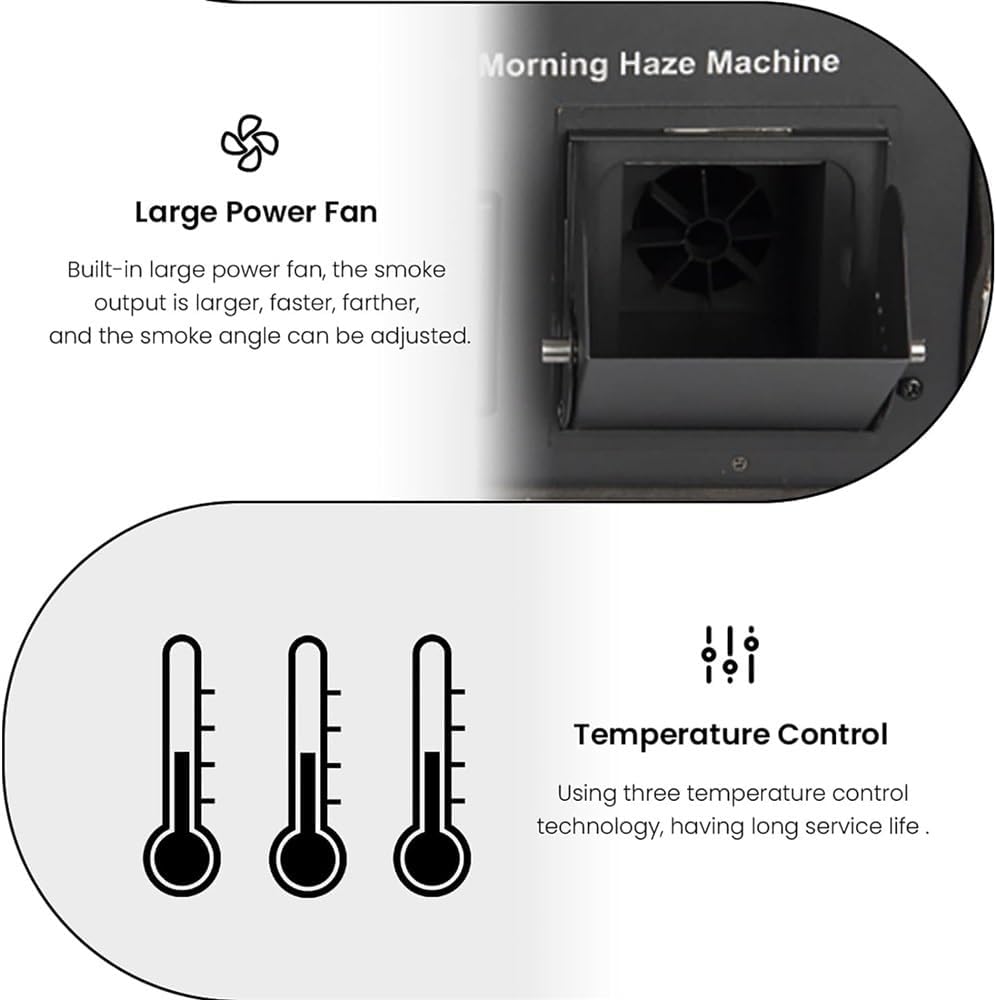

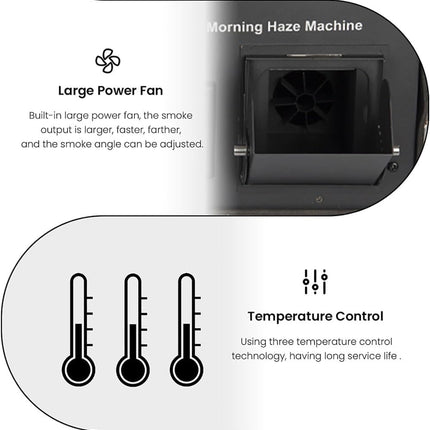

Adjustable Haze Output: Control haze density and direction with an adjustable fan and angled nozzle.

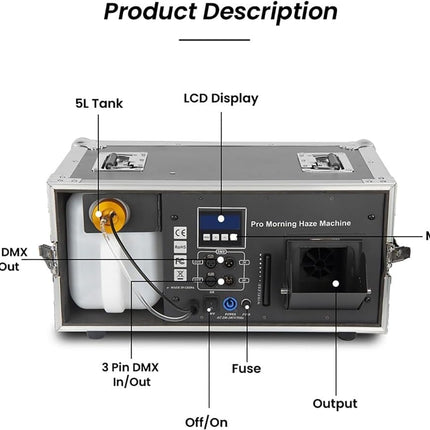

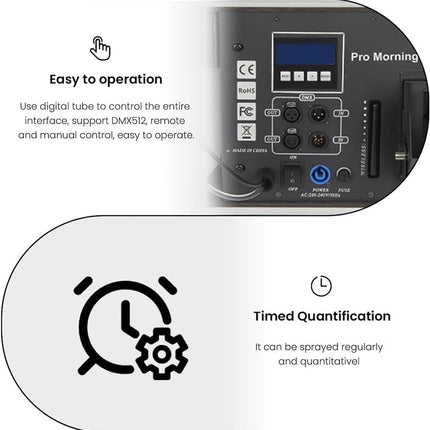

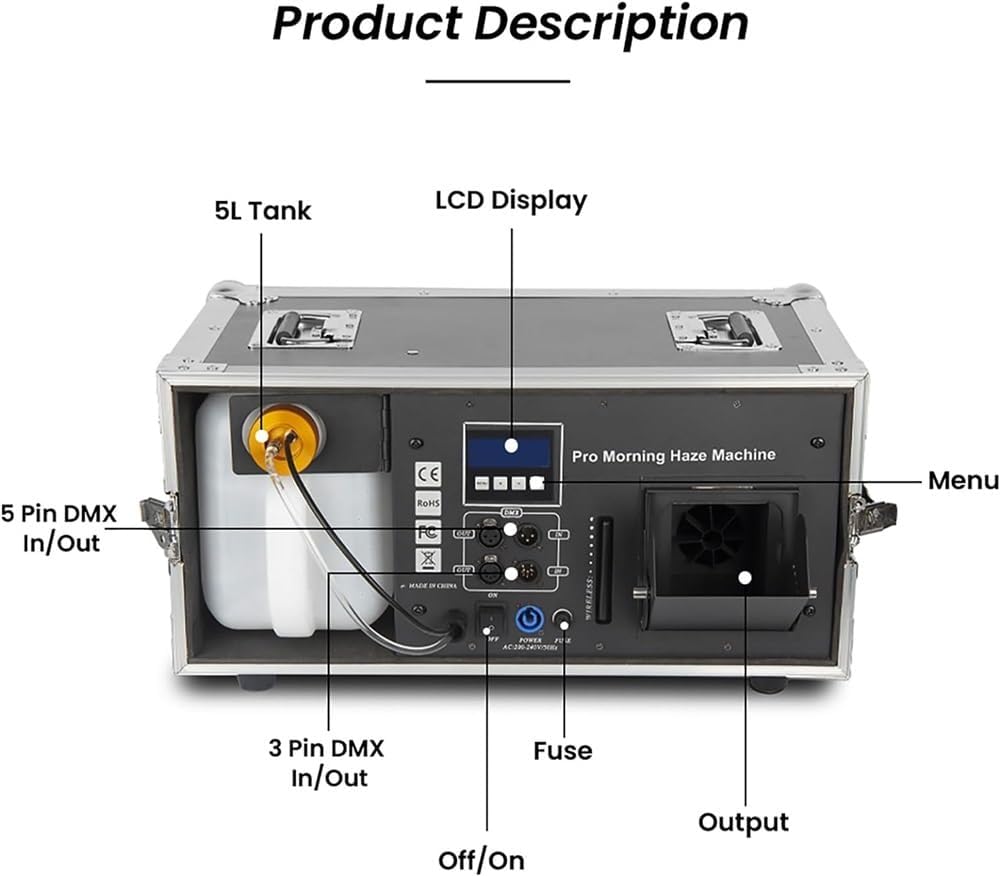

Versatile Control Options: Supports DMX-512, wireless remote, and onboard digital timer controls.
Advanced Heating System: Triple temperature control technology for a long, reliable service life.
How To Use
- Place the machine on a firm surface and open the fluid tank lid. Add up to 5L of high-quality, water-based haze fluid.
- Plug the power cord into a grounded socket and turn on the power switch.
- The machine will automatically heat for about 30 seconds. The LCD display will show "HAZE READY" when complete.
- Use the onboard controls, the included wireless remote, or a DMX controller to adjust fan speed and haze output.

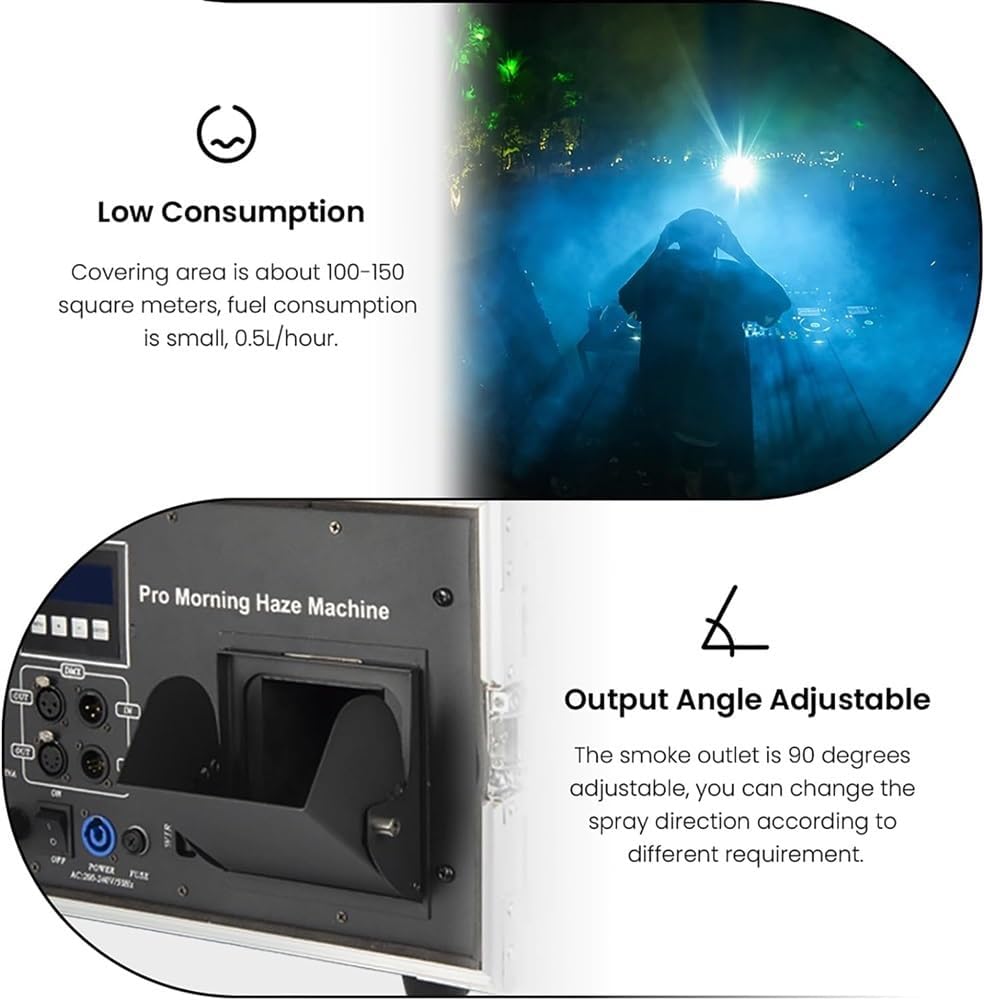

- Adjust the angle of the output nozzle to direct the haze flow as required for your venue.
All Night Performance: With its massive 5L tank and efficient 0.5L/hour consumption, this machine runs continuously for up to 10 hours, providing consistent haze for your entire event without a single refill.
Technical Specifications
| Input Voltage |
AC 90-110V 60Hz / AC 220V-240V 50Hz |
| Power Consumption |
1200W |
| Warm-up Time |
30 seconds |
| Tank Volume |
5L |
| Fuel Consumption |
0.5L / hour |
| Max Continuous Output |
10 hours |
| Max Coverage |
100-150 m² |
| Control Methods |
DMX 512 / Wireless Remote / Manual Timer |
| DMX Channels |
2 Channels |
| Machine Size |
58 x 30 x 43 cm |
| Net Weight |
18.5 kg |
Packing List
| 1x |
1200W Haze Machine with Flight Case |
| 1x |
Power Cord |
| 1x |
Wireless Remote Control |
| 1x |
DMX Cable |
| 1x |
User Manual |
Frequently Asked Questions
How long does it take to heat up?
The heat-up time is incredibly fast, taking only about 30 seconds. You can get up and running in under a minute.
How long will a full tank of liquid last?
The large 5-liter fluid tank allows for up to 10 hours of continuous haze production at 100% output without needing a refill.
Does this machine create heavy smoke or fine haze?
This is a professional haze machine. It is designed to produce a thin, even layer of fine haze that hangs in the air to perfectly enhance laser beams and lighting effects. It does not produce thick, heavy smoke.
What happens if the machine runs out of liquid?
Yes, it has built-in fluid level protection. When the fluid is used up, the machine will automatically stop the pump to protect the heating element from damage.
Can I adjust the output angle and fan speed?
Absolutely. The output nozzle angle is manually adjustable, and the fan speed (which controls haze density) can be controlled via DMX or the onboard LCD screen. Faster fan speed creates more haze but consumes fluid more quickly.
Can this machine be hung from a lighting truss?
Yes, it can be hung. However, due to its weight, you must pay close attention to using properly rated clamps and safety cables to fix the machine securely and prevent any risk of falling.
What should I do if the product is broken under warranty?
Don't worry. Please contact us immediately with pictures or videos of the issue. Our professional support team will help diagnose the problem and will guide you on how to fix it, providing free spare parts if needed under the warranty terms.
