ACS 12Pcs RGBW DMX Rotating Moving Head DJ Light
12x12W RGBW LEDs · DMX512 & Sound-Activated · Unlimited Y-Axis Rotation
The ACS Moving Head Light combines innovative technology with dynamic lighting aesthetics to create rich, dazzling, and exciting visual effects. Featuring 12 powerful 12W RGBW 4-in-1 LEDs, this fixture is designed to produce a true visual feast. It's the perfect centerpiece for disco clubs, DJ shows, dance halls, KTVs, stage performances, and any entertainment venue looking to elevate its atmosphere.
Key Features ▼
- ✅ 12 high-brightness 12W RGBW 4-in-1 LED lamp beads for vibrant colors and sharp focus.
- ✅ 4 versatile control modes: DMX512, Master-Slave, Sound-Activated, and Auto-Run.
- ✅ Dynamic movement with a 540° X-axis pan and limitless Y-axis tilt rotation.
- ✅ High-speed electronic strobe effect, adjustable from 1-10 flashes per second.
- ✅ Durable engineering plastic and iron housing with an efficient cooling fan for safety and longevity.
- ✅ User-friendly digital display for easy setup and mode selection.
How To Use
- Unpack the unit and place it on a stable surface or mount it securely using the included brackets and screws.
- Connect the power cord to a suitable AC110-220V power outlet and turn the unit on.

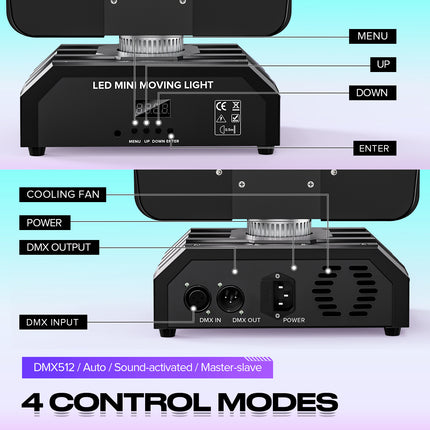

- Use the digital display and menu buttons to select your desired control mode (DMX, Sound, Auto, Master/Slave).
- For DMX control, connect a DMX cable to the DMX IN port and set the address on the light to match your controller's configuration.
- For sound-activated mode, simply play music and the light will sync its movements and colors to the beat.
- After use, power off the unit and allow it to cool before handling or storing.
🌀 Infinite Rotation, Endless Effects: With its 540° pan and unlimited Y-axis rotation, this light covers every corner of the room, delivering a truly immersive and non-stop visual experience for any event!
Technical Specifications
| Input Voltage |
AC110-220V, 50-60HZ |
| Total Power |
150W |
| Light Source |
12x 12W RGBW 4-in-1 LEDs |
| Movement |
X-Axis: 540°, Y-Axis: Unlimited Rotation |
| Control Mode |
DMX512 (13/15CH), Sound Activated, Auto-Run, Master-Slave |
| Strobe |
1-10 times/sec, High-Speed Electronic Adjustment |
| Service Life |
50,000 Hours |
| Material |
Engineering Plastic & Iron |

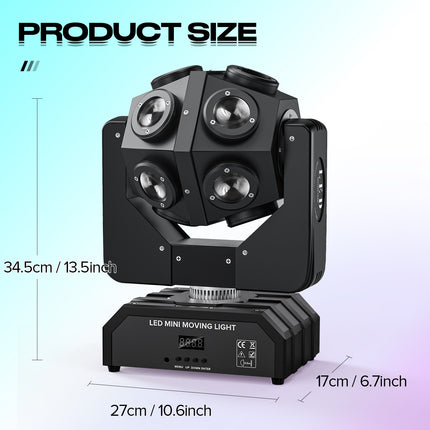

| Dimensions |
35 x 26 x 16 cm (13.78 x 10.24 x 6.3 in) |
| Net Weight |
5 kg (11.02 lb) |
Packing List
| Item |
Qty |
| Moving Head Light |
1 pc |
| Power Cord |
1 pc |
| Screws |
2 pcs |
| Bracket |
2 pcs |
| User Manual |
1 pc |
Important Notice
For professional use. Ensure proper ventilation around the unit to prevent overheating. When mounting overhead, always use certified clamps and a safety cable. Avoid direct eye exposure to the LED beams.
