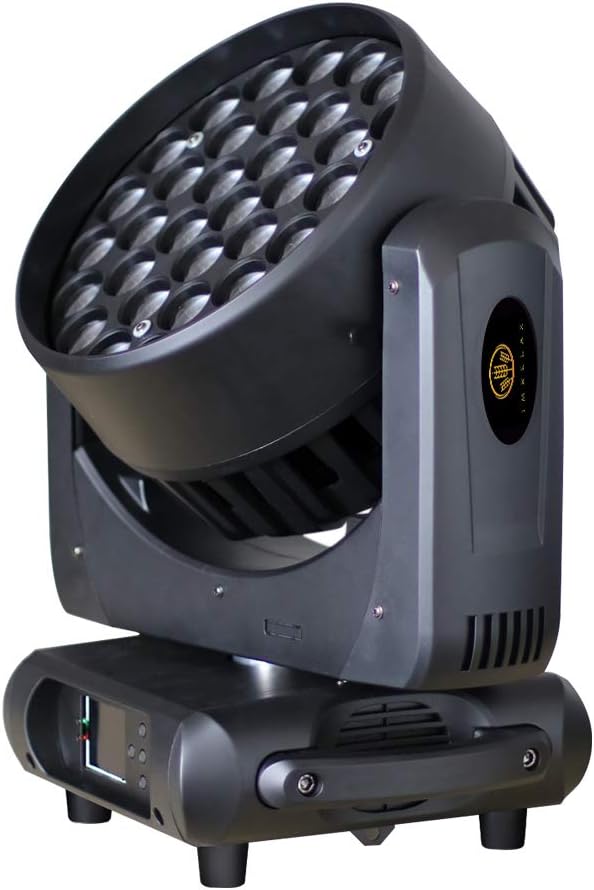

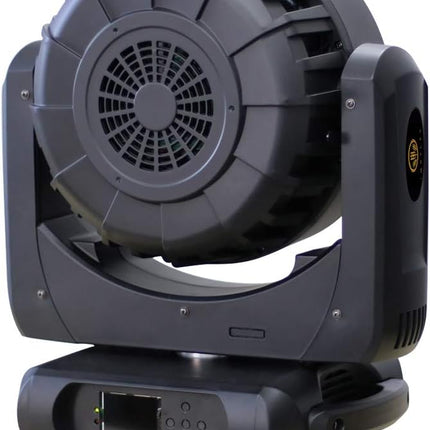

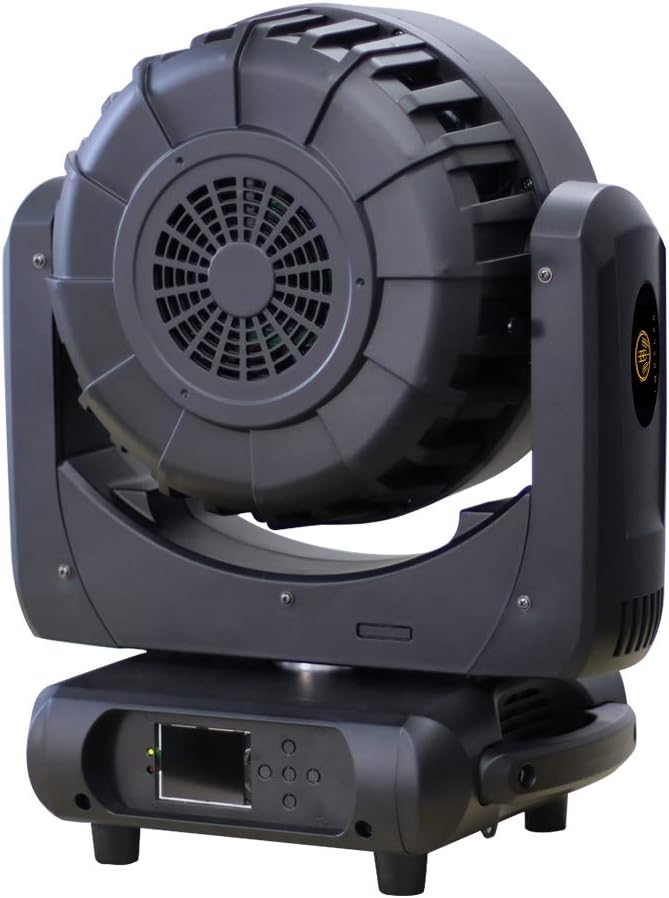

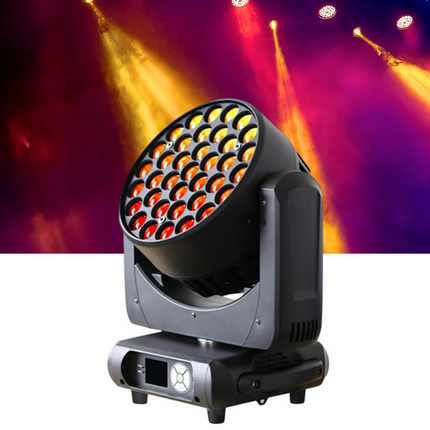

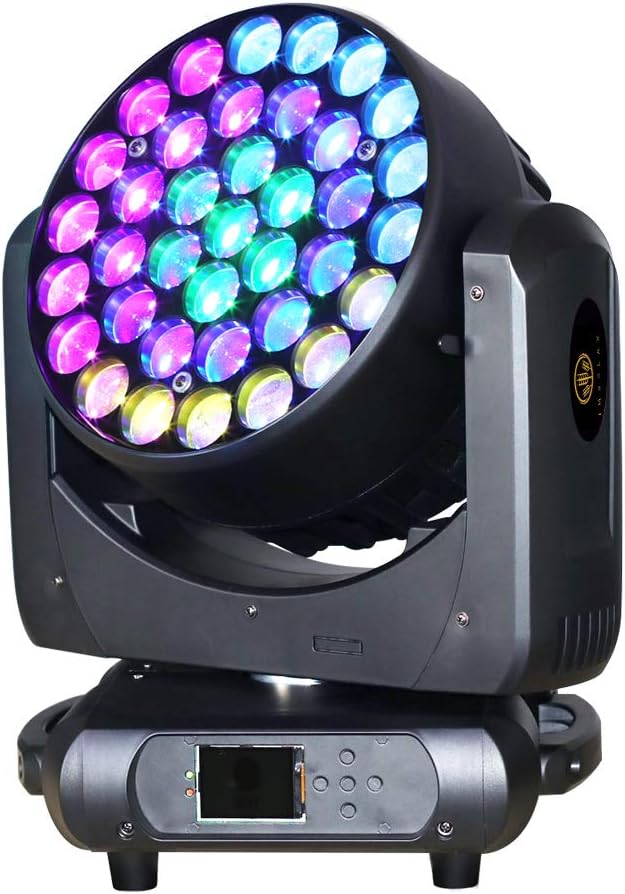

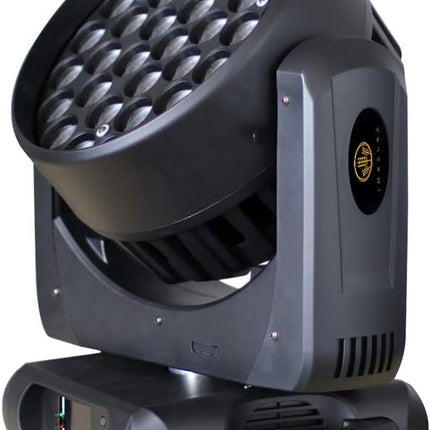

ACS 15W x 37 Moving Head Wash Light (Zoom)
37x15W Osram LEDs · Powerful Beam, Wash & Zoom · Individual Pixel Control
The ACS 15W x 37 is a professional LED moving head that combines powerful beam, wash, and zoom effects into one versatile fixture. Featuring 37 high-quality 15W Osram RGBW LEDs, it delivers stunning color mixes and uniform light diffusion, with a base that can be rotated 360 degrees for all-around coverage. Its wide zoom range and multiple control modes make it a perfect solution for DJs, bands, pubs, clubs, skating rinks, KTV, parties, weddings, festivals, and shopping malls.
Key Features ▼

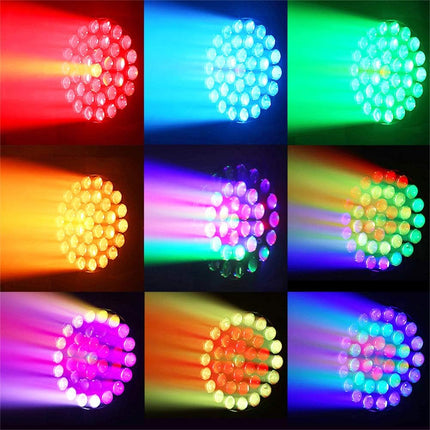

- ✅ 3-in-1 Functionality: Beam, Wash, and Zoom effects in one dynamic unit.

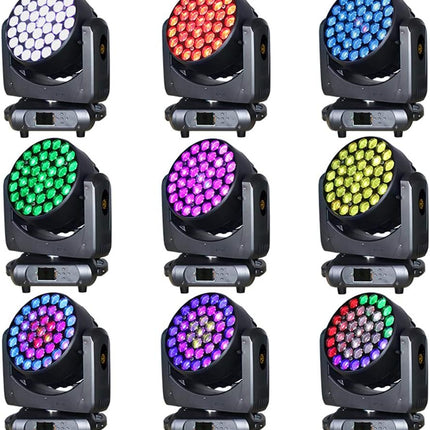

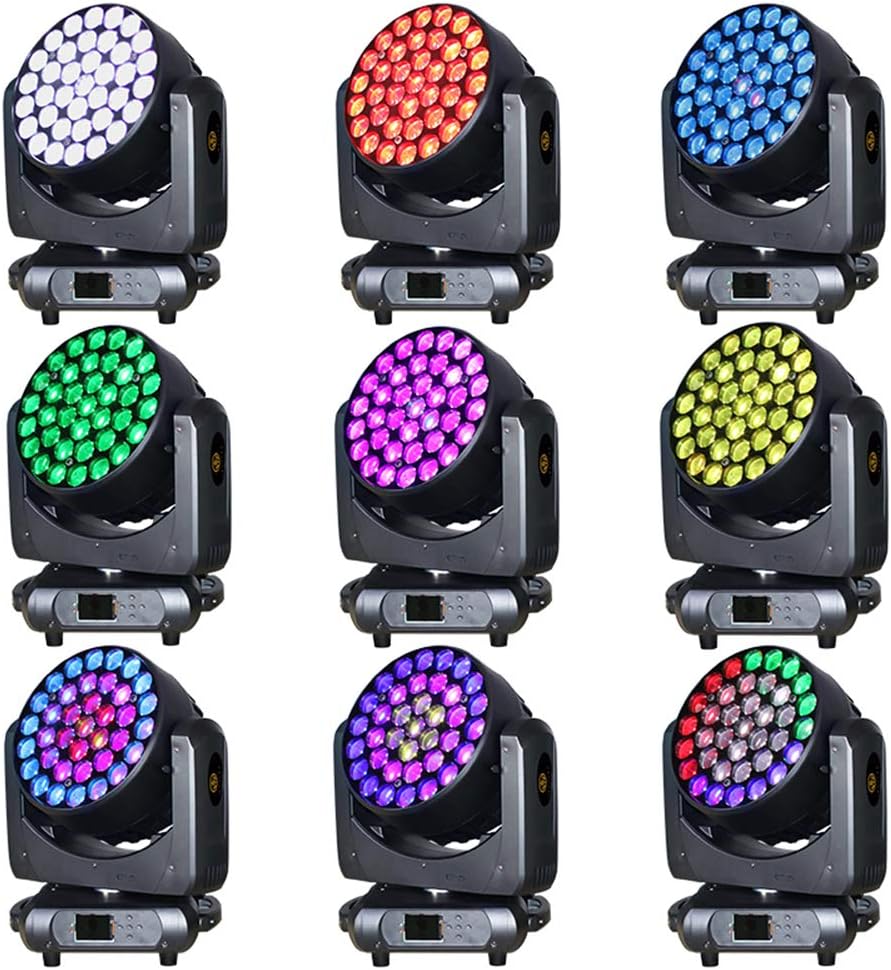

- ✅ 37 x 15W High-Power Osram LEDs: Delivers exceptional brightness and vibrant RGBW colors.

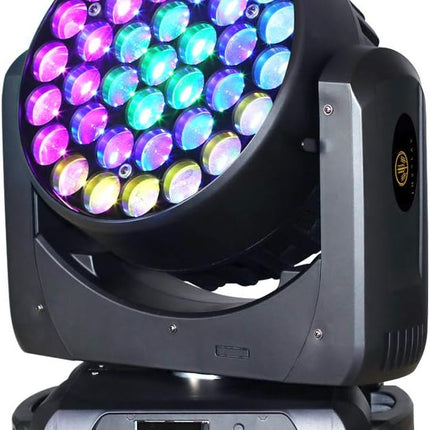

- ✅ Full Pixel Control: Each of the 37 LEDs can be controlled individually for creative effects.
- ✅ Wide Motorized Zoom: Linear zoom from 10° to 60° for tight beams or wide washes.
- ✅ Flexible Control: Supports RDM, DMX512, Auto-Run, Master-Slave, and Sound-Activated modes.
- ✅ Fast & Smooth Movement: 540° Pan and 270° Tilt with 16-bit resolution for precise positioning.
💡 Featuring Genuine OSRAM LEDs: Equipped with 37 original 15W 4-in-1 Osram LEDs, this fixture guarantees superior brightness, color consistency, and a 50,000-hour lifespan for professional, reliable performance night after night!
Care & Maintenance Instructions
- To ensure the service life of the product, do not place it in a humid or leaking place, and avoid operating in environments exceeding 40°C.
- Install the product in a stable location, away from areas prone to loosening or vibration.
- To avoid the danger of electricity, maintenance of this product requires professional maintenance personnel.
- Keep the lamp dry and clean the fan and lens frequently to ensure good ventilation and lighting effects.
- The power supply voltage change should not exceed ±10%. High voltage will shorten the bulb's life; low voltage will affect light efficiency.
- After the power is cut off, the lamp needs to be fully cooled before being powered on again.
- Do not wipe the lamp housing with organic solvents to avoid damage.
Technical Specifications
| Voltage |
AC100-240V, 50/60Hz |
| Power Supply |
550W |
| Light Source |
37×15W 4-in-1 RGBW Original Osram LED |
| Lifetime |
50,000 hours |
| Luminous Angle |
10°-60° linear focusing |
| Zoom Range |
2.8°-55° |
| Pan/Tilt |
540° / 270° (16-bit resolution) |
| Control Mode |
DMX512, RDM, Master-Slave, Sound Active, Auto |
| DMX Channels |
12/20/32 CH |
| Dimming |
0-100% smooth linear dimming |
| Strobe |
0-20Hz |
| Dimensions |
49 × 46 × 36 cm |
| Weight |
18kg |
Please Note
We have different power supply plugs: United Kingdom plugs, AU plugs, EU plugs, and USA plugs. Please let us know the power supply you need, or we will choose the appropriate plug according to your country.
