ACS 19 W x 15 AURA RGBW 4-In-1 Moving Head Wash Light
Wide Zoom Range · Precise Color Mixing · Professional Stage Effects

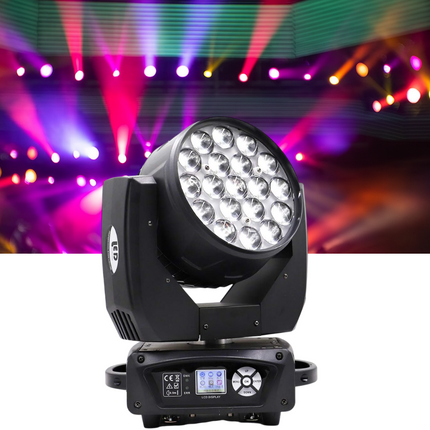

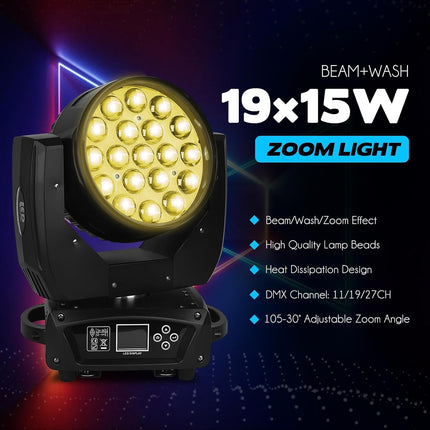

The ACS 19 W x 15 AURA RGBW Moving Head Wash Light delivers stunning color mixing and versatile stage lighting effects. It features 19pcs 12W RGBW 4-in-1 LEDs, plus a 30×0.5W RGB aura backlight for added visual dimension. The wide zoom range of 11–58 degrees allows for tight beams or broad washes, while the strobe, dimmer, and smooth movement offer dynamic show control.
This fixture is equipped with standard DMX512, automatic, and master/slave control modes, plus fast pan and tilt rotation, ensuring creative flexibility for concerts, clubs, and events. It’s a professional-grade solution with robust features for lighting designers who demand reliability and vivid output.
Key Features ▼

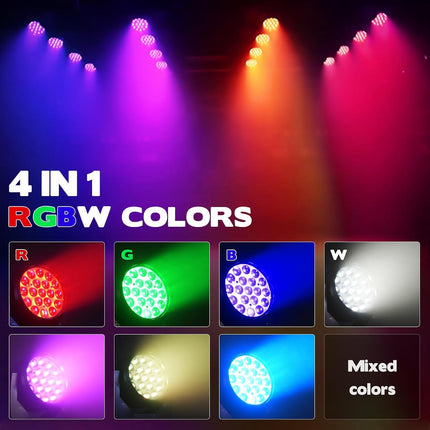

- ✅ 19pcs 12W RGBW 4-in-1 LEDs with Aura Backlight

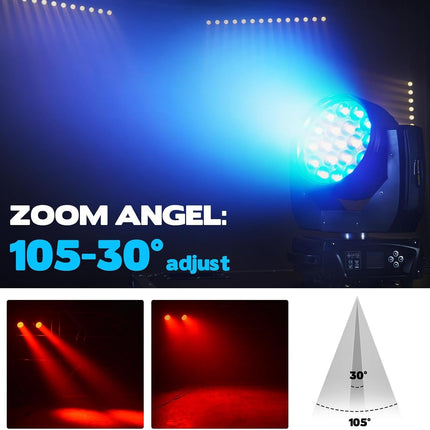

- ✅ 11–58° Zoom for Flexible Beam/Wash Effects
- ✅ 0–100% Smooth Dimming & Strobe: 1–25 Times/Sec

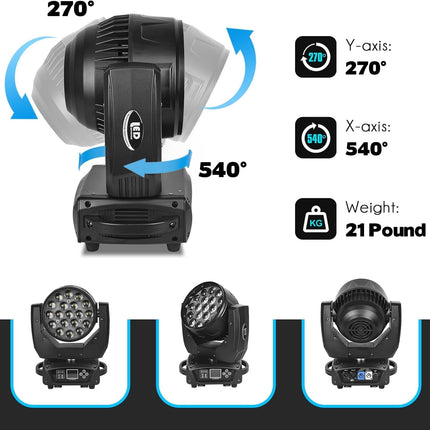

- ✅ Pan: 540°, Tilt: 270° with Fast Rotation
- ✅ Standard DMX512, Automatic, Master/Slave Control
- ✅ PowerCon In & Out, 3-pin & 5-pin XLR
- ✅ Compact & Lightweight: N.W. 8kg
- ✅ Ideal for Professional Stage, DJ & Club Use
Technical Specifications
| Voltage |
AC90-240V, 50-60Hz |
| Main Lamp |
19pcs 12W RGBW 4-in-1 LEDs |
| Aura Lamp |
30×0.5W RGB LEDs |
| Power Consumption |
260W |
| Beam Angle |
11–58 degrees |
| Dimmer |
0–100% Dimming |
| Strobe |
1–25 Times/Second |
| Control Mode |
DMX512, Automatic, Master/Slave |
| DMX Channel |
14/25 CH |
| IP Rate |
IP20 |
| Pan Rotation |
540 degrees |
| Tilt Rotation |
270 degrees |
| Data In/Out |
3-pin & 5-pin XLR connection |
| Power In/Out |
PowerCon in and out |
| Net Weight (N.W.) |
8 kg |
| Gross Weight (G.W.) |
9.8 kg |

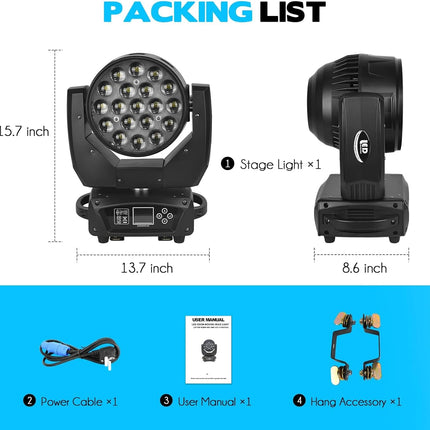

| Dimension |
32 × 21 × 38 cm |
| Carton |
1 pcs/carton |
How To Use
- To ensure service life, do not use in humid or leaking places, and avoid temperatures above 40℃.
- Do not place the product where it may loosen or vibrate easily.
- Maintenance should be done by professional personnel to avoid danger.
- Voltage variation should not exceed ±10% to maintain efficiency.
- After turning off the power, allow lamps to cool before powering on again.
Maintenance
- Keep the lamp dry and avoid humid conditions.
- Indirect use will prolong lamp life.

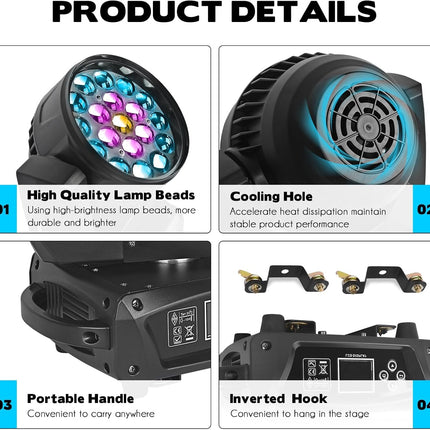

- Ensure good ventilation, clean fan and lens frequently.
- Do not use organic solvents on the lamp housing.
FAQs ▼
-
Q: Will the light work without a DMX console?
A: Yes, you can use self-propelled, sound-activated, or manual modes.
-
Q: What happens if the lamp breaks during the warranty?
A: We provide free technical support and spare parts. Just send videos/photos to confirm the issue.
-
Q: After warranty, can I get repairs?
A: Yes, we offer lifetime technical support and paid replacement parts if needed.
Important Notice
We offer different power plugs (UK, AU, EU, USA). Please specify your requirement, or we will match it according to your country.
