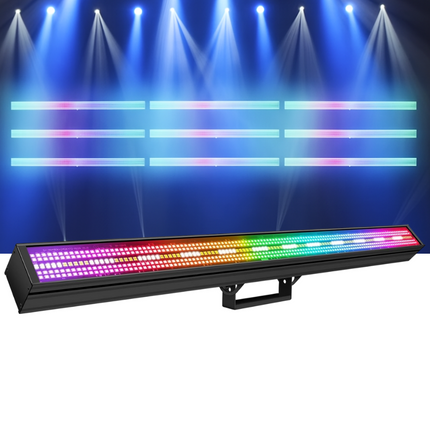

ACS 200W RGBW LED Strobe Bar
720 High-Power LEDs · RGB Wash & White Strobe · DMX & Daisy Chain Control
The ACS 200W DJ Light Bar is a dynamic, multi-function fixture designed for professional lighting designers and mobile entertainers. It features a central strip of 240 cool white SMD LEDs for intense strobing, surrounded by 480 RGB color-mixing SMD LEDs for vibrant washes. Both LED types are grouped into independently controllable zones (48 color and 24 white), allowing for stunning 'eye candy' effects and creative chases. With flexible DMX modes, robust metal construction, and easy-to-use mounting options, this 1-meter bar is perfect for concert touring, stage productions, and high-energy events.
Key Features ▼

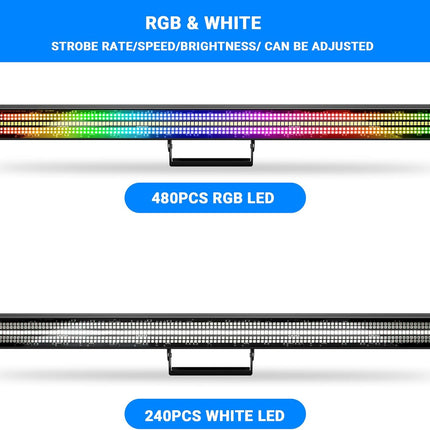

- ✅ Total of 720 high-output SMD LEDs (480 RGB + 240 Cool White)
- ✅ Dual-function: Serves as both a vibrant color wash and a powerful white strobe light
- ✅ Dynamic zone control with 48 RGB zones and 24 white zones for pixel-mapping effects
- ✅ Daisy-chain power for linking up to 8 fixtures from a single power outlet
- ✅ Flexible DMX control with 4, 6, and 168-channel modes for all levels of control
- ✅ 360° adjustable brackets for easy truss mounting or use as a floor stand
How To Use
- Securely mount the light bar using the 360° adjustable brackets or place it on a stable flat surface.
- Connect the power cord. If linking multiple units, use the power output to daisy-chain the next fixture.
- Choose your control mode: Use the 4-button LED display for standalone modes or built-in programs.
- For DMX control, connect a DMX cable to the DMX IN port. Set the desired DMX address using the menu.
- Select the appropriate channel mode (4, 6, or 168 Ch) based on your control needs.
- Operate the fixture using your DMX controller to create stunning color washes, strobe effects, and pixel chases.

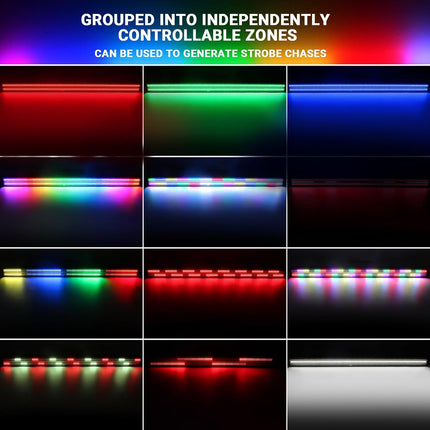

💥 Dynamic Zone Chases: With 48 color zones and 24 white zones, you can create breathtaking 'eye candy' effects, pixel chases, and fluid color gradients. Perfect for adding a high-end, creative touch to any show!
Technical Specifications
| Voltage |
110V (Corded Electric) |
| Total Power |
200W |
| Light Source |
720 SMD LEDs (480 x 0.2W RGB + 240 x 0.5W Cool White) |
| Control Modes |
DMX512 (4/6/168 CH), Standalone, Built-in Macros, Remote Compatible |
| Special Features |
Zone Control, Color-Changing, Dimmable |
| Power Linking |
Daisy Chain up to 8 units |
| Material |
Aluminum / Metal Housing |
| Dimensions (L x W x H) |
40.5" x 6.7" x 5.1" (approx. 103 x 17 x 13 cm) |
| Weight |
8.8 lbs (4 kg) |
Important Notice
For professional use. Ensure proper ventilation around the fixture. Do not look directly into the LEDs at close range. When daisy-chaining power, do not exceed the maximum number of linked units to prevent electrical overload.
