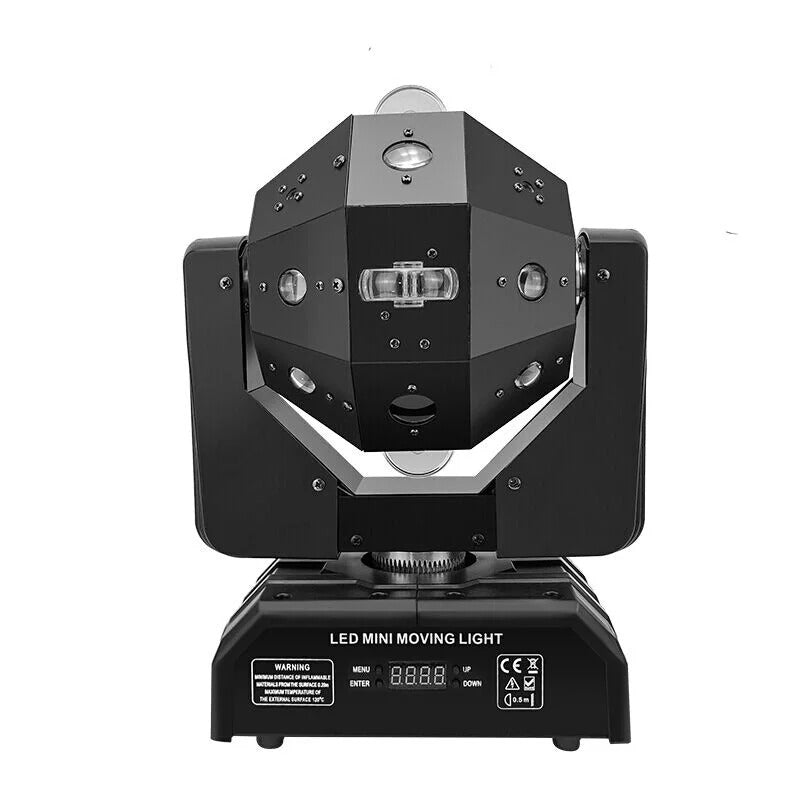

ACS 24Pcs 4-In-1 LED Laser Moving Head Stage Beam Light Strobe Soccer
Red & Green Lasers · RGBW Beams & Patterns · DMX & Sound Control
Unleash a stunning spectacle of light with the ACS 4-in-1 Moving Head! This dynamic fixture is a complete lighting solution, combining powerful RGBW LED beams, sharp red and green lasers, mesmerizing patterns, and a high-speed strobe effect into a single, compact unit. With fast 540° pan and 180° tilt movement, it's perfect for DJs, nightclubs, bands, parties, and events seeking to create an electrifying and immersive atmosphere. Its versatile control modes make it accessible for beginners and professionals alike.
Key Features ▼
- ✅ 4-In-1 Effect: Integrates LED Beams, Laser Patterns, Strobe, and Gobo effects in one light.
- ✅ Vibrant Light Source: 20pcs long-life RGBW LED chips plus 4pcs powerful red & green lasers.
- ✅ Dynamic Movement: Wide 540° pan and 180° tilt rotation for full room coverage.
- ✅ Versatile Control: DMX512, Wireless DMX, Auto-run, Sound-Activated, and Master-Slave modes.
- ✅ Durable & Hangable Design: Sturdy housing with a mounting bracket for easy installation on trusses or ceilings.
How To Use
- Securely mount the light to a truss, stand, or place it on a stable flat surface using the included bracket.
- Connect the power cord to a suitable power outlet.
- For DMX control, connect a DMX cable from your controller to the light's DMX IN port. Set the desired DMX address on the digital display.
- Alternatively, use the menu to select a stand-alone mode: 'Auto' for a pre-programmed show or 'Sound' for the light to react to music.
- To link multiple units, connect a DMX cable from the DMX OUT of the first light to the DMX IN of the next, and set the first unit to "Master" and others to "Slave" mode.
💥 All-in-One Powerhouse: Why use four separate lights? This fixture combines dynamic beams, sharp lasers, vibrant patterns, and a powerful strobe into a single, compact moving head. Perfect for simplifying your setup without sacrificing impact!
Technical Specifications
| Voltage |
AC 90-240V / 50-60Hz |
| Total Power |
100W |
| Light Source |
20 pcs RGBW LED + 4 pcs Lasers (2 Red, 2 Green) |
| LED Life |
50,000 hours |
| Pan/Tilt |
Pan: 540 degrees / Tilt: 180 degrees |
| Control Mode |
DMX512, Auto Mode, Sound Control, Master-Slave, Wireless DMX512 |
| DMX Channels |
22CH |
| Beam Angle |
1.5 degrees |
| Spot Angle |
Minimum 6°, Maximum 51° |
| Strobe |
20 times/second Electronic Strobe and Random |
Packing List
| Accessory |
Quantity |
| Main Moving Light |
1 pc |
| DMX Cable |
1 pc |
| Power Cord |
1 pc |
| User Manual |
1 pc |
Please Note
We have different power supply plugs: United Kingdom, AU, EU, and USA plugs. Please let us know the power supply you need, or we will choose according to your country.
Applicable places: DJs, bands, bars, pubs, clubs, skating rinks, KTV, family parties, birthdays, weddings, festivals, shopping malls, and other designated places.
