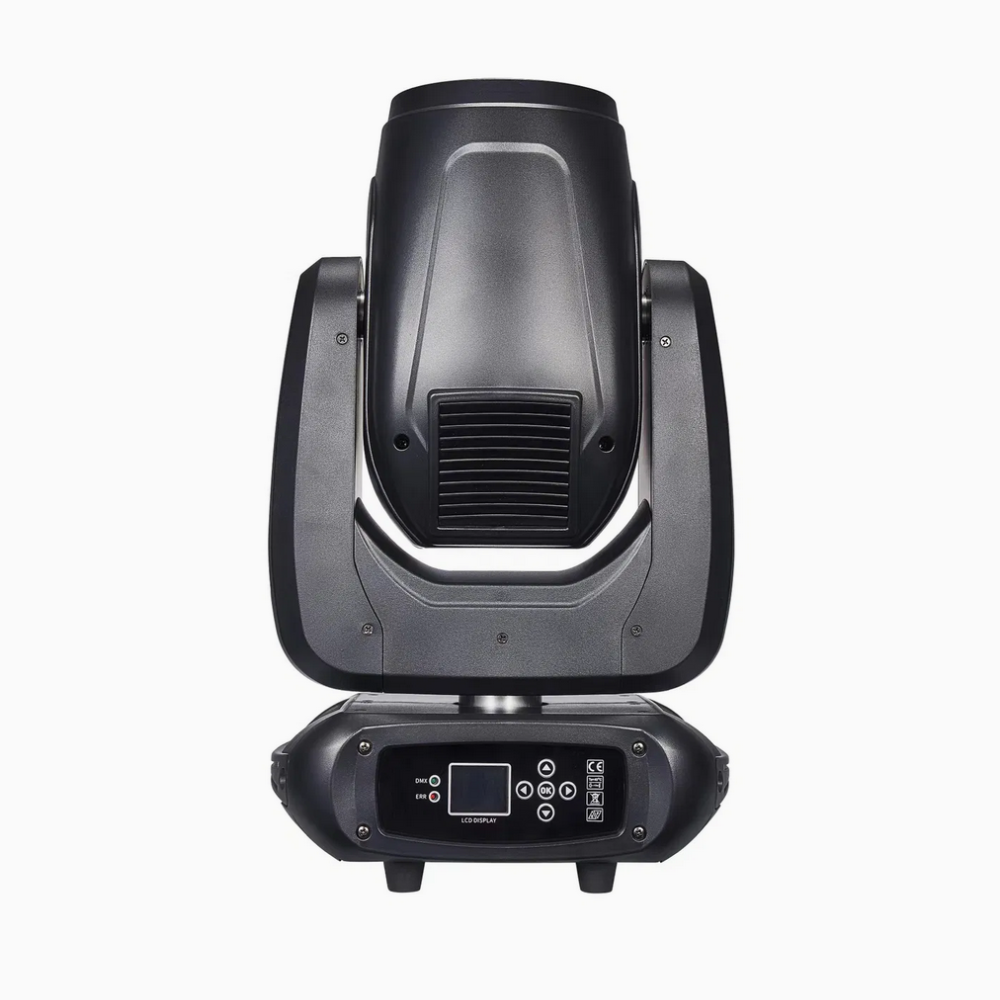

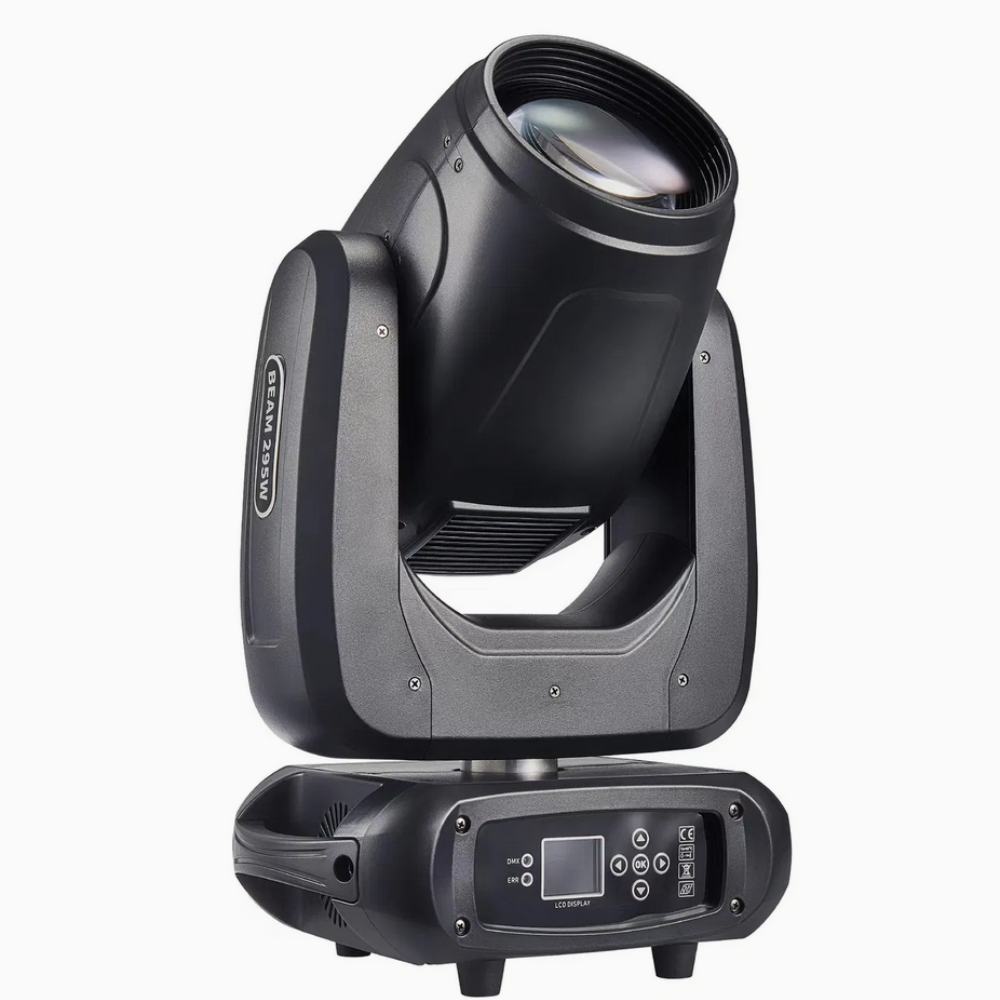

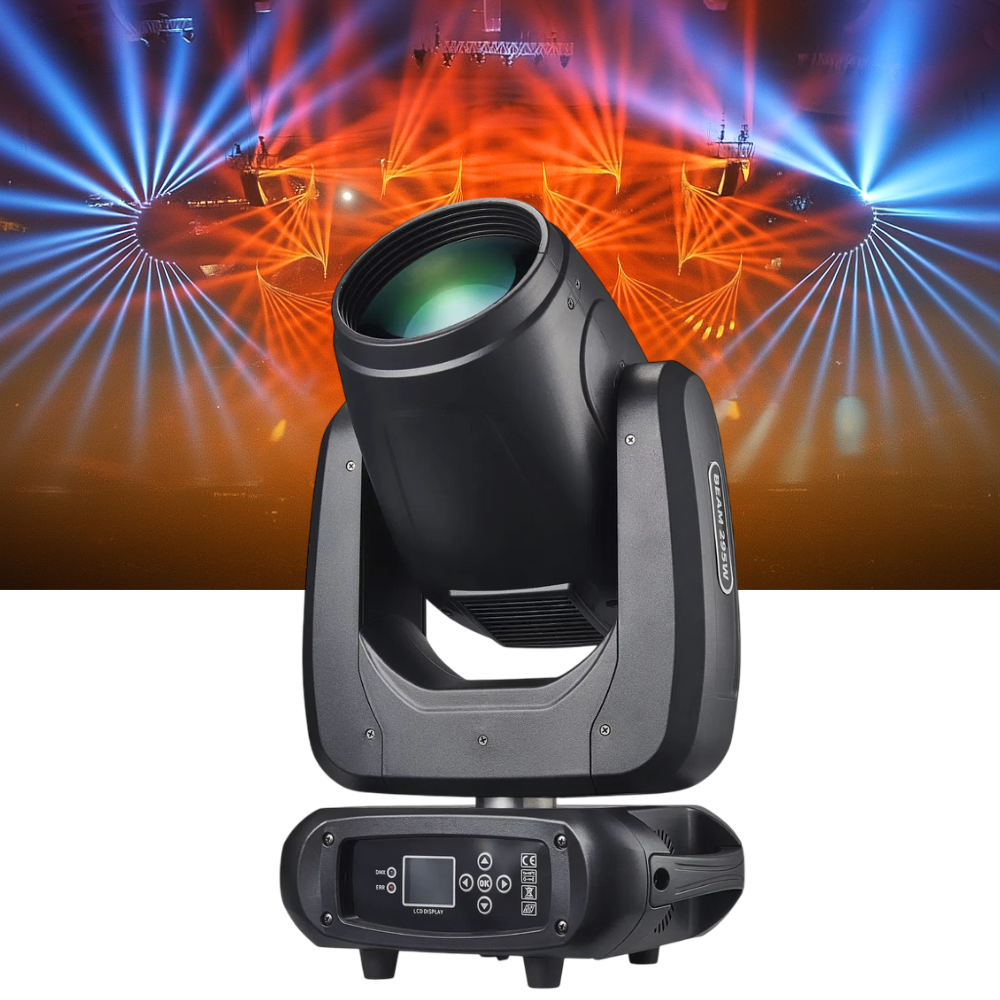

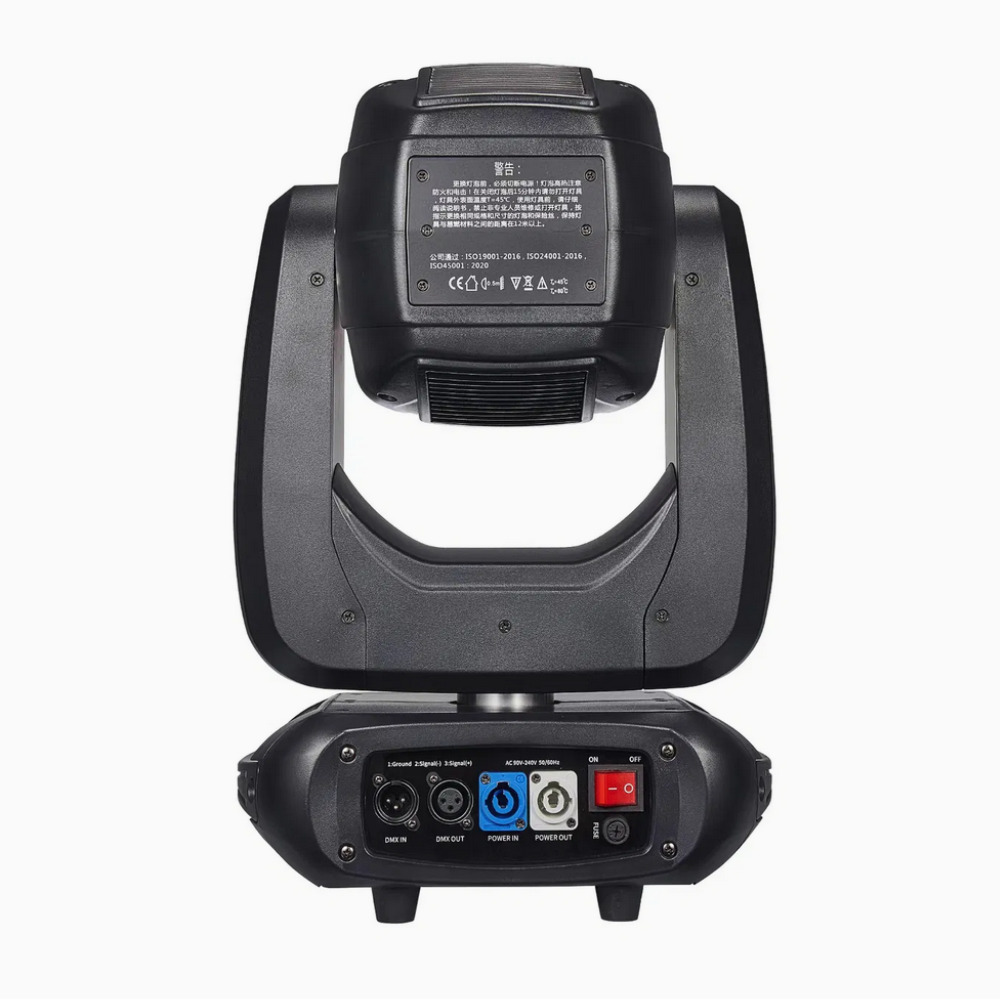

ACS 295W Moving Head Beam Light
Powerful 295W Osram Lamp · Triple Layered Prisms · Ultra-Sharp 1.5° Beam
The ACS 295W is engineered for superior performance, offering an incredibly bright and clear-edged beam solution. Powered by a long-life 295W Osram lamp and projected through a large 160mm front lens, it delivers a stunning 1,200,000 lux at 5 meters. Unleash a shivering, multicolored pattern feast with a 13-gobo wheel, which includes 3 special glass gobos for creating a dynamic "flowing water" effect. This fixture combines beams, patterns, and rich colors with a triple-layered prism system and a frost filter, making it a highly flexible and professional choice for stages, fashion shows, and any medium-to-large-sized event.
Key Features ▼
- ✅ Powerful 295W Osram lamp with an extended 6,000-hour lifespan
- ✅ Triple layered prisms: 8-facet, 16-facet, and 24-facet Honeycomb, all overlayable
- ✅ Static gobo wheel with 13 HD gobos, including 3 glass gobos for a "flowing water" effect
- ✅ Vibrant color wheel with 13 complementary colors plus open white
- ✅ Ultra-narrow 1.5° beam angle projected from a large 160mm frontal lens
- ✅ Professional control with DMX512 & RDM protocols (18/22 Channel modes)
- ✅ Integrated Frost Filter to soften the beam edge for beautiful wash effects
Technical Specifications
| Voltage |
100-240V, 50/60Hz |
| Power Consumption |
480W |
| Light Source |
Osram 295W Lamp (6,000hr lifespan) |
| Color Temperature |
8000K |
| Control Protocol |
DMX512, RDM |
| DMX Channels |
18 / 22 Channels |
| Color Wheel |
13 Colors + White |
| Gobo Wheel |
13 Static Gobos (incl. 3 glass effect) + White |
| Prism |
8-facet + 16-facet + 24-Honeycomb (Overlayable) |
| Beam Angle |
1.5° |
| Net Weight |
11 kg |
| IP Rating |
IP20 (Indoor Use) |
Packing List
| Item |
Quantity |
| 295W Moving Head Light |
1 pc |
| Power Cable |
1 pc |
| Fixed Foldable Clamps for 50mm Truss |
2 pcs |
| Digital User Manual & Warranty Card |
1 pc |
Important Notice
This fixture is rated IP20 for indoor use only, in environments between 0°C and 40°C. This is a professional lighting fixture using a high-intensity lamp; allow for proper cool-down periods.
