ACS 4 Pack Aluminum Stage Light O-Clamps
Adjustable 3-Size Fit (1"/1.5"/2") · 15KG Load · High-Density ABS
Discover the ultimate in rigging versatility with the ACS 4-Pack Adjustable O-Clamps. Unlike standard metal clamps that only fit one size, these innovative clamps feature a removable insert system, allowing them to fit three distinct pipe diameters: 1" (25mm), 1.5" (38mm), and 2" (50mm). Constructed from high-strength Acrylonitrile Butadiene Styrene (ABS) plastic, they offer a secure, scratch-free grip on your truss. With a load capacity of 33lbs (15kg), they are the perfect lightweight solution for mounting LED Pars, effect lights, and spotlights for DJs, bars, and theaters.
Key Benefits
3-in-1 Adjustable Fit: Includes removable inserts to fit three common pipe sizes: 1 inch, 1.5 inch, and standard 2 inch (F34) truss.
Scratch-Free Material: Made from durable ABS plastic, these clamps will not scratch or damage your expensive aluminum trussing or lighting bars.

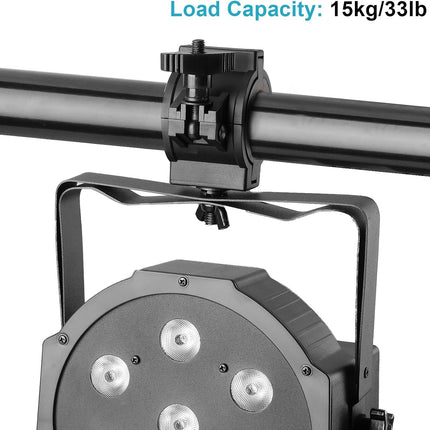

15KG Load Capacity: Sturdy enough to support up to 33 lbs (15kg), making it ideal for the vast majority of static stage lights and LED effects.
360° Wrap Security: The O-Clamp design wraps completely around the pipe for maximum stability and security, ensuring your lights stay exactly where you aim them.
Tool-Free Operation: Features a large wingnut for tightening the clamp and a standard 10mm bolt for attaching the fixture, requiring no tools for standard use.

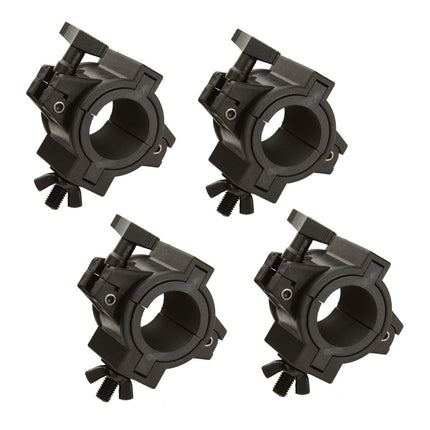

4-Piece Value Pack: This set includes 4 complete clamps with all necessary inserts, providing great value for mobile DJs and event planners.
How to Adjust Size
-
Mode 1 (1"/25mm): Use both inner inserts inside the clamp.
-
Mode 2 (1.5"/38mm): Remove the smaller inner insert, leave the larger one.
-
Mode 3 (2"/50mm): Remove all inserts to fit standard Global Truss/F34 pipes.

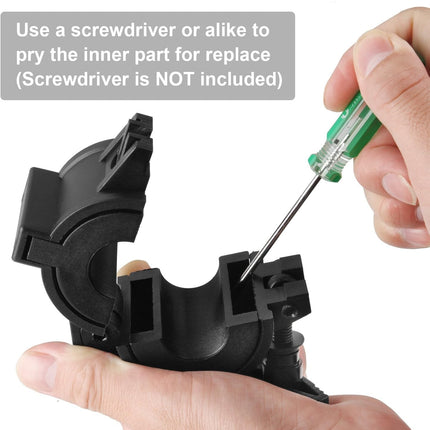

- Tip: Use a small screwdriver to gently pry out the inserts if they are tight.
One Clamp for All Pipes. Never worry about having the wrong size clamp again. Whether you are using a thin decorative bar or a heavy-duty main stage truss, these adaptable ABS clamps can handle the job while protecting your gear from scratches.

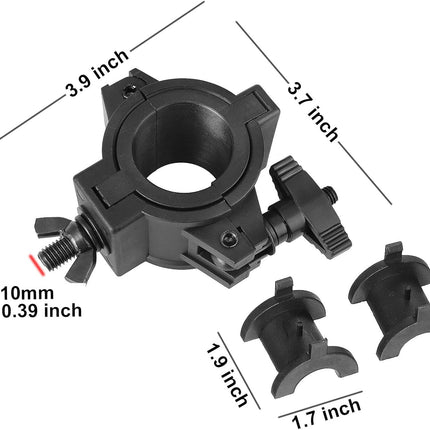

Technical Specifications
| Material |
High-Density ABS Plastic |
| Color |
Black |
| Fit 1 |
25 mm (1 Inch) - With inserts |
| Fit 2 |
38 mm (1.5 Inch) - With partial inserts |
| Fit 3 |
50 mm (2 Inch) - Without inserts |
| Load Capacity |
15 KG (33 lbs) |
| Threaded Bolt Size |
10 mm |
| Packing Quantity |
4 Pieces / Pack |
Have questions about compatibility?
Our expert team is available to ensure you get the right hardware for your stage.
Message us on WhatsApp
Frequently Asked Questions
Are these metal or plastic?
These clamps are made from high-quality, heavy-duty ABS Plastic. This material is chosen because it is strong, lightweight, and most importantly, it will not scratch or damage your truss pipes like metal clamps can.
Can I use this for a heavy moving head?
The maximum load capacity is 15kg (33 lbs). While this is sufficient for many small to medium fixtures, we recommend using our Heavy Duty Metal clamps (rated for 100kg) for heavy moving heads or large speakers.
Does it come with the inserts?
Yes! Each of the 4 clamps in the pack comes pre-loaded with the full set of inserts, ready to use out of the box.
What is the bolt size?
The clamp includes a standard 10mm threaded bolt for attaching your light fixture.
