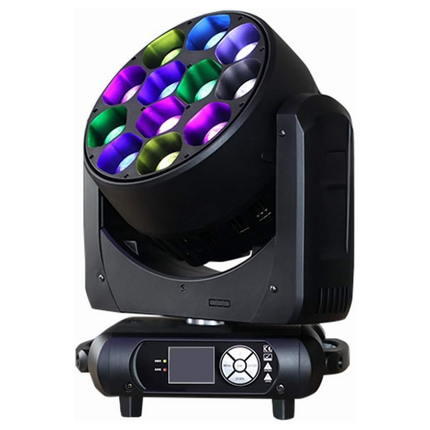

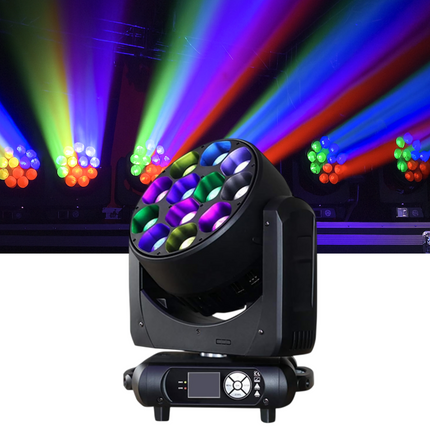

ACS 40W x 12 LED Zoom Moving Head Wash Light
12×40W Osram LED · Flexible Zoom · DMX512 Control
MOKA SFX EPL 12*40W ZOOM has 12 pieces of 40-watt 4-in-1 Osram lamp beads with a flexible focusing function, which can be used as both a dyeing lamp and a beam lamp. Multiple control modes to meet various needs, DMX512, master-slave, voice control, and program self-propelled. This moving headlight is suitable for various scenes, whether it is a bar, church, opera house, or private club. Using intelligent temperature control for heat dissipation the LED lamp's average life can reach 50,000 hours. Beam and wash function, amazing RGBW color mixing system which shows the best visual lighting effect.
Key Features ▼
- ✅ 12×40W 4-in-1 LED lamp beads with flexible zoom
- ✅ Multiple control modes: DMX512, master-slave, sound, auto

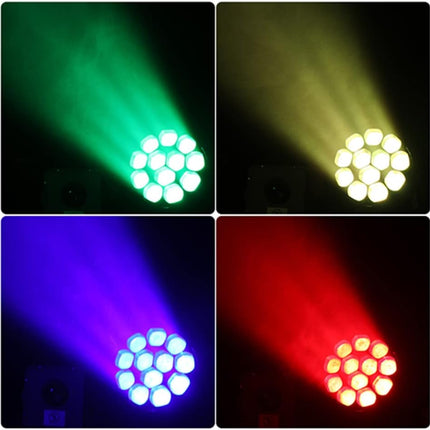

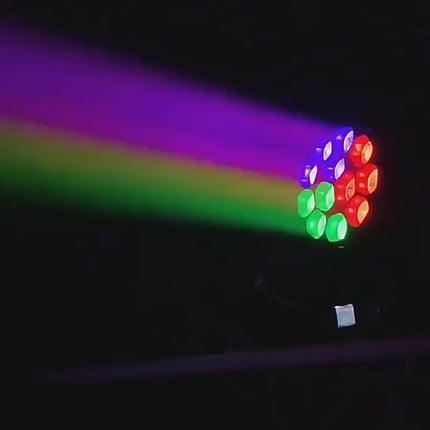

- ✅ Beam and wash function for dynamic effects
- ✅ Intelligent temperature control for longer lifespan

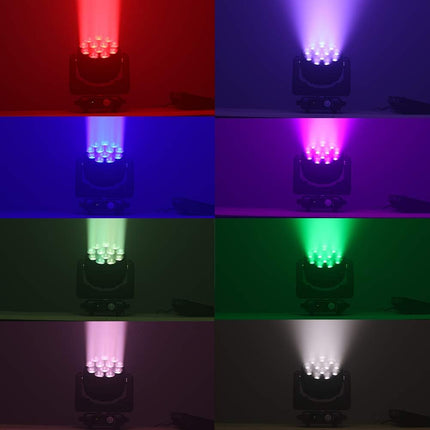

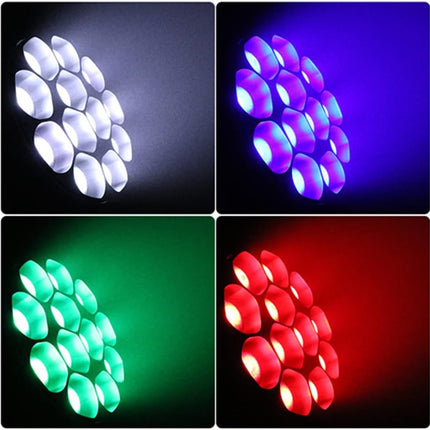

- ✅ RGBW color mixing with vibrant output
How To Use
- In order to ensure the service life of the product, this product should not be placed in a humid or leaking place, and it should not work in a place where the temperature exceeds 40℃.
- Do not place this product in a place where it is easy to loosen or vibrate.
- To avoid the danger of electricity, the maintenance of this product requires professional maintenance personnel.
- The power supply voltage change should not exceed ±10% when the light bulb is working. If the voltage is too high, the service life of the light bulb will be shortened. If the voltage is too low, the light efficiency will be affected.
- After the power is cut off, the lamps need to be fully cooled before being powered on again.
Maintenance
- The lamp should be kept dry and avoid working in a humid environment.
- Indirect use will effectively prolong the service life of the lamp.

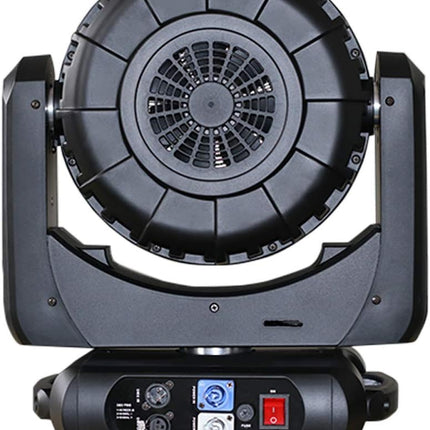

- To obtain a good ventilation and lighting effect, it is necessary to pay attention to cleaning the fan and lens frequently.
- Do not wipe the lamp housing with organic solvents to avoid damage.
Technical Specifications
| Power Voltage |
AC90-240V, 50/60Hz |
| Power Consumption |
550W |
| Light Source |
12×40W 4-in-1 LED |
| Zoom Range |
5–40° electronic zoom |
| Dimming |
0–100% smooth dimming |
| Strobe |
0–25Hz |
| Pan/Tilt |
540°/270° |
| Pan/Tilt Resolution |
16bit |
| DMX Channel |
19CH / 67CH |
| Control Mode |
DMX512, Master-Slave, Sound Slave |
| Dimensions |
47×40×27 cm |
| Weight |
14.3kg |
Important Notice
Please follow all installation and maintenance guidelines to extend product life and ensure safety during operation.
