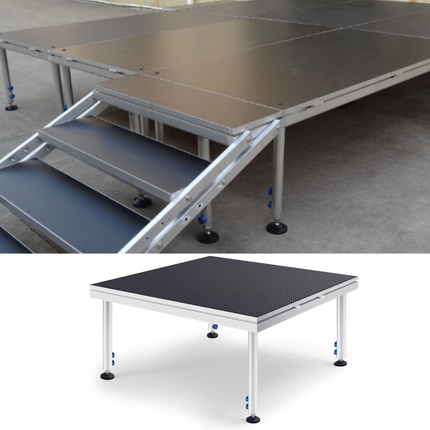

Aluminum Portable Stage with Height Adjustable Riser
Strong Aluminum Alloy · Lightweight & Portable · Adjustable Height
This compact portable stage is designed with a strong yet lightweight aluminum alloy frame and a height-adjustable riser equipped with leg levelers for use on uneven surfaces. It’s easy to transport and store, making it perfect for quick setups at any venue.
Built with high-strength materials to safely support heavy loads, it ensures maximum stability and safety for performers. The modular design allows multiple platforms to be connected for larger setups, while the simple tool-free assembly saves time on-site.
Key Features
Durable Construction: Aluminum alloy frame with a sturdy plywood deck.
High Load Capacity: Safely supports up to 750 kg/sqm (153 lbs/sqft).
Versatile Height Options: Multiple adjustable and fixed heights available.
Tool-Free Assembly: Quick and easy setup saves valuable time on-site.
Modular Design: Easily connect multiple platforms to create larger stages.
Lightweight & Portable: Compact and easy to transport for mobile events.
Technical Specifications
| Product Type |
Aluminum Portable Stage |
| Material |
Aluminum Alloy (6061-T6) + Plywood |
| Load-bearing Capacity |
750 kg/sqm (153 lbs/sqft) |
| Standard Platform Sizes |
1x1m, 1x2m, 1.22x1.22m, 1.22x2.44m |
| Deck Finish |
Carpet, Non-Slip Industrial, Paint, Plexiglass |
| Assembly |
Quick, Tool-Free Interlocking System |
| Application |
Stage Performances, Events, Concerts, Exhibitions |
Available Leg & Riser Options
Please Note: Our stages come standard with 60-100cm (24"-39") adjustable legs. If you require a different fixed or adjustable height from the options below, please contact us for a custom configuration.
| Part # |
Available Height |
| Includes cardan base for leveling on uneven ground. (50mm*3mm outer & 43mm*3mm inner tube). |
| ACSLEG3-5 |
30-50cm (12"-20") |
| ACSLEG4-6 |
40-60cm (16"-24") |
| ACSLEG5-8 |
50-80cm (20"-31.5") |
| ACSLEG6-10 |
60-100cm (24"-39") (Default) |
| ACSLEG7-12 |
70-120cm (28"-47") |
| ACSLEG8-14 |
80-140cm (31.5"-55") |
| ACSLEG9-16 |
90-160cm (35"-63") |
| ACSLEG10-18 |
100-180cm (39"-71") |
| Includes plastic base for flat surfaces. (50mm*3mm tube). |
| ACSLEG10 |
10cm (4") |
| ACSLEG20 |
20cm (8") |
| ACSLEG30 |
30cm (12") |
| ACSLEG40 |
40cm (16") |
| ACSLEG60 |
60cm (24") |
| ACSLEG80 |
80cm (31.5") |
Important Notice: Each unit is tested for load capacity and stability before shipment. For large configurations, please contact our team for layout planning.
