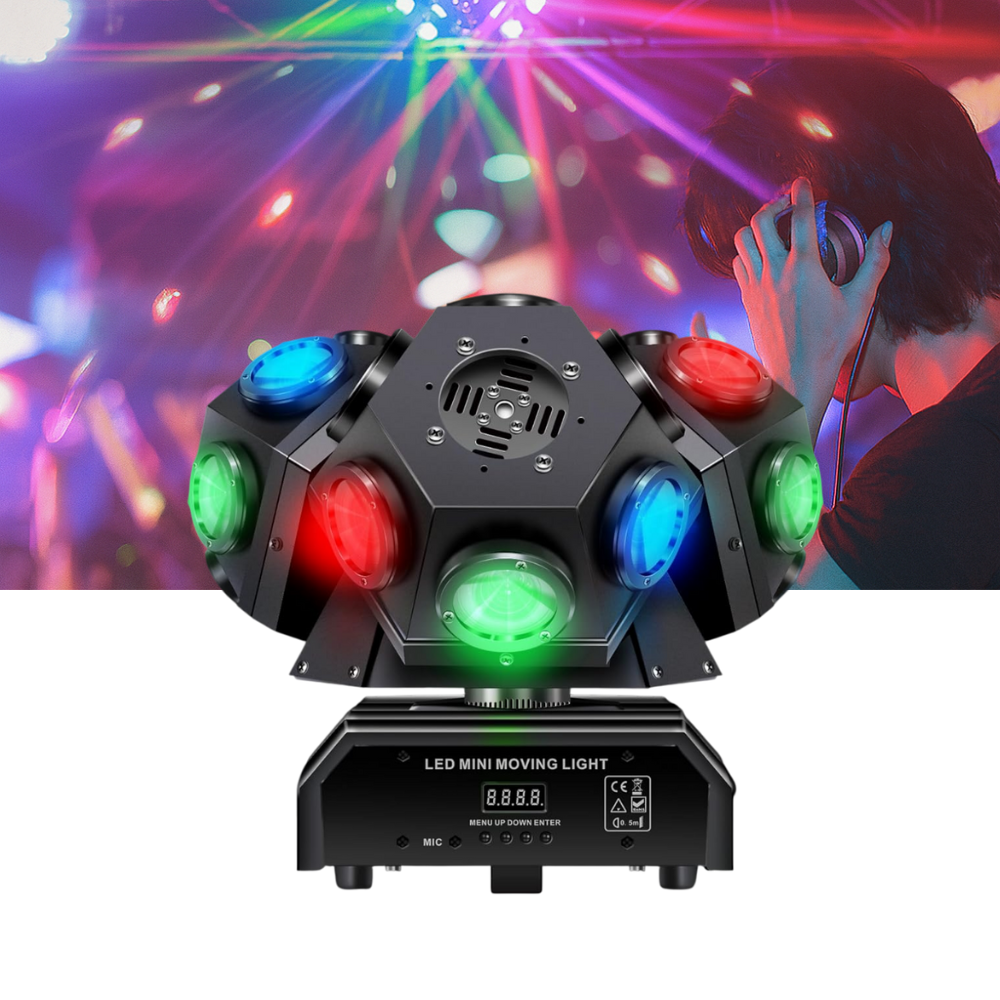

Three Head DJ Moving Head Light
18x10W RGBW LEDs · 3 Independent Rotating Heads · DMX & Sound-Activated
The Three Head Moving Head Light is a dynamic lighting solution designed to elevate any event. Featuring 18 powerful 10W RGBW (Red, Green, Blue, White) LEDs, this fixture produces brilliant, saturated colors and stunning mixed-beam effects. Its three independently controlled rotating heads fill the room with movement, making it perfect for DJs, birthday parties, discos, weddings, concerts, and churches. With versatile control options and easy setup, it’s the ultimate tool for creating a vibrant and romantic atmosphere.
Key Features ▼
- ✅ Powerful 180W Output: Equipped with 18 x 10W RGBW LEDs for bright, vivid color mixing.
- ✅ Triple Moving Heads: Three independently rotating heads create complex, room-filling beam patterns.
- ✅ Versatile Control Modes: Supports DMX512 (15CH), Auto, Sound-Activated, and Master-Slave operation.
- ✅ Easy Installation: Comes with mounting brackets and screws for quick setup on ceilings, trusses, or walls.
- ✅ Wide Application: Ideal for stages, KTV, clubs, weddings, family gatherings, and more.
Panel Operation & Mode Selection
- Use the [MENU] button to cycle through the settings on the LCD display until you see your desired mode (e.g., "AUTO" or "SOUND").
- Press the [UP] or [DOWN] buttons to adjust parameters if needed.
- Press the [ENTER] button to confirm your selection and activate the chosen mode.
- For DMX control, simply connect a DMX signal cable. The light will automatically detect the signal and switch to DMX mode.

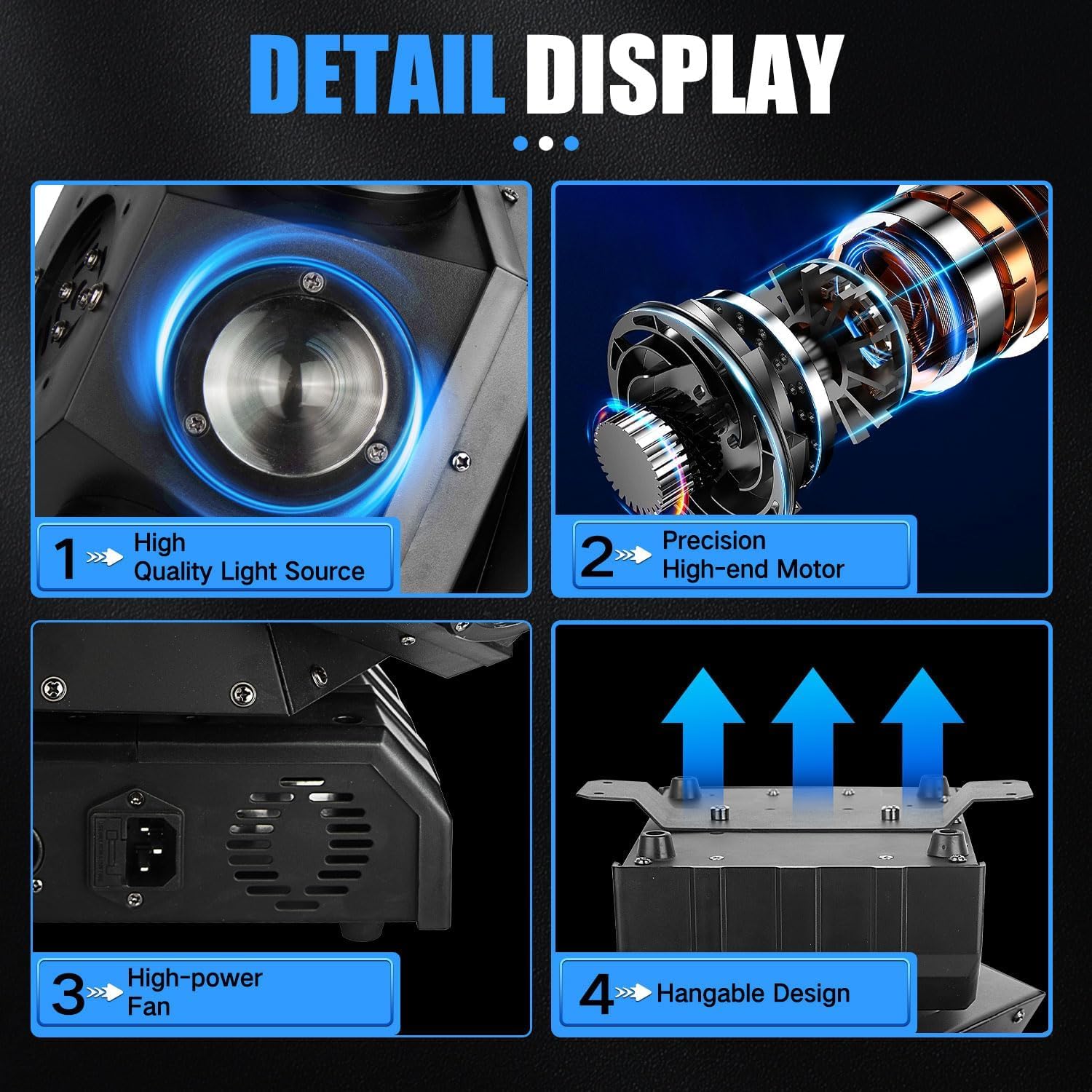

🤫 Quiet & Cool Operation: The built-in silent cooling fan ensures stable performance and rapid heat dissipation with minimal noise, keeping the focus on your show, not on distracting equipment sounds.

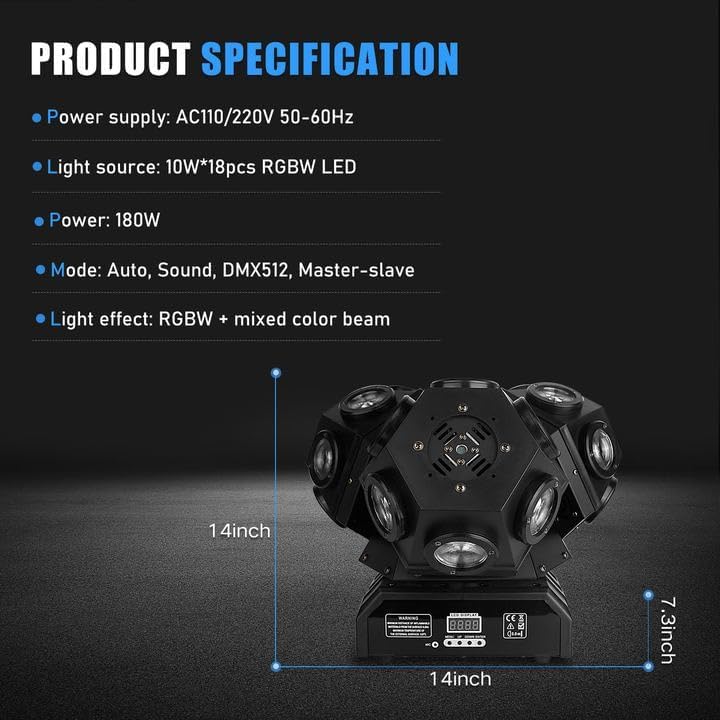

Technical Specifications
| Power Supply |
AC110V/220V, 50-60Hz |
| Total Power |
180W |
| Light Source |
18 x 10W RGBW LED |
| Light Effect |
RGBW + Mixed Color Beam |
| Control Mode |
Auto, Sound, DMX512, Master-Slave |
| DMX Channel |
15 Channels |
| Product Size |
14 x 7.3 x 14 inch |
| Weight |
17.6 lbs (approx. 8kg) |

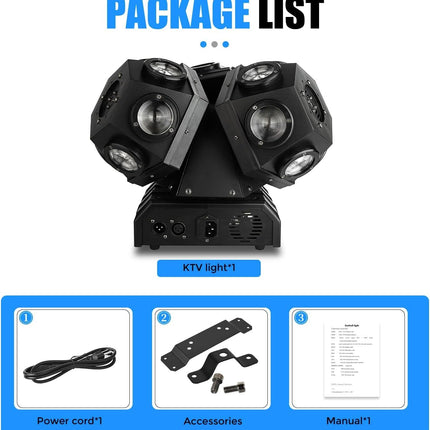

Packing List
| Item |
Qty |
| Three Head Moving Head Light |
1 pc |
| Power Cord |
1 pc |
| Mounting Accessories (Bracket & Screws) |
1 set |
| User Manual |
1 pc |
Important Notice
For safety, ensure the light is securely mounted. Maintain a minimum distance of 0.5m from flammable materials. Avoid looking directly into the high-intensity LEDs to prevent eye injury.
