ACS 8x6M Gable Roof System

Description

ACS 8x6M Gable Roof System

FT44 Main Grid · Robust Gable Design · High Load Capacity

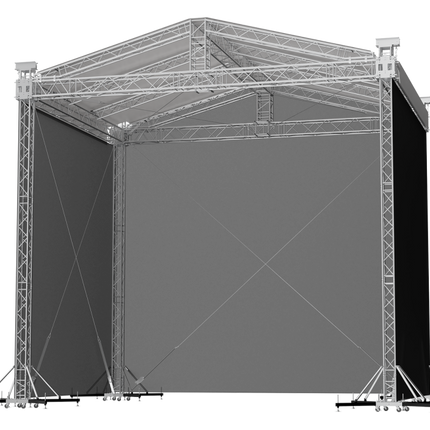

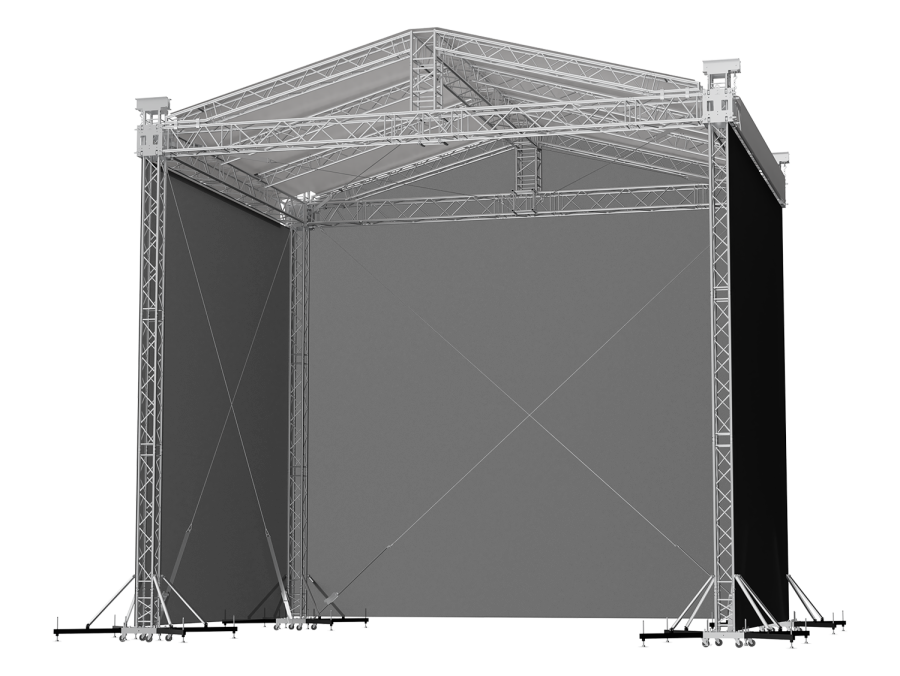

The ACS 8x6M Gable Roof System is the industry standard in aluminum truss temporary roof structures worldwide. Designed for versatility and strength, this Roof 2 system comes in multiple size variations to cover small to large events. The main rectangular grid is assembled on the ground and elevated using Tower 1 elevation systems.

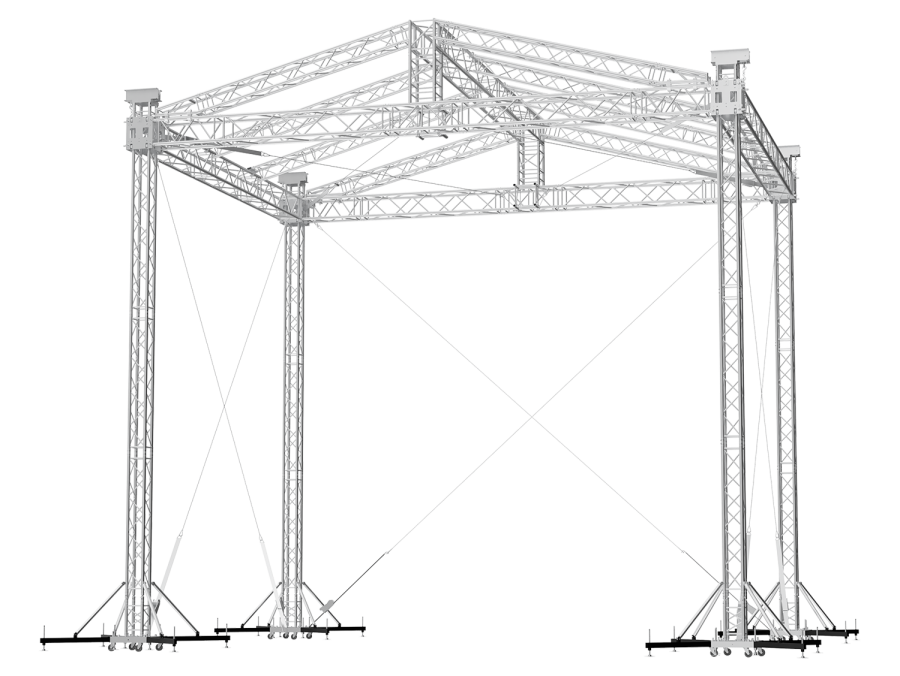

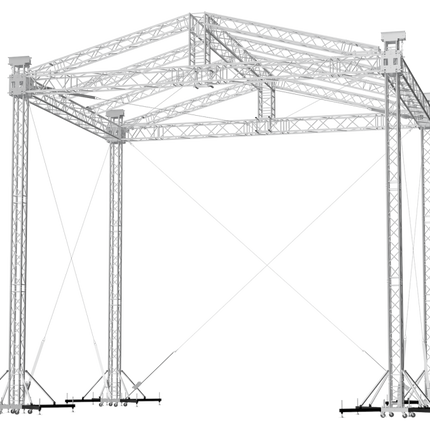

The grid uses FT44 trusses, while the front and rear rafters are FT34, with interior support from FT33 truss segments. Rafters are spaced 2m apart for proper canopy support, preventing water pockets. The system handles operational winds up to 20 m/s (45 mph) with side mesh canopies secured by guy wire cross bracing.

Key Features ▼

  • ✅ Gable roof design with strong FT44, FT34 & FT33 truss combination
  • ✅ Quick ground assembly and elevation with Tower 1 system
  • ✅ Inside rafters spaced 2m apart to prevent water pooling
  • ✅ Front/rear beams: 150 kg/m (101 lbs/ft) UDL, side beams: 100 kg/m (67 lbs/ft)
  • ✅ Max roof load capacity: 3500 kg (7,716 lbs)
  • ✅ Top canopy in silver grey or black SIO-LINE B 8000, 630 g/m²
  • ✅ Air-permeable mesh side walls included
  • ✅ Wind resistance up to 20 m/s with required guy wire bracing
  • ✅ Packed in cartons for secure transport

Need full load calculations or custom truss configurations? Message us on WhatsApp for technical support.

Technical Specifications

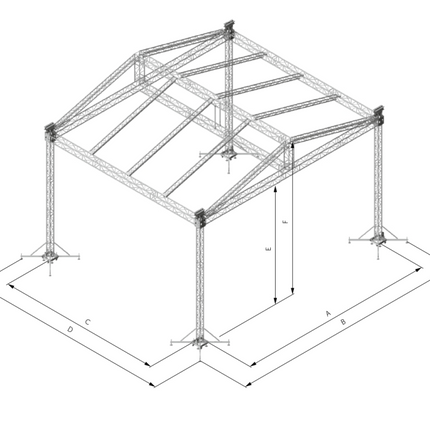

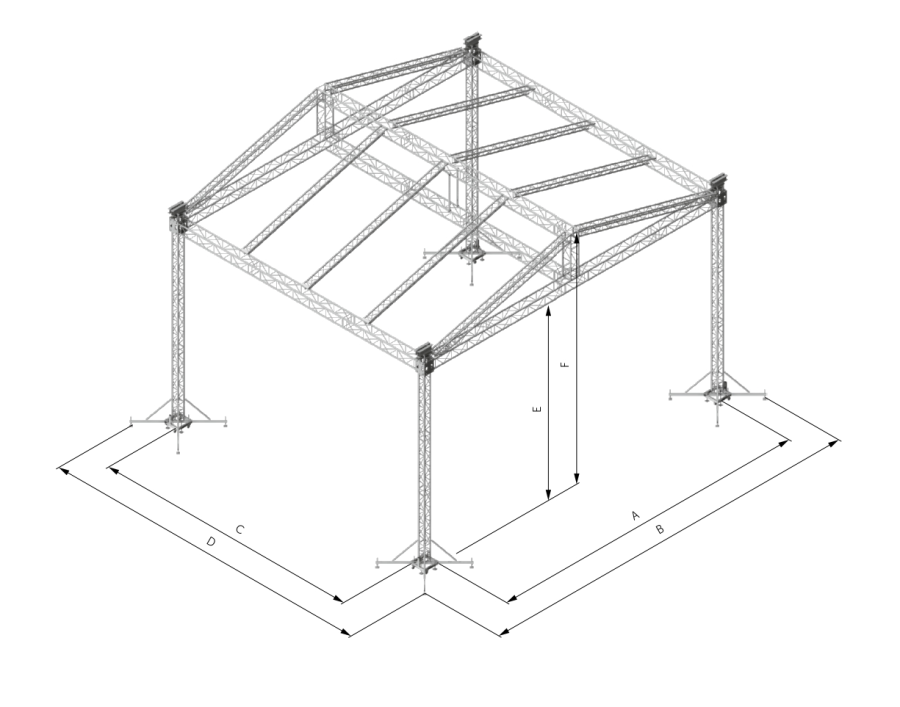

Max. Stage Size 8 x 6 m (26.25 x 19.69 ft)
Max. Dimensions 10.5 x 8.5 m (34.45 x 27.89 ft)
Max. Clearance 7 m (22.97 ft)
Max. Height 8.57 m (28.12 ft)
Max. Load Bearing Capacity 3500 kg (7,716 lbs)
Front/Rear Horizontal Beams UDL 150 kg/m (101 lbs/ft)
Side Horizontal Beams UDL 100 kg/m (67 lbs/ft)
Truss Used FT44 Main Grid, FT34 Rafters, FT33 Inside Rafters
Columns Tower 1 - TT34 Truss, Steel Base, Outriggers
Wind Resistance Up to 20 m/s (45 mph) with guy wire bracing
Ballast Option 2,100 kg per tower base (Total: 8,400 kg)
Transport Volume Approx. 16 m³ (565 cu ft)
Total Weight ca. 1,630 kg (3,594 lbs)

Important Notice

All guy wires must have tension capacity higher than required minimum load. Always check local wind and safety regulations before installation.
