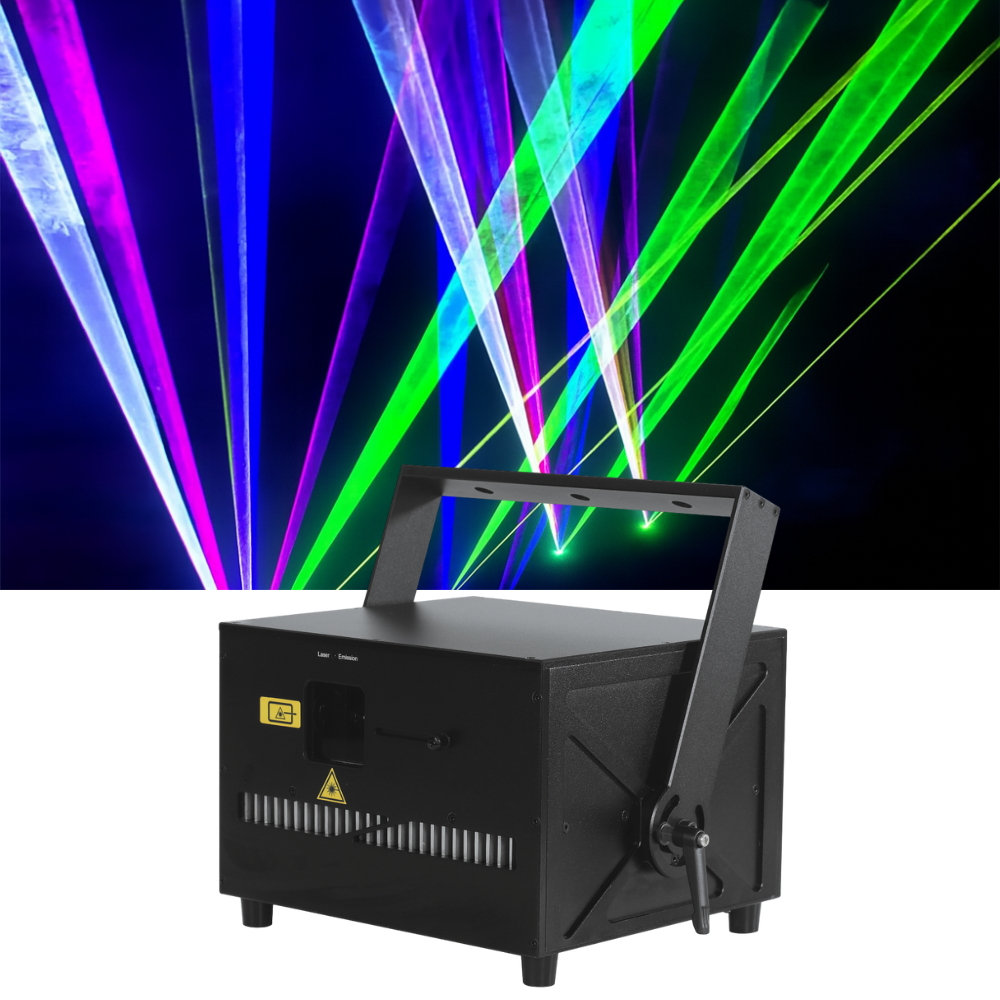

ACS AL-10W Animation RGB Laser Light
10W RGB 3in1 · 35Kpps Scanner · ILDA / DMX512 / Auto / Sound Control
The ACS AL-10W is a professional-grade RGB animation laser light designed for clubs, KTV, banquet halls, and stage productions. It features a 10W RGB single beam with a range up to 20 meters, 35Kpps high-speed scanner, and can output text, graphics, and custom animations. Built with an aluminum case, dual temperature control, and silent fan + TEC cooling, it ensures stable performance and durability.
The system supports ILDA, DMX512, sound-activated, auto, and master-slave modes, offering maximum flexibility for various applications.
Key Features & Advantages ▼
- ✅ 35Kpps Scanning Speed: Delivers smooth and precise patterns
- ✅ 10W RGB Single Beam: Bright and vivid, up to 20m range
- ✅ Flexible Control: ILDA, DMX512, Auto, Sound, Ethernet, SD Card
- ✅ Durable Aluminum Housing: Sleek design, rust-resistant, laser-printed logo
- ✅ Efficient Cooling: Dual temp control with silent fan + TEC heat sink
- ✅ Compact & Portable: Saves transport costs, easy to install and move
Technical Specifications
| Parameter |
Description |
| Product Name |
10W RGB Laser Projector |
| Power/Wavelength |
R: 3000mW 638nm, G: 3000mW 520nm, B: 4000mW 455nm |
| Divergence |
<1.3mrad |
| Control Mode |
ILDA, DMX512, AUTO, SOUND, Ethernet, SD Memory Card |
| Laser Source |
Semiconductor Diode |
| Modulation Mode |
Analog Modulation |
| Modulation Frequency |
100Hz |
| Scanner System |
35Kpps |
| Voltage |
AC 100-240V, 50/60Hz |
| Power |
160W |
| Cooling Way |
Fan Cooling + TEC |
| Working Temperature |
-10°C to 45°C |
| Size |
23.5 × 26.5 × 19 cm |
| Weight |
9.2 kg |
| Occasion |
KTV, Club, Banquet Hall, Stage |
Accessories
| Item |
Quantity |
| Laser Projector |
1 pc |
| Power Cord |
1 pc |
| Key |
1 pc |
| Interlock Connector |
1 pc |
| User Manual |
1 pc |
Q&A
Q: How do you choose a laser light?
A: Use different power levels for different venues. 1-6W for small parties, 10W for bars/clubs, 20-30W for concerts, 30-100W for outdoor landmarks. Contact us for professional guidance.
Q: Do your laser lights have a security key?
A: Yes, every unit includes a security key and standard interlock.
Q: Do I need to buy FB4?
A: It’s optional. The light works in self-propelled modes, but you can buy FB3/FB4 for custom patterns. Recommended site: https://pangolin.com/
