ACS 8 PCS Aluminum Alloy Stage Light Clamp

Description

ACS Aluminum Alloy Stage Light Clamp (8-Pack)

100KG Load Capacity · TUV Rheinland Certified · Fits 48-52mm Pipe

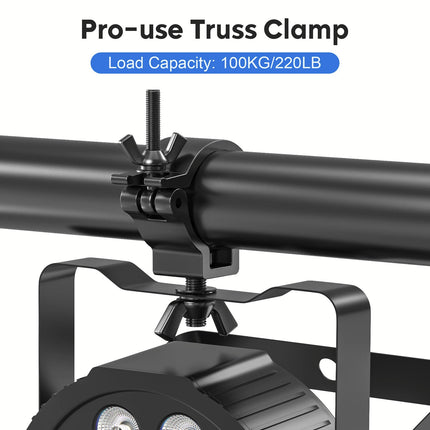

Secure your professional lighting equipment with confidence using the ACS Aluminum Alloy Stage Light Clamp. Engineered from premium 6061T6 aluminum alloy, these heavy-duty O-Clamps are designed to withstand the rigors of touring and stage production. With a TUV certification and a massive 220lb (100kg) load capacity, they provide a rock-solid mounting solution for moving heads, par cans, and spotlights. The precision-machined design ensures a perfect fit for standard 2-inch truss pipes, while the anodized black finish offers superior corrosion resistance and a sleek look for any stage setup.

Key Benefits

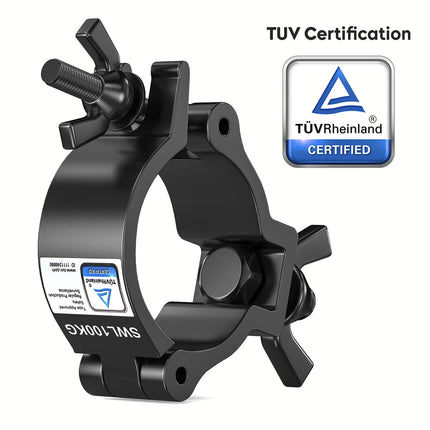

TUV Rheinland Certified: Rest easy knowing your rig is safe. These clamps have passed rigorous safety testing and certification standards for professional use.
Heavy-Duty 100KG Capacity: Despite their compact size, the robust construction supports a Safe Working Load (SWL) of up to 100kg (220 lbs) per clamp.
Premium 6061T6 Aluminum: Made from high-grade aerospace aluminum alloy that is lightweight, sturdy, and highly resistant to rust and corrosion.
Standard Truss Fit: Designed specifically for 48mm-52mm (1.9 - 2 inch) diameter pipes, making it compatible with the vast majority of F34 global truss systems.
Tool-Free Installation: Features a large, adjustable butterfly wingnut for easy tightening by hand, speeding up your setup and teardown times.
Secure Equipment Protection: The precision-molded design wraps fully around the pipe, preventing slippage and protecting your expensive lighting fixtures from falling.

Installation Instructions

  1. Loosen the top wingnut to open the O-Clamp mouth.
  2. Wrap the clamp around the truss or pipe (48-52mm diameter).
  3. Tighten the top wingnut securely to lock the clamp onto the pipe.
  4. Attach your lighting fixture bracket to the bottom 10mm bolt and tighten the nut firmly.

Professional Reliability. Cheap plastic clamps can crack under pressure. The ACS 6061T6 Aluminum clamps offer industry-standard durability and a certified 220lb load capacity, ensuring your show runs safely from start to finish.

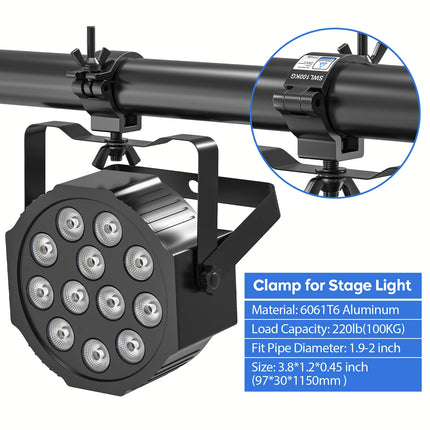

Technical Specifications

Material 6061T6 Aluminum Alloy
Color Black

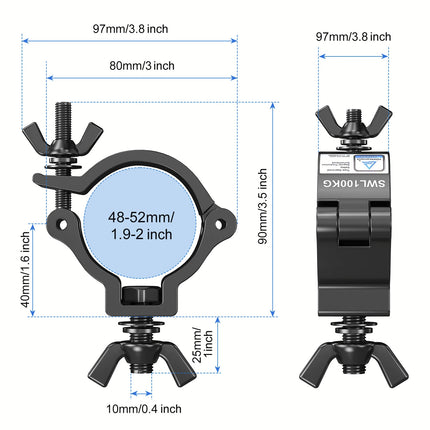

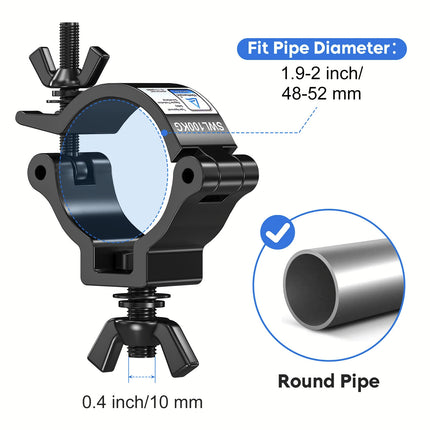

Fit Pipe Diameter 48-52mm (1.9 - 2.0 inches)
Load Capacity (SWL) 100 KG (220 lbs)
Clamp Width 30 mm
Bolt Size 10 mm Threaded Bolt
Certification TUV Rheinland, CE
Style Heavy Duty O-Clamp

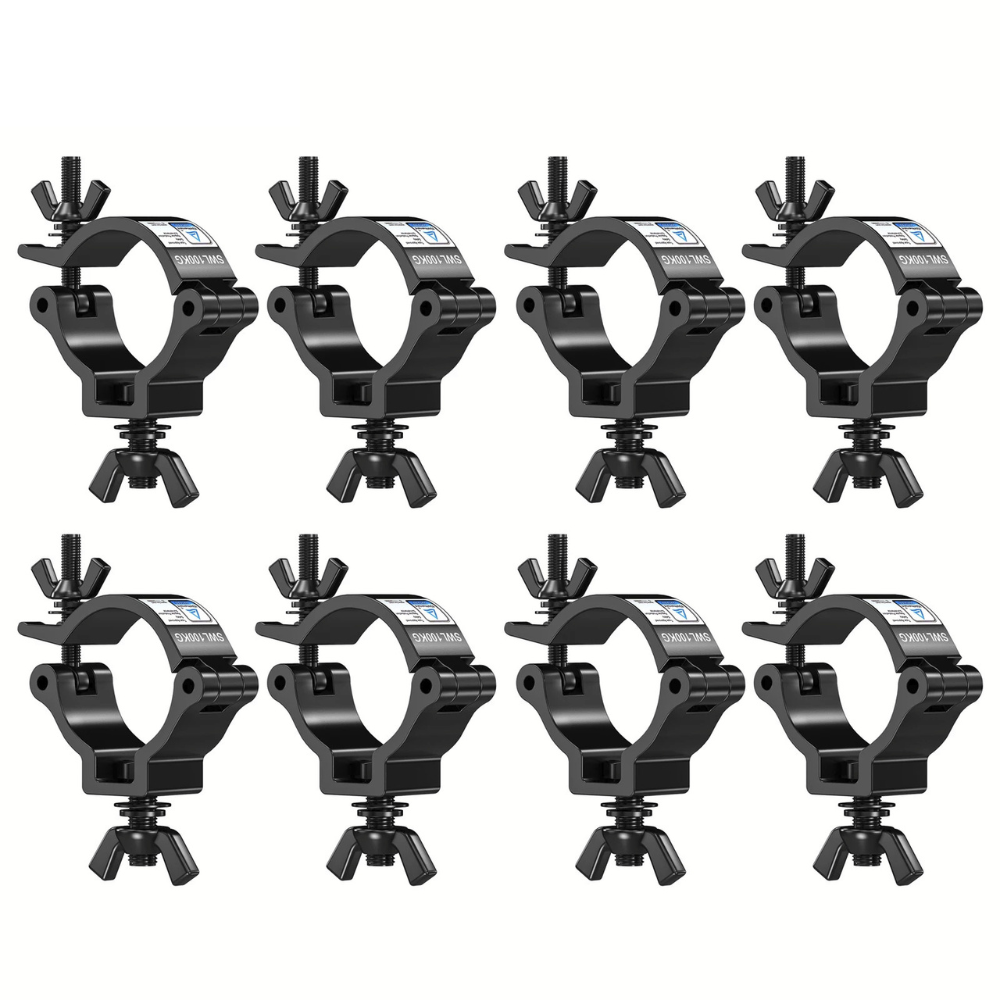

Packing Quantity 8 Pieces / Pack

Need help determining if this fits your truss?
Our expert team is here to provide guidance on stage rigging and hardware.

Message us on WhatsApp

Frequently Asked Questions

Will these clamps fit my truss?

These clamps are designed for pipes with a diameter between 48mm and 52mm (approx. 2 inches). This is the standard size for most professional Global Truss (F34) and similar heavy-duty stage truss systems.

What is the maximum weight I can hang?

The Safe Working Load (SWL) is 100KG (220 lbs). This is sufficient for most moving head lights, large par cans, and speakers. Please ensure your truss structure itself can also support the total weight.

Are these clamps rust-proof?

Yes. They are made from 6061T6 Aluminum Alloy which is naturally corrosion-resistant, and they are finished with a black coating for extra durability, making them suitable for both indoor and outdoor events.

What size bolt is included for the light?

Each clamp comes with a 10mm threaded bolt to attach to your lighting fixture's bracket. This is a standard size that fits most professional stage lighting equipment.

ACS 8 PCS Aluminum Alloy Stage Light Clamp

Product form
$98.00 Final price: $69.00, Save 30%

SKU: BCE-78999999

In stock - Shipped in 24 hours

    "Awesome"
    4.5/5 on
    • Direct from the Factory
    • Professional Technical Support
    • Customizable Solutions Available
      Why Choose ACS?

    1. Factory-Direct Pricing

    We cut out the middlemen so you get industrial-grade event gear at true factory prices — high quality, lower cost.

    2. Lifetime Support

    Our commitment doesn’t end after purchase. We provide lifetime technical support to help you get the most from your equipment, anytime you need it.

    3. Free & Reliable Global Delivery

    We ship worldwide with trusted carriers like DHL Express — always free, always trackable, and always reliable.

      Customer service

    We are listening to you from Monday to Saturday from 10 a.m. to 7 p.m.

    You can contact us via our contact form:

    Send us a message!

    Description

    ACS Aluminum Alloy Stage Light Clamp (8-Pack)

    100KG Load Capacity · TUV Rheinland Certified · Fits 48-52mm Pipe

    Secure your professional lighting equipment with confidence using the ACS Aluminum Alloy Stage Light Clamp. Engineered from premium 6061T6 aluminum alloy, these heavy-duty O-Clamps are designed to withstand the rigors of touring and stage production. With a TUV certification and a massive 220lb (100kg) load capacity, they provide a rock-solid mounting solution for moving heads, par cans, and spotlights. The precision-machined design ensures a perfect fit for standard 2-inch truss pipes, while the anodized black finish offers superior corrosion resistance and a sleek look for any stage setup.

    Key Benefits

    TUV Rheinland Certified: Rest easy knowing your rig is safe. These clamps have passed rigorous safety testing and certification standards for professional use.
    Heavy-Duty 100KG Capacity: Despite their compact size, the robust construction supports a Safe Working Load (SWL) of up to 100kg (220 lbs) per clamp.
    Premium 6061T6 Aluminum: Made from high-grade aerospace aluminum alloy that is lightweight, sturdy, and highly resistant to rust and corrosion.
    Standard Truss Fit: Designed specifically for 48mm-52mm (1.9 - 2 inch) diameter pipes, making it compatible with the vast majority of F34 global truss systems.
    Tool-Free Installation: Features a large, adjustable butterfly wingnut for easy tightening by hand, speeding up your setup and teardown times.
    Secure Equipment Protection: The precision-molded design wraps fully around the pipe, preventing slippage and protecting your expensive lighting fixtures from falling.

    Installation Instructions

    1. Loosen the top wingnut to open the O-Clamp mouth.
    2. Wrap the clamp around the truss or pipe (48-52mm diameter).
    3. Tighten the top wingnut securely to lock the clamp onto the pipe.
    4. Attach your lighting fixture bracket to the bottom 10mm bolt and tighten the nut firmly.

    Professional Reliability. Cheap plastic clamps can crack under pressure. The ACS 6061T6 Aluminum clamps offer industry-standard durability and a certified 220lb load capacity, ensuring your show runs safely from start to finish.

    Technical Specifications

    Material 6061T6 Aluminum Alloy
    Color Black
    Fit Pipe Diameter 48-52mm (1.9 - 2.0 inches)
    Load Capacity (SWL) 100 KG (220 lbs)
    Clamp Width 30 mm
    Bolt Size 10 mm Threaded Bolt
    Certification TUV Rheinland, CE
    Style Heavy Duty O-Clamp
    Packing Quantity 8 Pieces / Pack

    Need help determining if this fits your truss?
    Our expert team is here to provide guidance on stage rigging and hardware.

    Message us on WhatsApp

    Frequently Asked Questions

    Will these clamps fit my truss?

    These clamps are designed for pipes with a diameter between 48mm and 52mm (approx. 2 inches). This is the standard size for most professional Global Truss (F34) and similar heavy-duty stage truss systems.

    What is the maximum weight I can hang?

    The Safe Working Load (SWL) is 100KG (220 lbs). This is sufficient for most moving head lights, large par cans, and speakers. Please ensure your truss structure itself can also support the total weight.

    Are these clamps rust-proof?

    Yes. They are made from 6061T6 Aluminum Alloy which is naturally corrosion-resistant, and they are finished with a black coating for extra durability, making them suitable for both indoor and outdoor events.

    What size bolt is included for the light?

    Each clamp comes with a 10mm threaded bolt to attach to your lighting fixture's bracket. This is a standard size that fits most professional stage lighting equipment.
