ACS CL-147 DMX MINI CO2 Confetti Cannon Machine
10–13m Spray Height · 45°–90° Adjustable · DMX + Electronic Control

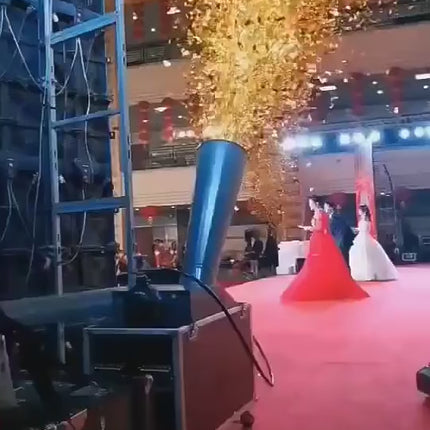

The ACS CL-147 is a compact yet powerful mini CO2 confetti cannon designed for professional events, stages, and celebrations. With an advanced quick-connect structure and DMX control compatibility, this device ensures safe, synchronized performance in any environment.
Engineered with adjustable angle projection (45°–90°), this machine delivers high-pressure CO2 blasts up to 13 meters and colorful confetti to heights of 10 meters. Ideal for covering up to 300 square meters of open space.
Key Features ▼
- ✅ DMX + Electronic Control: Dual-mode operation prevents misfire timing across teams
- ✅ Adjustable Nozzle: 45° to 90° projection angle for broader coverage
- ✅ Spray Distance: Confetti: 10–13m, CO2 gas jet: up to 13m
- ✅ Quick-Connect Design: Easy setup without the need for tightening screws
- ✅ Durable Build: Stable aluminum horn and compact body
Technical Specifications
| Attribute |
Details |
| Voltage |
AC110V–220V 50–60Hz |
| Spray Height |
10–13 meters |
| Coverage |
200–300 m² |
| Control Modes |
DMX, Electronic |
| Color Paper Capacity |
2kg sequin or 1kg regular |
| Angle Adjustment |
45°–90° |
| High-Pressure Pipe |
3m included, 3/8 quick connector |
| DMX Channel |
1 channel |
| Product Size |
54x29x63.5cm (no horn); 54x29x100.5cm (with horn) |
| Net Weight |
18.5kg |
How To Use
- Unpack and check accessories. Read the manual thoroughly.
- Fill the cylinder with carbon CO2 or N2 gas.
- Connect the hose from the gas bottle to the machine.
- Secure the tank and keep flat.
- Load confetti paper and adjust the projection angle.
- Turn on the valve and trigger the launch as needed.
Packing List
- ✓ 1 x MINI CO2 Confetti Cannon Machine
- ✓ 1 x DMX Cable
- ✓ 1 x Manual
- ✓ 1 x 3M Gas Hose
Q&A
Q: How long is the spray duration?
A: A 40L cylinder supports approx. 40 seconds of continuous use per cannon.
Q: Can I link one cylinder to multiple machines?
A: One cylinder can support up to two machines, but optimal pressure is with one.
Q: Is DMX signal cable included?
A: Yes, we include a 2-meter DMX cable with each unit.
