ACS 650W Hanging Cold Spark Machine
Hanging & Vertical Spray · 1-5 Meter Height · DMX & Remote Control

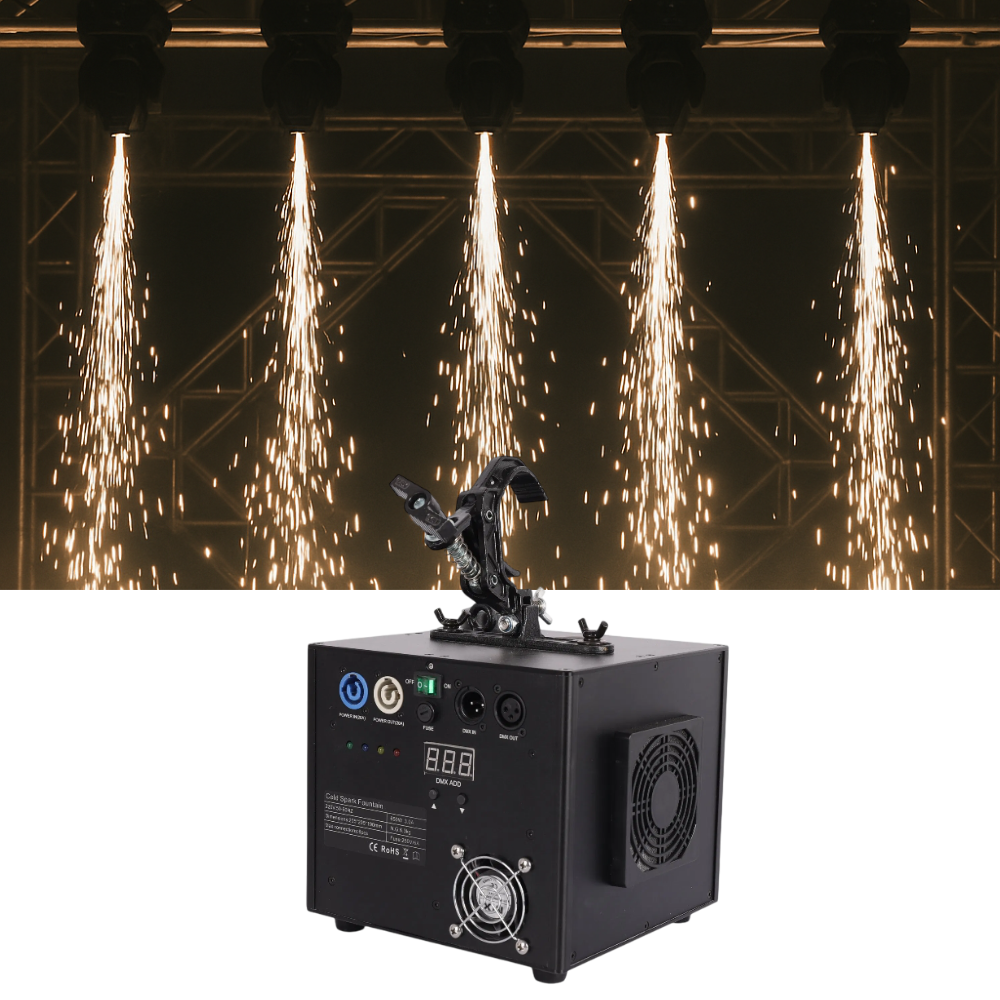

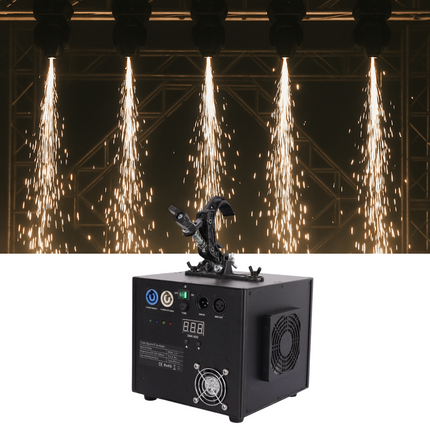

Create spectacular downward "waterfall" effects with the ACS 650W Hanging Cold Spark Machine. Specifically designed to be hung from trusses, this machine offers diversified spraying methods, including both hanging and standard vertical sprays. It produces safe, harmless, and odorless cold sparks that can reach fantastic heights of up to 5 meters. With dual control via 2-channel DMX and a wireless remote, you have the flexibility to match any event's requirements, making it a versatile choice for professional stage effects.
Key Features
Diversified Spraying Methods: Designed for both hanging spray (downward) and standard vertical spray (upward).
Truss-Ready Design: Equipped with a high-quality light hook for easy and secure mounting on trusses.
Powerful Spark Height: Sprays cold sparks to an adjustable height of 1-5 meters for fantastic effects.
Dual Control Options: Operate via 2-channel DMX 512 for precise control or the included wireless remote for convenience.
Safe & Odorless: A perfect and safe alternative to traditional pyrotechnics, suitable for any venue.
Efficient Cooling: A built-in fan provides fast heat dissipation, extending the lifespan of the machine.
How To Use
- Add titanium powder to the machine's reservoir (up to 250g).
- Connect the power cable and turn the machine on.
- The machine will start heating, indicated by the RED "HEAT" light.
- Wait for the GREEN "READY" light to indicate the warm-up is complete.
-
For DMX Control: Use Channel 1 to start heating and Channel 2 to control the spray height.
-
For Remote Control: Use the remote to select from 3 height options and built-in effects.
- After use, run the cleaning function (via DMX or remote "CLE" key) to clear remaining powder.
Technical Specifications
| Power |
650W (6A @ 110V / 3A @ 220V) |
| Voltage |
AC 110V / 220V, 50/60Hz |
| Spark Spray Height |
1-5 meters |
| Control Mode |
2-Channel DMX 512 / Wireless Remote Control |
| Pre-heating Time |
Less than 8 minutes |
| Fuse |
10A (110V) / 6A (220V) |
| Weight |
6.5 kg |
| Product Size |
20 x 20 x 20 cm |
| Warranty |
1 Year |
Packing List For Each Unit
| Item |
Qty |
| Hanging Cold Spark Machine |
1 pc |
| Wireless Remote Controller (no battery) |
1 pc |
| Power Cable |
1 pc |
| DMX Cable |
1 pc |
| User Manual |
1 pc |
Frequently Asked Questions
Will this machine cause a fire or set off a smoke alarm?
Our spark machines can be used indoors and outdoors. As long as it is kept at a relatively safe distance, it will not cause a fire or cause the smoke alarm to go off. Our machine is equipped with a safety channel; when the machine is tilted more than 45 degrees, the spark machine will immediately stop working to improve the safety of use.
Do I need a special license to operate this machine?
Based on our customer experience across Europe, America, and other countries, no special security clearance or license is required to operate our spark machines.
How high can the sparks spray?
Indoor powder can spray 1-3M; Outdoor powder can spray 2-5M.
What are the control modes?
DMX 512 and wireless remote control.
What is the consumable used?
The consumable is Titanium Alloy powder, available in indoor and outdoor versions which determine the spray height.
How long does one bag of powder last?
One 200g bag can provide 15-20 minutes of continuous spray time.
Can I adjust the height of the spark?
Yes, you can adjust the spray height using the DMX controller or the wireless remote.
Can I control multiple machines at once?
Yes. You can control multiple machines with a single DMX controller or wireless remote. Simply set the same address code on each machine.
Where can I buy the powder?
You can purchase it from us, your local market, Amazon, or eBay.
Why can't the machine preheat?
Possible reasons include: 1) The heater is broken, 2) There is a mainboard issue, or 3) The temperature probe is faulty.
Can non-hanging spark machines be used upside down?
No, they can't. Only machines specifically designed for hanging, like this one, can be used for downward effects.
What happens if I connect more than 6 machines?
Connecting more than 6 machines to a single power circuit may cause damage or fire due to excessive current draw.
What is the pre-heating time?
The initial preheating time is 4-6 minutes. Subsequent warm-ups are much faster, taking about 1 second for every degree of temperature needed from its last use.
What is the temperature of the spark?
The spark temperature is controlled by a detector and is typically around 40-60°C, making it safe.
What is the warranty period?
The warranty period is one year.
