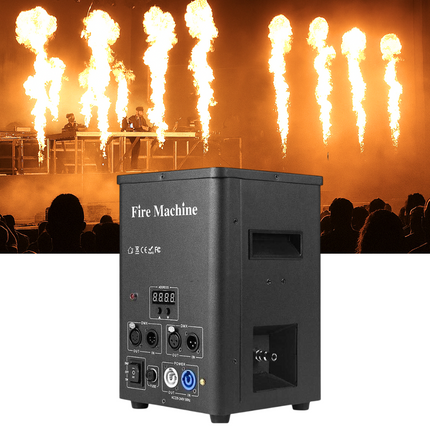

ACS FX-1L 80W LPG Single Head Flame Machine with Safe Channels

Description

ACS FX-1L 80W LPG Single Head Flame Machine with Safe Channels

High-Quality LPG Valve · DMX512 & Electric Control · Up to 3M Flame Height

The ACS FX-1L is a professional single-head flame machine designed for reliability and safety. It operates on Liquefied Petroleum Gas (LPG) and features both DMX512 and simple electric control for versatile operation. With its updated high-quality valve and igniter, it boasts a 99% ignition success rate, producing stable and impressive flame effects up to 3 meters high. Built-in safety features, including a dedicated DMX safety channel and a tilt sensor, prevent accidental firing and ensure safe use in any stage production or event.

Key Features ▼

  • ✅ High-quality valve and igniter for reliable performance.
  • ✅ Built-in tilt sensor for instantaneous power cut-off if the machine is dropped or tilted.
  • ✅ Simple operation with both DMX512 and direct electric control modes.
  • ✅ Features a dedicated DMX safety channel to prevent accidental firing.
  • ✅ Designed exclusively for use with Liquefied Petroleum Gas (LPG).

Have questions about using LPG fuel or DMX setups? Chat with our experts on WhatsApp for support.

How To Use

  1. Securely connect the LPG (liquefied petroleum gas) tank to the flame machine using the provided gas pipe.
  2. Connect the power supply and turn on the switch. Connect the machine to a DMX controller using the DMX cable and set the DMX address. The machine will perform a self-check, and the indicator lamp will flicker. Once a valid DMX signal is detected, the display will light up.
  3. The machine has a safety channel. It will only operate when DMX Channel 1 is set to a value between 100–155. Use the subsequent channels to trigger the flame.
  4. After use, turn off the power and disconnect the power, signal, and gas lines.
  5. Wait 15 minutes for the ignition needle to cool completely, then remove any remaining fuel and wipe the machine clean.

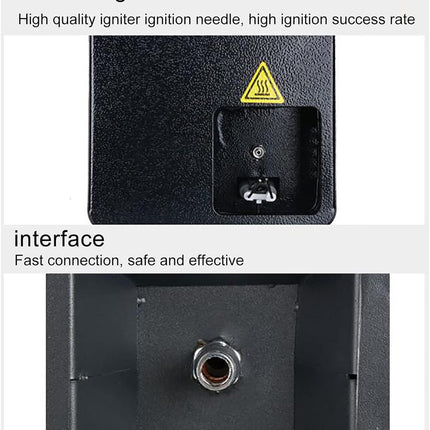

🔥 99% Ignition Success Rate: Featuring an upgraded valve and high-efficiency igniter, the FX-1L delivers a reliable and immediate flame effect every single time. Perfect for moments that can't be missed!

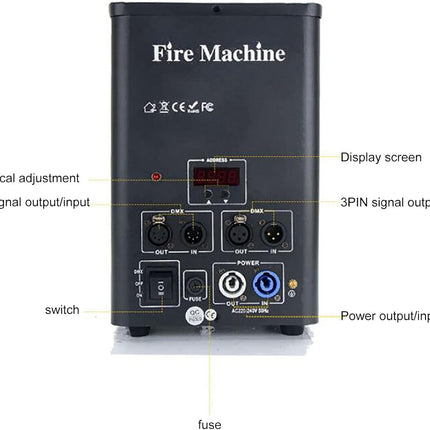

Technical Specifications

Voltage AC 110/230V, 50/60Hz
Power 80W
Flame Height 1–3 meters
Control Mode DMX512 / Electric Control
DMX Channels 2
Fuel Type Liquefied Petroleum Gas (LPG)
Ignition High-Quality Pulse Igniter
Net Weight 4.1 kg
Gross Weight 5 kg
Certificates CE, RoHS, FCC
Warranty 1 Year

Packing List

Item Qty
ACS FX-1L Flame Machine 1 pc
Power Cord 1 pc
DMX Cable 1 pc
Gas Pipe 1 pc
Hose Clamp 2 pcs
Quick Connector 1 pc
User Manual 1 pc

Important Notice

Before using this product, please read the operating guide carefully. Performance may be affected by strong wind. Please Note: All machines are sold without a DMX controller. If you need one, you can purchase one here.

FAQs ▼

  • Q: If I use this flamethrower, will it cause a fire or set off a smoke alarm?
    A: Our flame machine can be used indoors or outdoors. As long as it is kept at a safe distance from flammable materials, it will not cause a fire or trigger a smoke alarm. The machine is equipped with a safety tilt switch; when tilted more than 45 degrees, it will immediately stop working.
  • Q: What is the dumping switch?
    A: The dumping switch (or tilt sensor) is a safety feature. When the machine tilts over 45°, the power will be cut off automatically and the flame projector will stop instantly, ensuring the security of the event.
  • Q: What is the safe channel?
    A: When you use a DMX controller, Channel 1 is a dedicated safety channel. A value of 102–153 must be sent on this channel to "open" the machine, allowing it to work. This prevents accidental flame bursts.
  • Q: What are the control modes?
    A: DMX Control and Electric Control. DMX control means connecting a DMX cable to a controller for precise command. Electric control means the machine works when powered on and stops when powered off.
  • Q: What should I do if the machine sprays fuel but doesn't catch fire?
    A: The angle of the ignition pin may be misaligned with the nozzle. Please carefully adjust the angle of the ignition pin to align with the nozzle and try again. Ensure the machine is off and cool before adjusting.
  • Q: What should I do if the machine keeps firing continuously?
    A: First, confirm all procedures are being followed correctly. Cut the power and operate it again. If it fails, the cause may be a broken valve. Please cut off the power and gas, and contact us to replace the valve.
  • Q: What should I do if the product is broken during the warranty period?
    A: Don't worry, ACS has a professional team to help you solve all problems with our products in time. Please send us pictures or videos of the problem. We will guide you on how to fix it and provide spare parts for free if needed.
