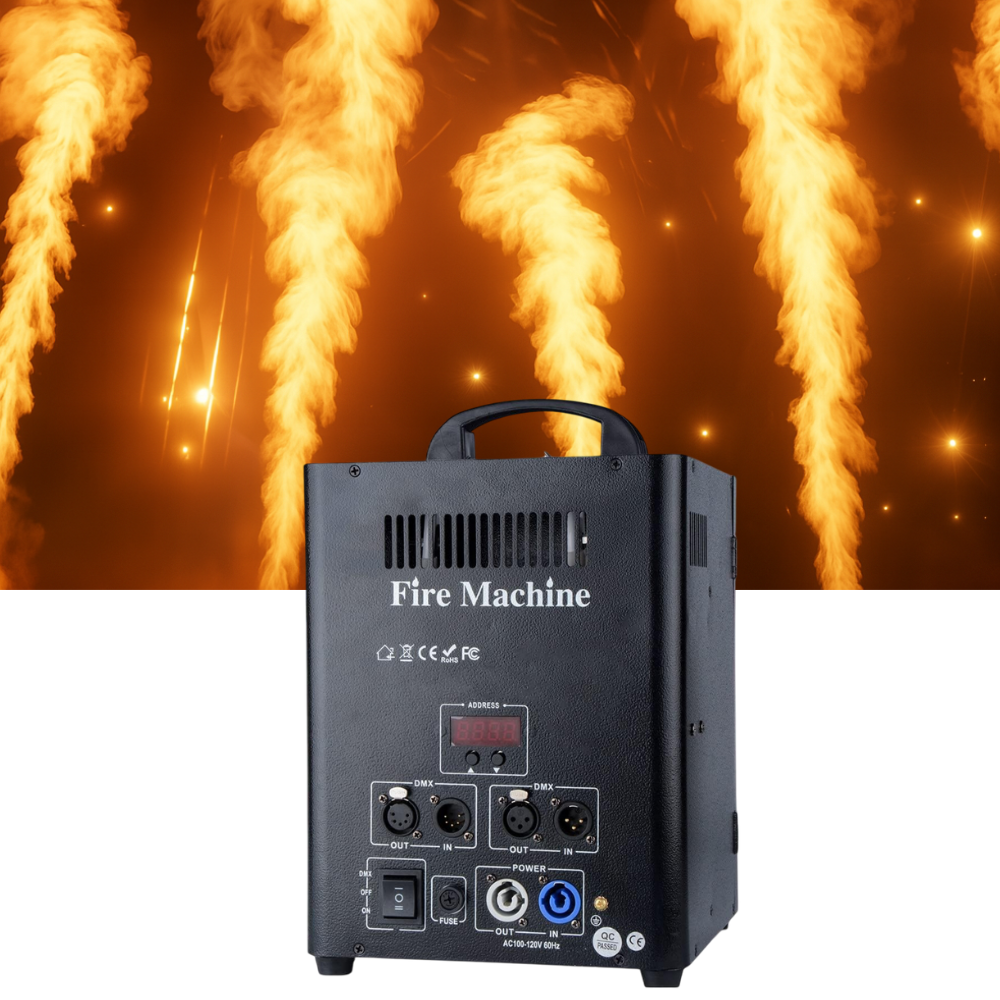

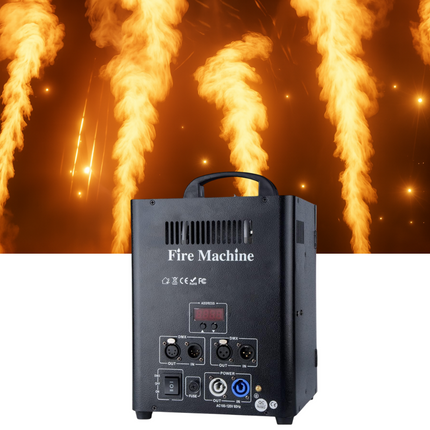

ACS FX-2 120W Double-Head Flame Powerful Machine
DMX Control · 3M Spray Height · Safe Channel System
The ACS FX-2 is a compact and powerful flame machine using DMX512 control and electric ignition. It’s designed for stage performances, outdoor festivals, and grand openings, with a spray height of up to 3 meters and a high ignition success rate.
Featuring a safety channel, pulse igniter, and user-friendly LCD interface, this unit offers safe and reliable operation. Lightweight yet effective, the FX-2 fits into any professional setup requiring controlled flame effects.
Key Features ▼
- ✅ DMX512 Control: Supports standard DMX input and safety control protocol
- ✅ High Spray Height: Shoots flame up to 3 meters for maximum visual effect
- ✅ Pulse Igniter: Fast ignition with success rate of up to 99%
- ✅ Compact Design: Easy to operate with LCD interface and addressable settings
- ✅ Safe Operation: Includes safety channel and automatic shutoff at >45° tilt
Looking for a better price or technical advice? Message us on WhatsApp for an exclusive quote and full support from our in-house engineering team. We're happy to help—no matter the order size.
Technical Specifications
| Attribute |
Details |
| Voltage |
AC110/220V 50-60Hz |
| Flame Height |
3 meters |
| Control Mode |
DMX512 + Electric |
| DMX Channels |
2 (Safety + Spray) |
| Power |
120W |
| Net Weight |
6kg |
| Gross Weight |
7kg |
| Package Size |
29x29x39cm |
| Color |
Fire red (depends on flame oil) |
| Warranty |
1 year |
| Certification |
CE, RoHS, FCC |
How To Use
- Place 2 flame oil cans into the machine and close the lid securely.
- Connect power and DMX cable. Set the address via LCD and power on.
- Ensure Channel 1 (safety) is open, then use Channel 2 to spray.
- Turn off power and unplug cables after use.
- Wait 15 mins before removing oil and cleaning the unit.
Packing List
- ✓ 1 x FX-2 Flame Machine
- ✓ 1 x Power Cord
- ✓ 1 x DMX Cable
- ✓ 1 x User Manual
Important Notice
Shipping does not include flame oil due to safety regulations. Please source fuel locally in your country.
Q&A
Q: Where can I buy flame oil?
A: We recommend checking Amazon (Valvoline Starting Fluid) or local effect supply stores.
Q: Can I use the FX-2 indoors?
A: Yes, with proper ventilation and enough ceiling clearance. Always follow safety guidelines.
Q: How high can the FX-2 spray flame?
A: 3 meters using standard flame fluid.
Q: Do I need DMX to operate it?
A: Yes, this model requires a DMX controller. Please purchase separately if you don’t have one.
Q: Is it safe for beginner operators?
A: Yes. The machine includes a safety channel, tilt cutoff, and detailed instructions to ensure safe usage.
Q: What if the ignition fails?
A: Ensure fuel is aligned and the ignition pin isn’t bent. Check valve and connections. See manual troubleshooting guide.
Q: How long does 1 bottle last?
A: Around 60–70 seconds of spray (200ml).
Q: Can I use third-party flame oil?
A: Yes, but ensure compatibility (diethyl ether-based preferred).
