ACS 650W Horizontal Cold Spark Machine
45-Degree Oblique Spray · 1-5 Meter Height · DMX & Remote Control

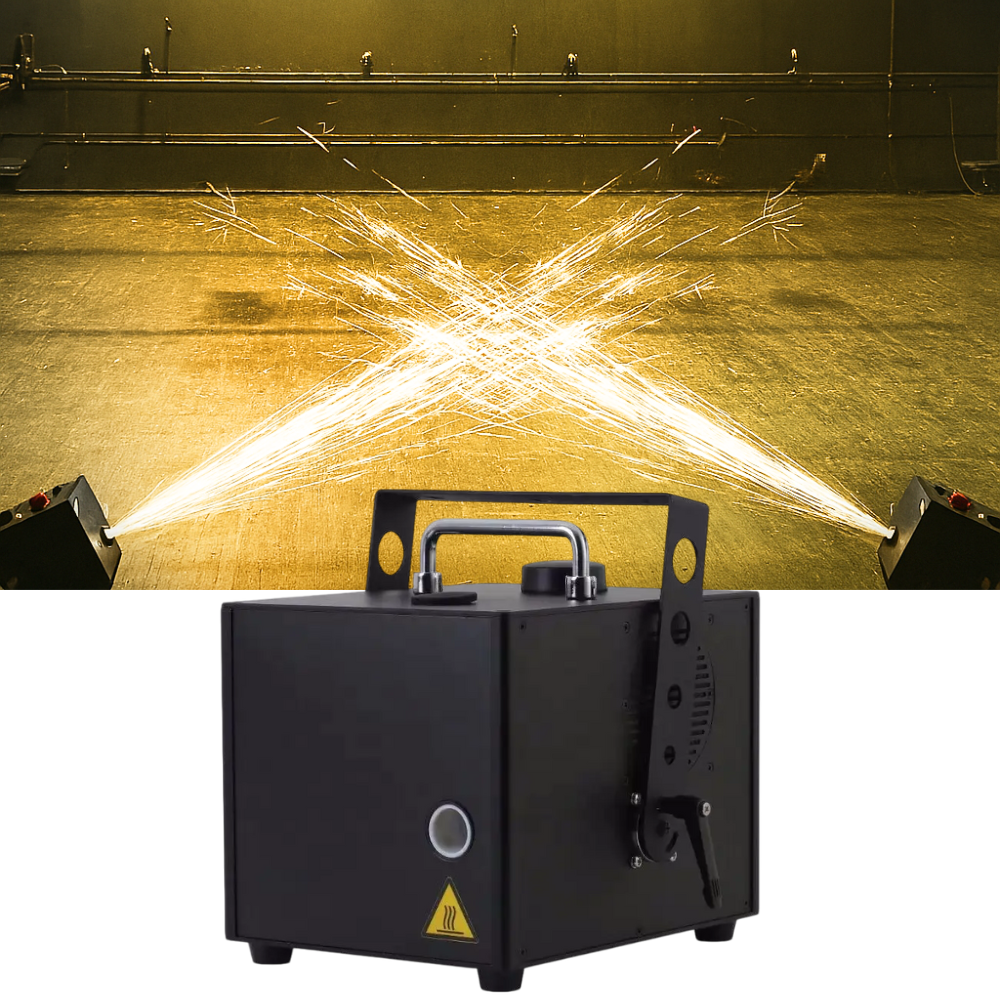

Expand your creative possibilities with the ACS Horizontal Cold Spark Machine. Unlike standard vertical units, the 650W Cold Spark Machine is specifically engineered to spray at a fixed 45-degree angle, making it the perfect tool for creating cross-fire effects, stage borders, and dynamic angled displays. It complements traditional spark machines perfectly, adding a new dimension to television performances, large outdoor disco shows, concerts, and parties. With DMX and remote control, this machine is an essential and easy-to-use component for any professional stage effects setup.
Key Features
45-Degree Horizontal Spray: Purpose-built for stable and consistent oblique sprays to create unique visual angles.
Powerful 1-5 Meter Effect: Delivers a strong spark fountain that can be adjusted in height for any venue size.
Dual Control Options: Operate via DMX 512 for professional integration or the included wireless remote for fast setup.
Durable Aluminum Housing: Built with a high-quality aluminum shell for reliability and professional road use.
Need help or wholesale pricing?
Contact our team for one-on-one guidance, quotes, and engineering support.
Message us on WhatsApp
Maintenance and Use
- Position the machine on a stable, flat surface, ensuring the 45-degree nozzle is aimed in a safe, open direction.
- Fill the hopper with titanium powder and connect the power cable.
- Turn the unit on and allow it to preheat. The "HEAT" light will be on.
- Once the "READY" light is on, the machine is ready for operation.
- Use the DMX controller or wireless remote to activate the spark effect.
-
Crucial: After every use, run the cleaning function to clear residual powder. This is essential for preventing clogs and ensuring machine longevity.
Technical Specifications
| Heating Power |
650W (6A @ 110V / 3A @ 220V) |
| Voltage |
AC 110V / 220V, 50/60Hz |
| Fountain Direction |
Horizontal / Oblique (45-degree angle) |
| Working Height / Distance |
1-5 meters |
| Control Mode |
DMX 512 / Remote Control |
| Interface |
Dual Power In/Out, Dual DMX In/Out |
| Housing Material |
Aluminum |
| Net Weight |
6.5 kg |
| Dimensions |
230 x 270 x 244 mm |
Packing List
| 1x |
650W Horizontal Spark Machine |
| 1x |
Signal Cable (DMX) |
| 1x |
Power Cord |
| 1x |
User Manual |
Frequently Asked Questions
Will this machine cause a fire or set off a smoke alarm?
No. Our spark machines are safe for indoor and outdoor use. The low-temperature sparks will not cause a fire or trigger smoke alarms when used at a safe distance. This model is designed to operate safely at its fixed 45-degree angle.
How high/far can the sparks spray?
Using indoor powder, it can spray 1-3 meters. With outdoor powder, it can reach 2-5 meters.
Can I adjust the angle of the spray?
No, this model is designed with a fixed 45-degree angle for stability and consistent effects. For vertical sprays, please see our standard cold spark machines.
Can this machine be used upside down?
No. This machine is designed for horizontal/oblique spray from the ground up. Only specifically designated hanging spark machines can be used for downward "waterfall" effects.
What is the consumable used?
The consumable is Titanium Alloy powder, available in indoor and outdoor versions which determine the spray height.
