ACS Mini Battery DMX Console (24 CHs)

Description

ACS Mini Battery DMX Console (24 CHs)

Portable · Easy to Use · Up to 10 Hours Operation

The DMX-24 is a portable mini-console designed for flexibility and ease of use. It uses a standard 18650 lithium battery providing more than 10 hours of operation on a full charge. With its simple stand-by design and user-friendly interface, it’s perfect for both professionals and beginners in stage lighting control.

Key Features ▼

  • ✅ Portable mini DMX console
  • ✅ Uses standard 18650 lithium battery
  • ✅ Full charge lasts up to 10 hours

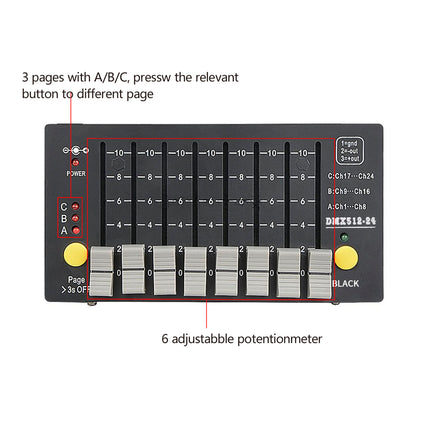

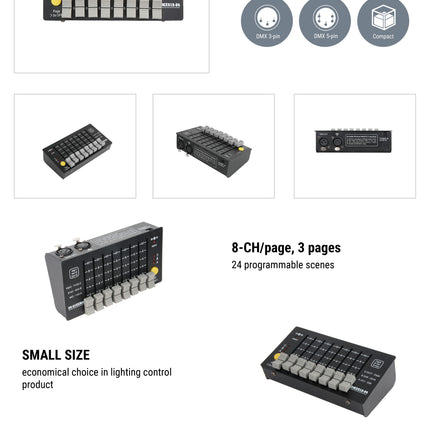

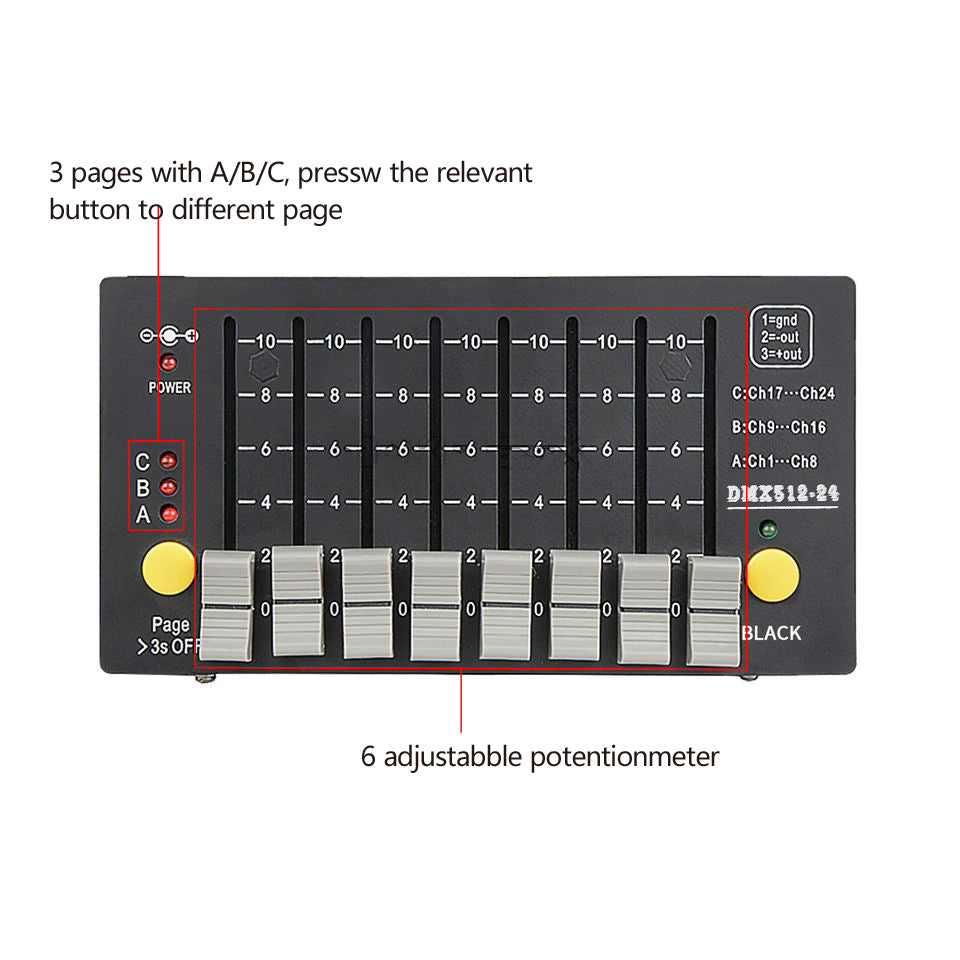

  • ✅ 3 pages with A/B/C switch
  • ✅ Easy operation, even for amateurs

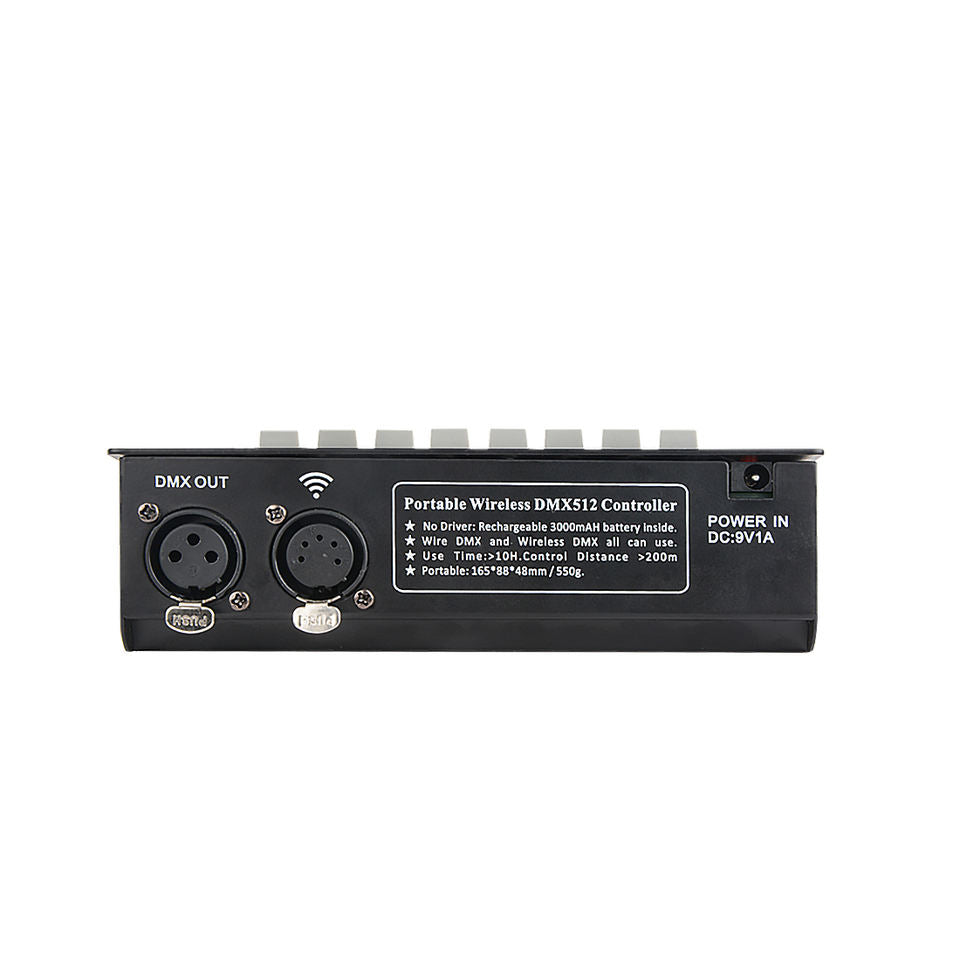

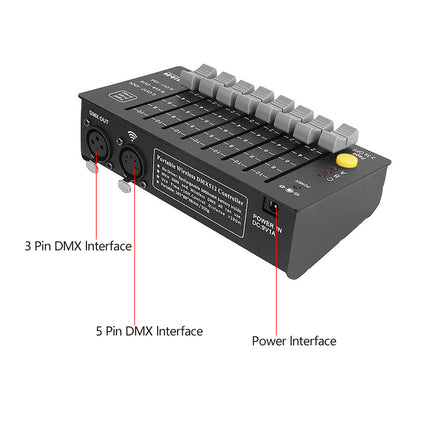

  • ✅ Includes both 3-pin and 5-pin DMX interfaces

Need bulk pricing or setup advice? Message us on WhatsApp for immediate support.

How to Use

No external power supply (charger) insertion:
  1. Press the key briefly to start the machine.
  2. Successful startup defaults to the first page. The indicator is lit and the output of all channels is 0.
  3. If there is no operation within 10 minutes after power is on, it will shut down automatically.
  4. The eight push rods of the console correspond to channel 1 to channel 8 from left to right.
  5. In the power-on state, press and hold the key for 3 seconds to shut down.
  6. After shutdown, all indicators go out and the DMX signal stops outputting.
There is an external power supply (charger) plugged in:
  1. If an external power supply is plugged in, the console will start automatically. If it is already on, plugging in the charger will not change the status.
  2. When an external power supply (charger) is plugged in, long-press the key for 3 seconds to shut it down.
  3. Unplug the external power supply and the console will shut down automatically.

Technical Specifications

Attribute Details
Product Name Mini Battery DMX Console
Voltage AC 110/230V 60/50Hz
DMX Channel 3 × 8CH
Battery Capacity 3000 mAh
Charging Time 2 hours
Operation Time 10 hours
Net Weight (N.W.) 0.55 kg
Apply Stage equipment and lighting
With Charger, user manual
Packing Size 19.5 × 11 × 7 cm
Place of Origin Guangdong, China
Model Number DMX512-24CHs

Important Notice

Every console is tested for performance before shipping. For special configurations or bulk orders, please reach out for expert advice.

ACS Mini Battery DMX Console (24 CHs)

Product form
$89.00

In stock - Shipped in 24 hours

    "Awesome"
    4.5/5 on
    • Direct from the Factory
    • Professional Technical Support
    • Customizable Solutions Available
        Why choose ACS?

      1. Factory-Direct Pricing

      We cut out the middlemen so you get industrial-grade event gear at true factory prices — high quality, lower cost.

      2. Lifetime Support

      Our commitment doesn’t end after purchase. We provide lifetime technical support to help you get the most from your equipment, anytime you need it.

      3. Free & Reliable Global Delivery

      We ship worldwide with trusted carriers like DHL Express — always free, always trackable, and always reliable.

        Customer service

      We are listening to you from Monday to Saturday from 10 a.m. to 7 p.m.

      You can contact us via our contact form:

      Send us a message!

      Description

      ACS Mini Battery DMX Console (24 CHs)

      Portable · Easy to Use · Up to 10 Hours Operation

      The DMX-24 is a portable mini-console designed for flexibility and ease of use. It uses a standard 18650 lithium battery providing more than 10 hours of operation on a full charge. With its simple stand-by design and user-friendly interface, it’s perfect for both professionals and beginners in stage lighting control.

      Key Features ▼

      • ✅ Portable mini DMX console
      • ✅ Uses standard 18650 lithium battery
      • ✅ Full charge lasts up to 10 hours
      • ✅ 3 pages with A/B/C switch
      • ✅ Easy operation, even for amateurs
      • ✅ Includes both 3-pin and 5-pin DMX interfaces

      Need bulk pricing or setup advice? Message us on WhatsApp for immediate support.

      How to Use

      No external power supply (charger) insertion:
      1. Press the key briefly to start the machine.
      2. Successful startup defaults to the first page. The indicator is lit and the output of all channels is 0.
      3. If there is no operation within 10 minutes after power is on, it will shut down automatically.
      4. The eight push rods of the console correspond to channel 1 to channel 8 from left to right.
      5. In the power-on state, press and hold the key for 3 seconds to shut down.
      6. After shutdown, all indicators go out and the DMX signal stops outputting.
      There is an external power supply (charger) plugged in:
      1. If an external power supply is plugged in, the console will start automatically. If it is already on, plugging in the charger will not change the status.
      2. When an external power supply (charger) is plugged in, long-press the key for 3 seconds to shut it down.
      3. Unplug the external power supply and the console will shut down automatically.

      Technical Specifications

      Attribute Details
      Product Name Mini Battery DMX Console
      Voltage AC 110/230V 60/50Hz
      DMX Channel 3 × 8CH
      Battery Capacity 3000 mAh
      Charging Time 2 hours
      Operation Time 10 hours
      Net Weight (N.W.) 0.55 kg
      Apply Stage equipment and lighting
      With Charger, user manual
      Packing Size 19.5 × 11 × 7 cm
      Place of Origin Guangdong, China
      Model Number DMX512-24CHs

      Important Notice

      Every console is tested for performance before shipping. For special configurations or bulk orders, please reach out for expert advice.
