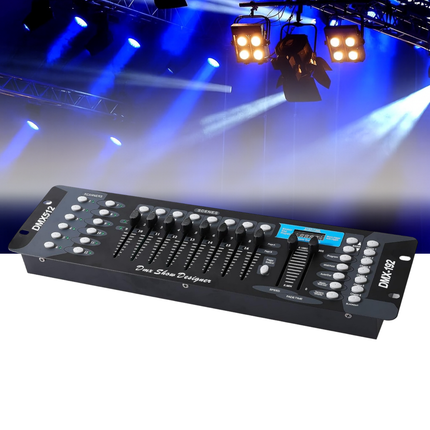

ACS Mini DMX 192 DJ Controller
192-Channel Control · 240 Programmable Scenes · Universal DMX512 Compatibility
Take complete command of your light show with the ACS Mini DMX 192 DJ Controller. This compact yet powerful console is the perfect solution for DJs, mobile entertainers, bars, and small stages, giving you professional control in a portable package. It allows you to manage up to 12 intelligent lights with 16 channels each, and program up to 240 dynamic scenes across 30 banks. Whether you're controlling par lights, moving heads, or special effects machines, this intuitive controller makes it easy to design and execute a stunning, synchronized show.
Key Benefits
Master Your Entire Show: Control up to 12 different lighting fixtures and effects machines simultaneously with 192 DMX channels.
Unleash Your Creativity: Program and store up to 240 scenes across 30 banks, allowing you to recall complex lighting looks with a single button press.

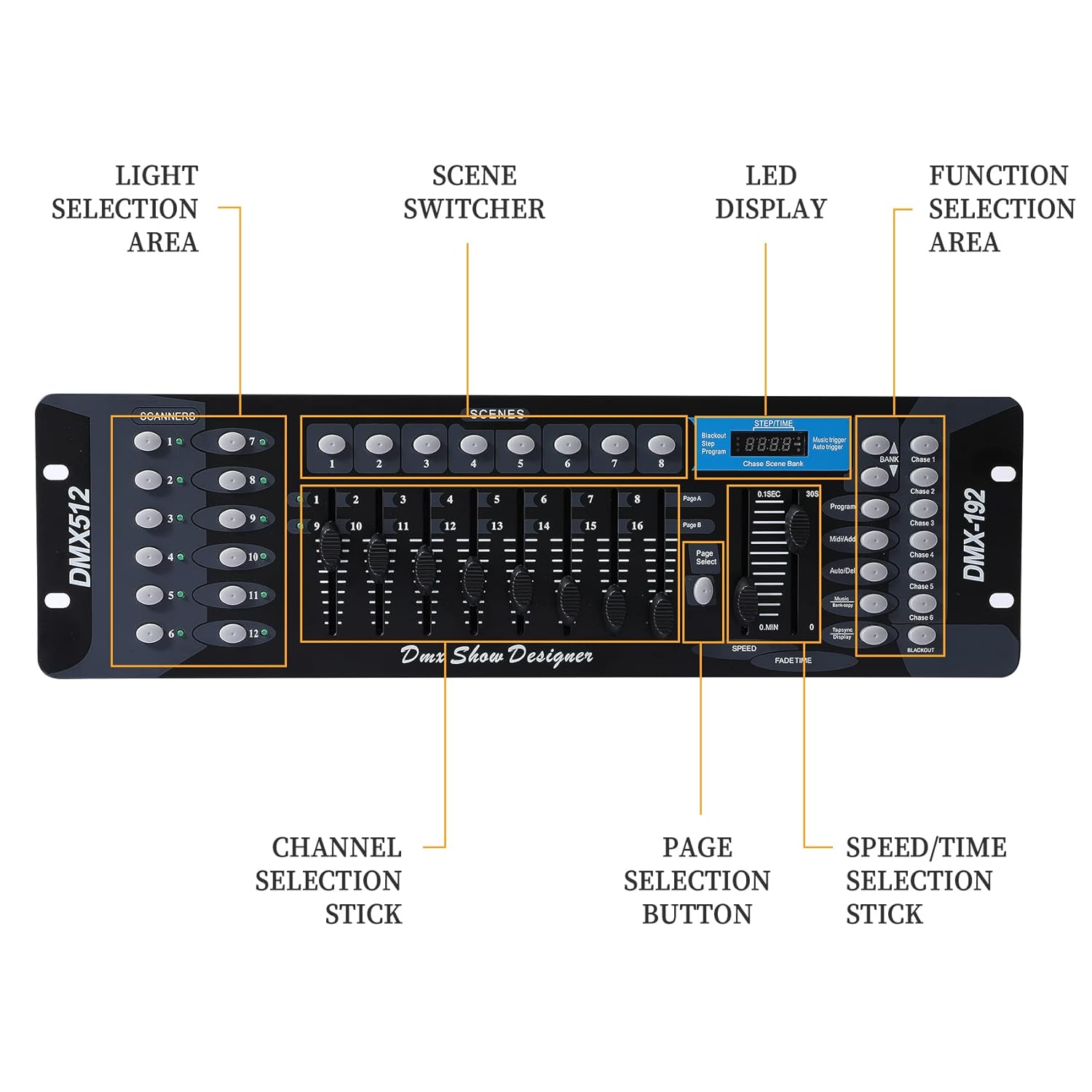

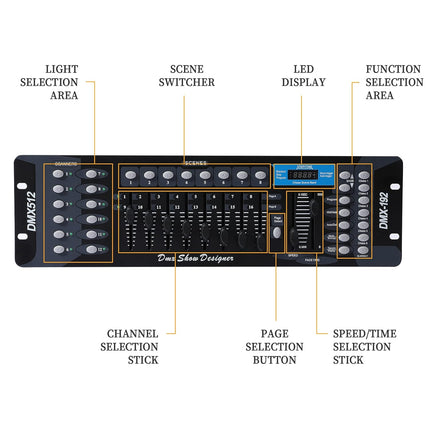

Enjoy an Intuitive Workflow: The user-friendly layout with manual faders, an LCD display, and clear function buttons makes programming easy for beginners and experts alike.
Achieve Perfect Music Sync: A built-in microphone allows the controller to automatically trigger scenes and chases to the beat of the music.
Connect to Any DMX Gear: Universally compatible with all standard 3-pin DMX devices, including par lights, strobes, fog machines, moving heads, and more.
Rely on Professional Durability: Built with a sturdy, corrosion-resistant chassis to withstand the demands of live events and repeated transport.
Simple Scene Programming
- Press and hold the 'Program' button for 3 seconds to enter programming mode.
- Select a fixture to program by pressing one of the 'Scanners' buttons (1-12).
- Adjust the faders (1-8) to set the desired DMX values (color, gobo, pan, tilt, etc.) for that fixture.
- Press the 'Midi/Add' button, then press a 'Scene' button (1-8) to store your look.
- Repeat for all fixtures and scenes, then hold 'Program' for 3 seconds to exit. Your show is now ready!
Your Complete Show in One Box. This controller is the central brain for your entire lighting and effects setup. Synchronize everything from moving heads and lasers to fog and bubble machines to create a cohesive, professional, and high-energy atmosphere.

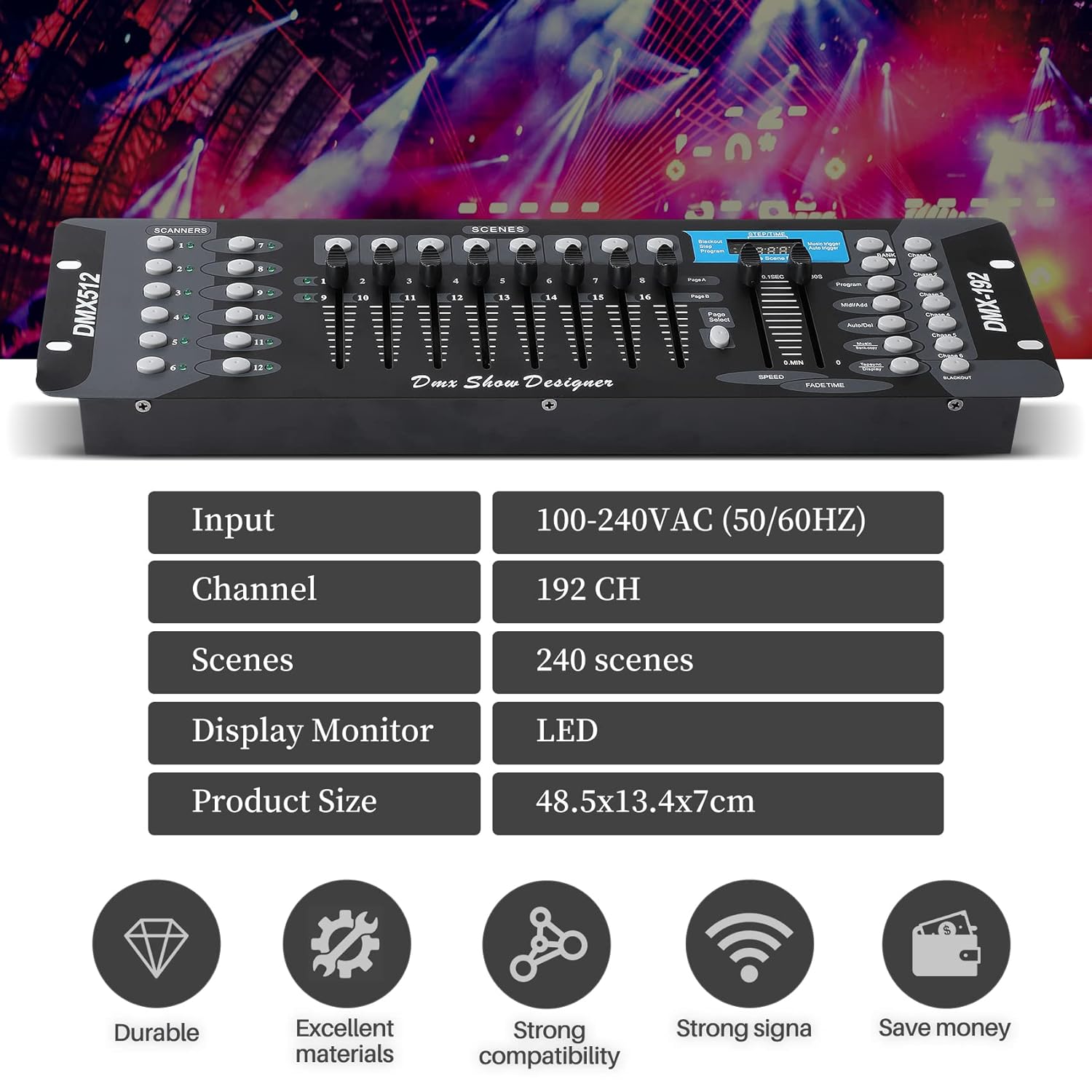

Technical Specifications
| Total Channels |
192 Groups |
| Max Controlled Fixtures |
12 (up to 16 channels each) |
| Programmable Scenes |
240 (30 Banks x 8 Scenes) |
| Programmable Chases |
6 (up to 240 scenes each) |
| Control Faders |
8 Manual Faders (0-255) + Speed & Fade Time |
| Display |
LCD Digital Display |
| Trigger Modes |
Manual, Auto, Music (via built-in microphone) |
| DMX Connection |
3-Pin XLR In/Out |
| Input Voltage |
AC 90-240V, 50-60Hz |
Packing List
| 1x |
DMX 192 Controller |
| 1x |
Power Adapter |
| 1x |
DMX Signal Cable |
| 1x |
English Manual |
Need help with programming or have a question about compatibility?
Our expert team is here to provide technical support for your lighting setup.
Message us on WhatsApp
Frequently Asked Questions
Is this controller difficult for a beginner to use?
While DMX programming has a learning curve, this controller is one of the most popular and user-friendly models for beginners. The straightforward layout and clear instructions make it easy to learn the basics of scene and chase programming.
Can this control my fog machine?
Yes, as long as your fog machine is DMX-compatible and uses standard 3-pin DMX cables. You can assign the fog machine to one of the 12 'Scanners' and control its output using the faders, just like a light.
Does it save my programs if the power goes out?
Yes, this controller features power failure memory. Your saved scenes and chases will be retained even if the unit is unplugged or loses power, so your show is always safe.
