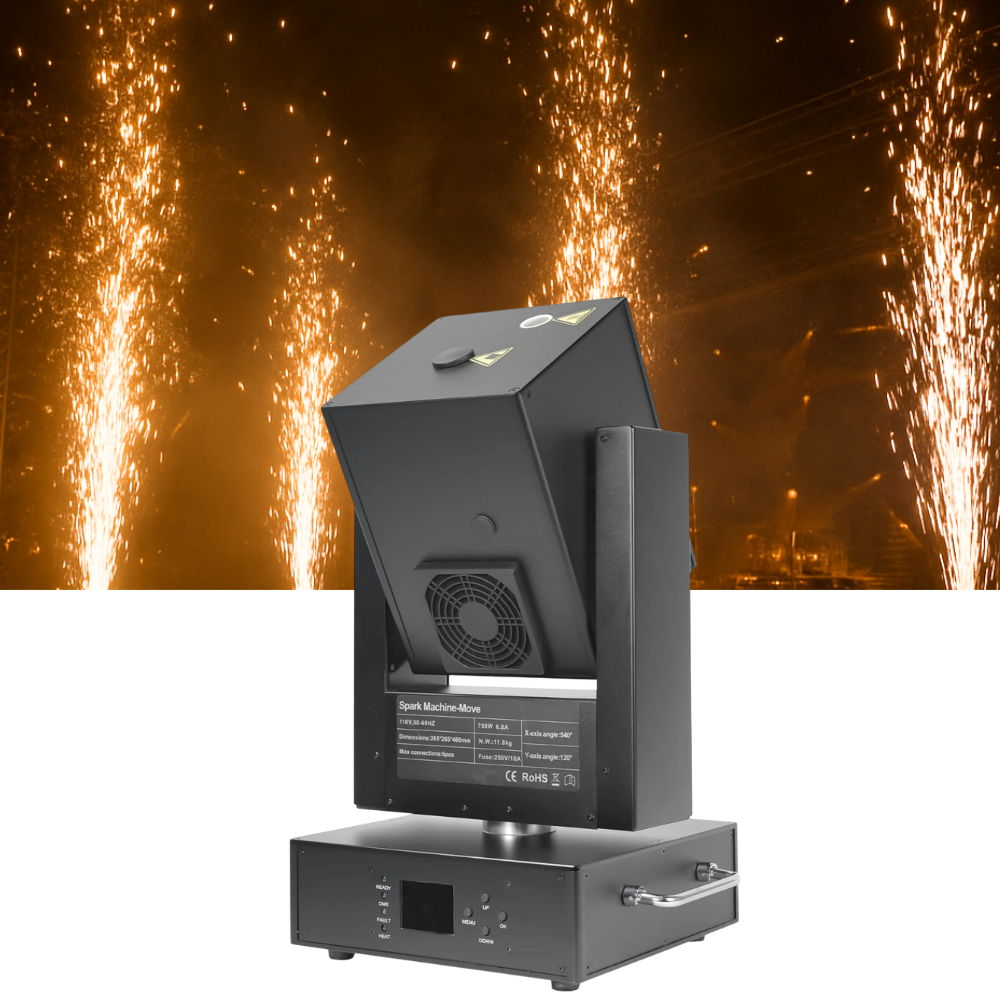

ACS 750W Moving Head Cold Spark Machine
540° Pan & 120° Tilt · 5-Meter Spark Height · 5-Channel DMX Control
Elevate your light show with the ACS 750W, a dynamic moving head cold spark machine. Unlike traditional fireworks, this unit produces a safe, odorless, and touchable spark effect that can spray up to 5 meters. Its key feature is the wide-range moving head, offering a 540-degree pan and 120-degree tilt, allowing you to create sweeping, dynamic spark displays that cover the entire stage. Controlled by 5 DMX channels, this versatile and compact machine is built from high-quality materials for durable, professional use.
Key Features
Dynamic Moving Head: Features a 540° X-axis (pan) and 120° Y-axis (tilt) for creating incredible, sweeping effects.
Powerful 5-Meter Sparks: Creates a fantastic fountain effect with an adjustable height of up to 5 meters.
Precise DMX Control: 5 dedicated DMX channels for full control over height, rotation, speed, and safety.
Quick Preheating: Ready for operation in just 4-5 minutes, ensuring no delays for your event.
Long Spraying Time: Each 200g of powder can be sprayed continuously for more than 15 minutes.
Safe & Odorless: A perfect and safe alternative to traditional pyrotechnics, suitable for any venue.
DMX Channel Breakdown
| Channel 1 |
Preheat & Emergency Stop Control |
| Channel 2 |
Spark Height Control (Digital Display F1-F5) |
| Channel 3 |
X-Axis Rotation (Pan 540°) |
| Channel 4 |
Y-Axis Rotation (Tilt 120°) |
| Channel 5 |
Rotation Speed Adjustment |
Create Dynamic Light Shows: Combine spectacular spark fountains with 540° pan and 120° tilt movements to create truly dynamic and engaging effects that cover the entire stage.
Technical Specifications
| Heating Power |
750W (6.8A @ 110V / 3.4A @ 220V) |
| Input Voltage |
110V / 220V AC |
| Working Height |
1-5 meters |
| Control Mode |
5-Channel DMX |
| Consumable Material |
Titanium Alloy Granules |
| Max Connections |
6 pcs (per power circuit) |
| Fuse |
10A (110V) / 6A (220V) |
| Working Temperature |
-10°C to 50°C |
| Net Weight |
11.8 kg |
| Dimensions |
265 x 265 x 480 mm |
| Warranty |
1 Year |
Package Including
| Item |
Qty |
| 750W Moving Head Spark Machine |
1 pc |
| DMX Signal Line |
1 pc |
| Power Cable |
1 pc |
| User Manual |
1 pc |
Frequently Asked Questions
Will this machine cause a fire or set off a smoke alarm?
Our spark machines can be used indoors and outdoors. As long as it is kept at a relatively safe distance, it will not cause a fire or cause the smoke alarm to go off. Our machine is equipped with a safety channel; when the machine is tilted more than 45 degrees, the spark machine will immediately stop working to improve the safety of use.
Do I need a security clearance to use the spark machine?
From the customers we have worked with in Europe, America, and other countries, there is no need to obtain security clearance to use our machines.
How high can the spray be?
Indoor powder can spray 1-3M; Outdoor powder can spray 2-5M.
What are the control modes?
This model is controlled via DMX 512. Some other models may also include wireless remote control.
What is the consumable used?
The consumable is Titanium Alloy powder, available in indoor and outdoor versions which determine the spray height.
How long does one bag of powder last?
One 200g bag can provide 15-20 minutes of continuous spray time.
Can I adjust the height of the spark?
Yes, you can adjust the spray height using a DMX controller via Channel 2.
Can I control multiple machines at once?
Yes. You can control multiple machines with a single DMX controller. Simply set the address code on each machine.
Where can I buy the powder?
You can purchase it from us, your local market, Amazon, or eBay.
Why can't the machine preheat?
Possible reasons include: 1) The heater is broken, 2) There is a mainboard issue, or 3) The temperature probe is faulty.
Can this machine be used upside down?
No, only specially designated hanging spark machines can be used upside down.
What happens if I connect more than 6 machines?
Connecting more than 6 machines to a single power circuit may cause damage or fire due to excessive current draw.
What is the pre-heating time?
The initial preheating time is 4-6 minutes. Subsequent warm-ups are much faster, taking about 1 second for every degree of temperature needed from its last use.
What is the temperature of the spark?
The spark temperature is controlled by a detector and is typically around 40-60°C, making it safe.
What is the warranty period?
The warranty period is one year.
