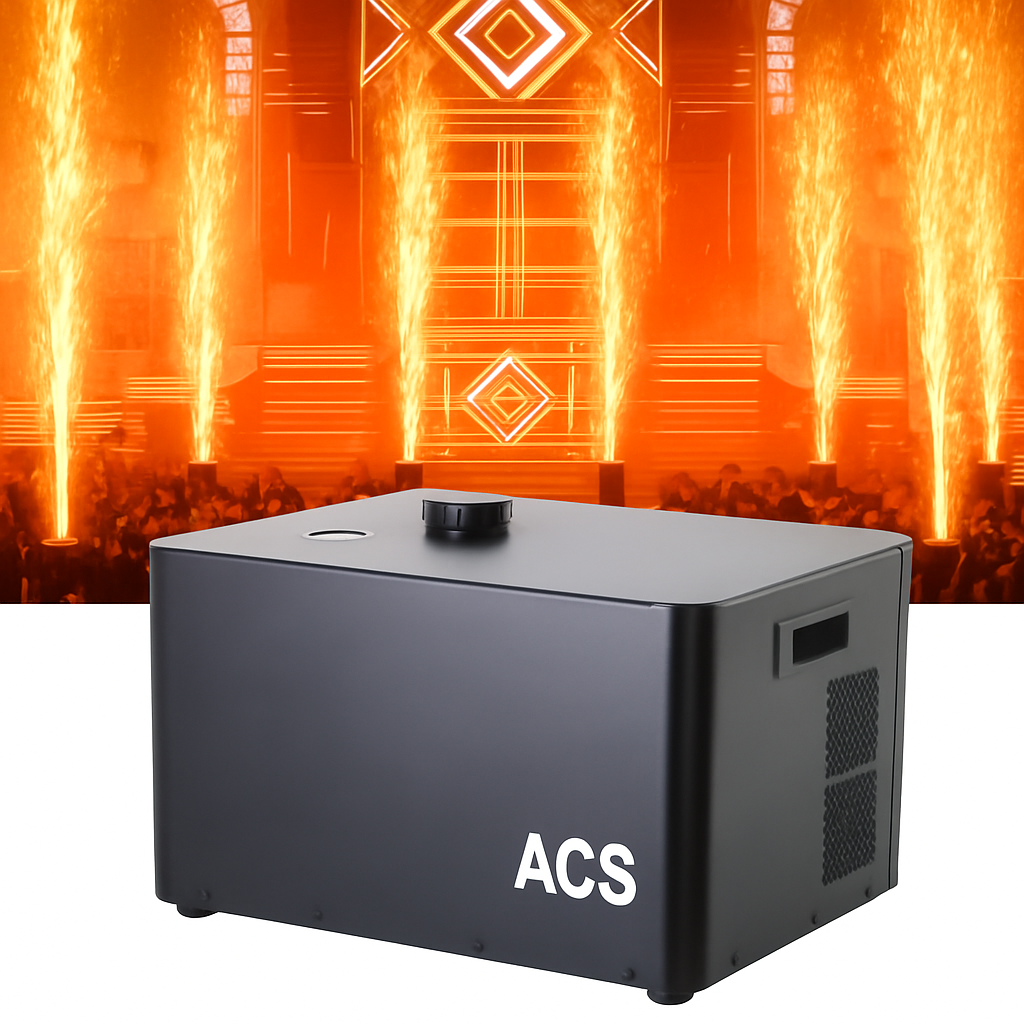

ACS 1700W Super High Cold Spark Machine
4-10 Meter Height · IP65 Rainproof · 550g Large Capacity
For large-scale events that demand maximum impact, the ACS Super High Cold Spark Machine delivers unparalleled performance. Engineered for professional use, this powerhouse boasts an incredible spray height of 4 to 10 meters (13-33 ft). Its IP65 rainproof body and connectors ensure flawless operation outdoors, even on rainy days. Featuring a massive 550g powder capacity for extended use, a rugged aluminum casing, and professional 3-pin & 5-pin DMX interfaces, the machine is the ultimate choice for concerts, festivals, and major productions.
Key Features
Super High 10M Spray: Creates towering spark fountains with an adjustable height from 4 to 10 meters.
IP65 Rainproof Design: Full rainproof body and connectors make it reliable for outdoor use in any weather condition.
Large 550g Capacity: Huge powder hopper allows for extended use without constant refilling (approx. 8 mins total spray time).
Professional DMX Interface: Equipped with both 3-pin and 5-pin DMX ports for maximum compatibility with professional gear.
Powerful 1700W Heating: High-power electromagnetic system ensures rapid warm-up in just 4-5 minutes.
Tour-Ready Build: A rugged aluminum casing withstands the rigors of frequent use and transportation.
How To Use
- Add up to 550g of specialized 'super powder' into the hopper.
- Connect the rainproof power and DMX signal cables from your controller.
- Turn the machine on. The 'HEAT' light will indicate it's warming up (approx. 4-5 minutes).
- When the 'READY' light is green, the machine is ready for operation.
- Control via DMX: Set Channel 1 (value 240-255) to start heating/arming. Adjust spray height with Channel 2 (value 16-255).
- After use, run the cleaning cycle by setting Channel 1 (value 221-239) to clear residual powder.
Technical Specifications
| Power |
1700W (110V) / 900W (220V) |
| Spray Height |
4-10 meters (13-33 ft) |
| Control Mode |
2-Channel DMX 512 |
| Heating Method |
Electromagnetic Heating |
| Box Capacity |
550g |
| Appearance Material |
Aluminum |
| Weight |
23 kg |
| Dimensions |
460 x 370 x 300 mm |
Package List
| Item |
Qty |
| 1700W Cold Spark Machine |
1 pc |
| Power Cord |
1 pc |
| Signal Cable (DMX) |
1 pc |
| Hexagon Wrench |
1 pc |
Frequently Asked Questions
How long can I spray with a full 550g container?
The machine consumes about 70g of powder per minute. However, it has a built-in safety that stops spraying after 15 seconds, requiring a restart. The total cumulative spray time from a full 550g container is approximately 8 minutes.
Does this machine come with a remote control?
No, this is a professional-grade machine and can only be controlled via a DMX 512 console.
Do I need to buy a DMX console separately?
Yes, you will need to provide your own DMX console to operate this machine. You can also purchase one from our website.
Does this machine need a special card to activate?
No, an activation card is not necessary. Simply pour in the powder, connect the power and DMX signal cables, and operate according to the instructions.
What is the warranty period?
The warranty is one year after leaving the factory. If there is a failure, please cooperate by taking a clear video so we can diagnose the cause and send you the correct replacement parts.
