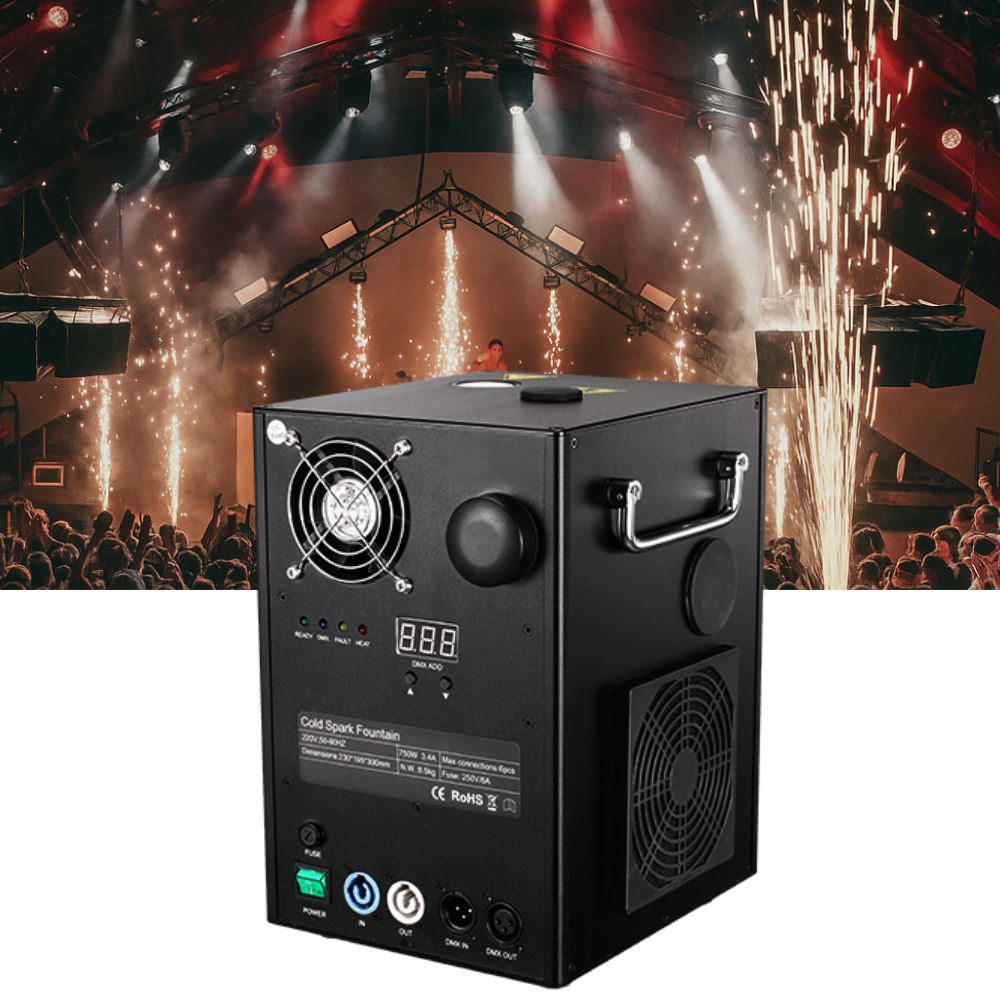

ACS 750W Cold Spark Machine
750W High-Power Sparks · 1-5M Adjustable Height · DMX & Remote Control
The ACS is a powerful 750W cold spark machine that serves as a safe and stunning alternative to traditional pyrotechnics. It's perfectly suited for large and medium-sized show performances, weddings, discos, and nightclubs. This machine produces completely touchable sparks that are smokeless, odorless, and non-irritating, ensuring safety and convenience. With DMX and remote control, low consumption, and a portable design, the machine offers a professional and hassle-free way to create spectacular fountain effects.
Key Features
No Smoke, No Smell: Creates a clean, non-irritating effect suitable for any indoor or outdoor venue.
Touchable & Safe: Generates low-temperature sparks that are completely safe to touch, eliminating fire hazards.

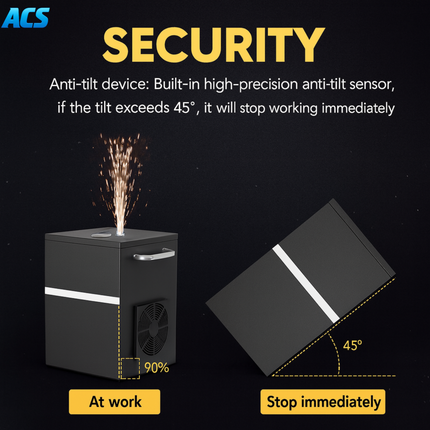

Advanced Safety Sensor: A built-in high-precision anti-tilt sensor automatically stops the machine if tilted over 45°.
Long-Lasting Effect: One 200g bag of powder provides over 15 minutes of continuous spray time.
Versatile Control: Full operation via DMX 512, the onboard LCD display, or the included wireless remote.
Eco-Friendly: Features low power consumption and uses environmentally friendly granules.
How To Use
- Add titanium powder to the machine's reservoir (up to 250g).
- Connect the power cable and turn the machine on.
- The machine will start heating, indicated by the RED "HEAT" light.
- Wait for the GREEN "READY" light to indicate the warm-up is complete.
-
For DMX Control: Use Channel 1 to start heating and Channel 2 to control the spray height.
-
For Remote Control: Use the remote to select from 3 height options and built-in effects.
- After use, run the cleaning function (via DMX or remote "CLE" key) to clear remaining powder.
Quick Preheating System: With a rapid preheating time of only 4-5 minutes, the machine gets into its working state quickly, ensuring your show starts on time, every time.
Technical Specifications
| Power Consumption |
750W |
| Input Voltage |
110V/220V AC, 50/60Hz |
| Fountain Height |
1-5 meters |
| Control Mode |
DMX 512 / Wireless Remote Control |
| Preheat Time |
4-5 minutes |
| Max Connections |
6 pcs (per power circuit) |
| Refill Consumables |
Titanium Alloy Granules |
| Powder Usage |
Over 15 min per 200g |
| Housing |
Anti-flaming ABS, honeycomb design |
| Interface |

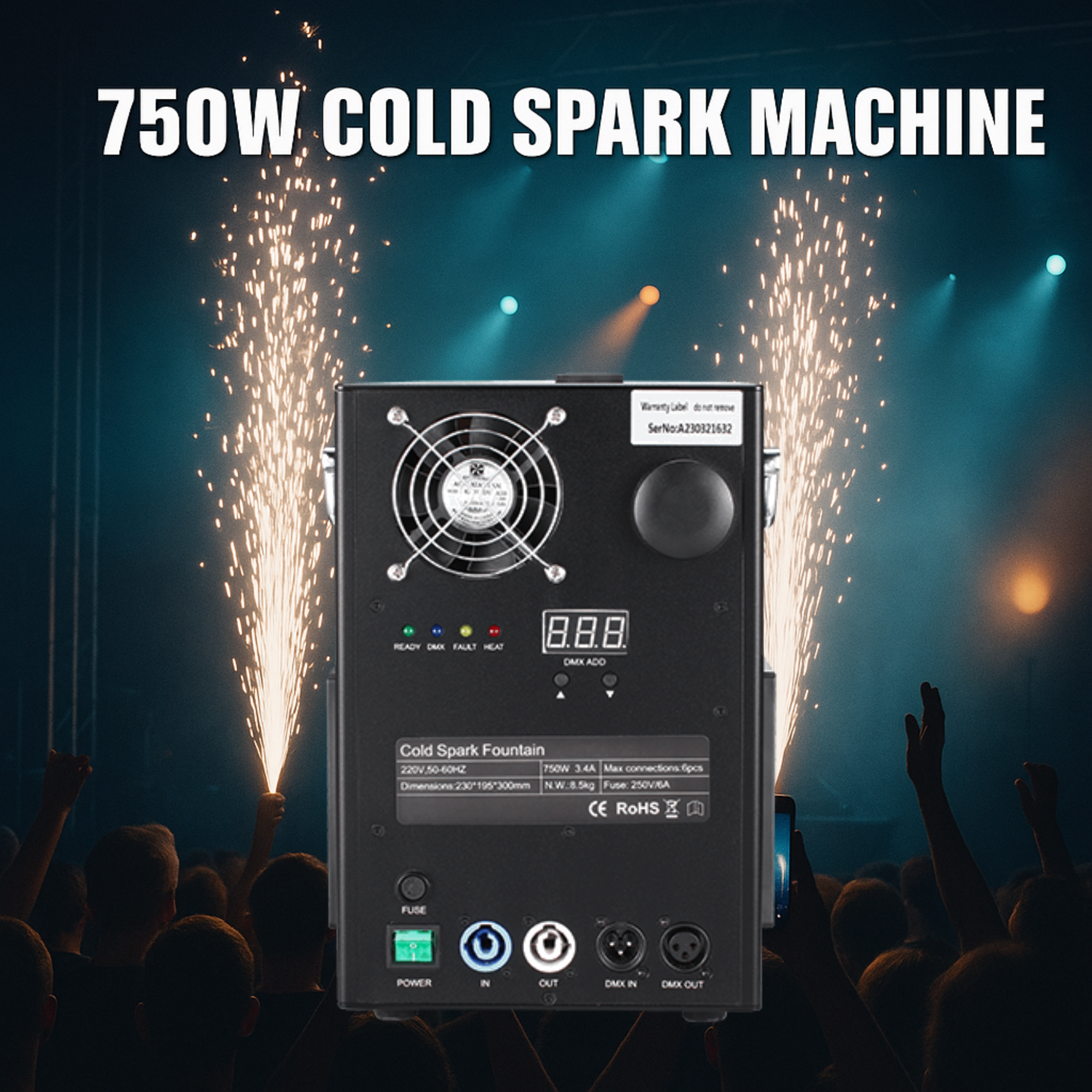

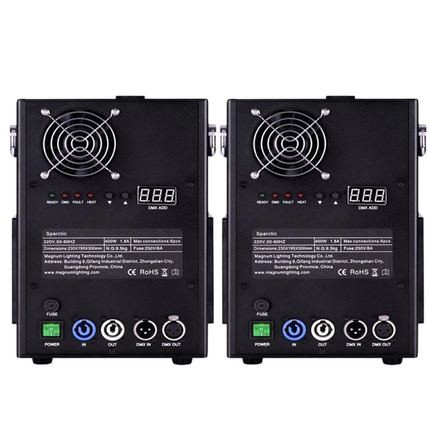

Dual PowerCon (In/Out), Dual DMX (In/Out) |
| Dimensions |
25 x 22 x 31 cm |
| Gross Weight |
10 kg |

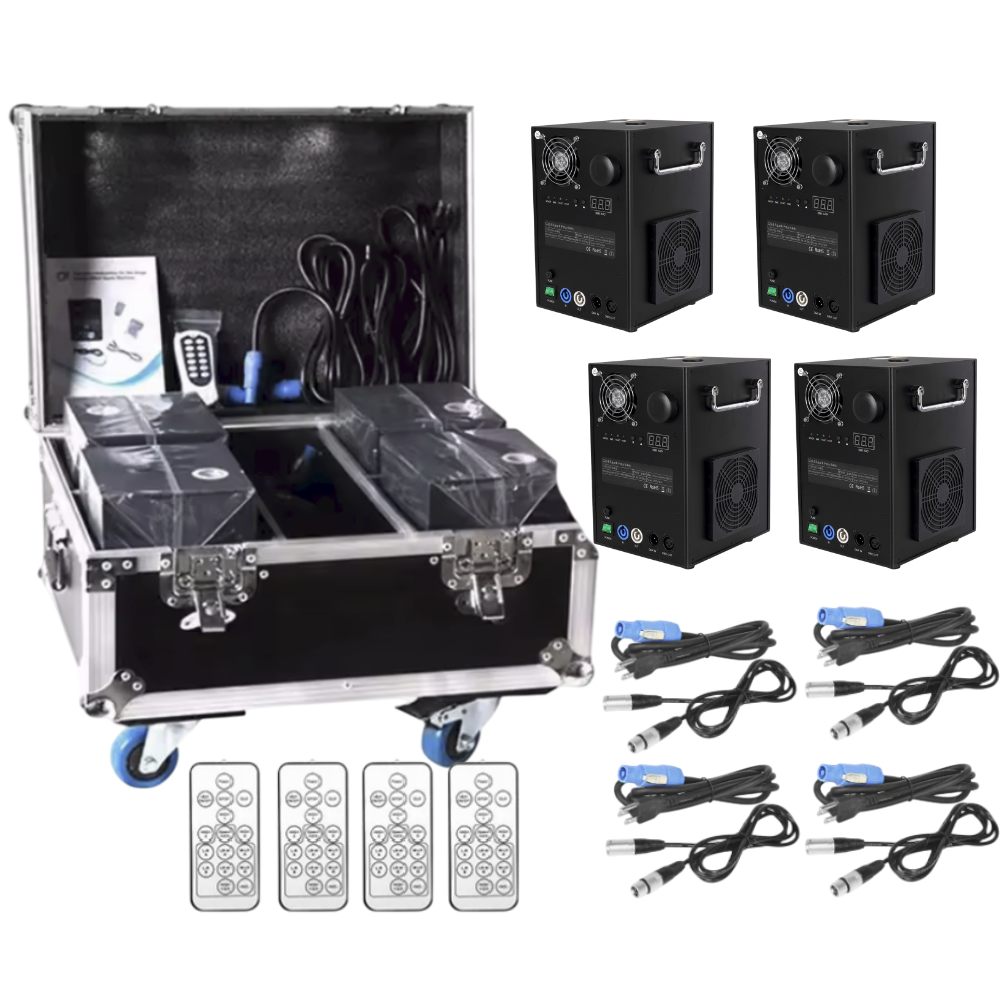

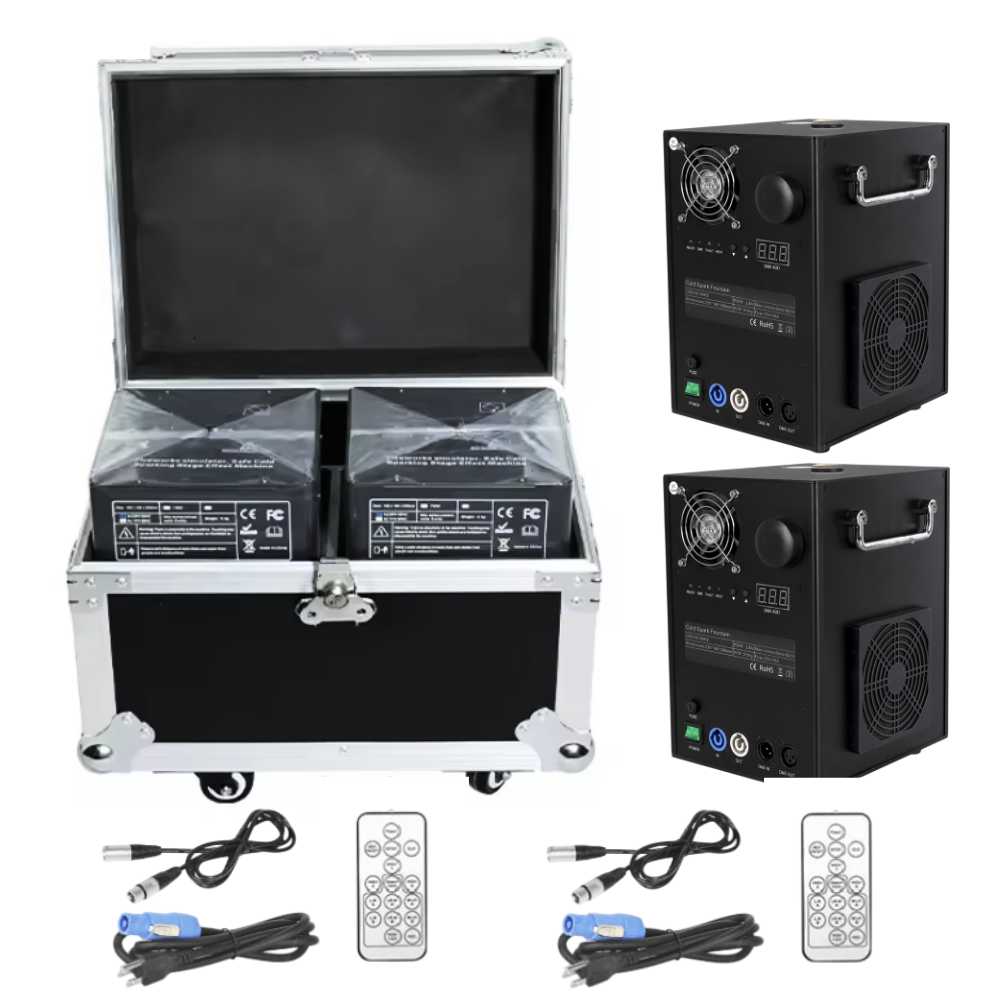

Packing List
| Item |
Qty |
| 750W Sparkler Machine |
1 pc |
| Wireless Remote Controller (no battery) |
1 pc |
| Power Cord |
1 pc |
| DMX Cable |
1 pc |
| User Manual |
1 pc |
Frequently Asked Questions
Will this machine cause a fire or set off a smoke alarm?
No. Our spark machines are safe for both indoor and outdoor use. The sparks are low-temperature and will not cause a fire or trigger smoke alarms. For added safety, the machine automatically shuts off if tilted more than 45 degrees.
Do I need a special license to operate this machine?
Based on our customer experience across Europe, America, and other regions, no special security clearance or license is required to operate our spark machines.
How high can the sparks spray?

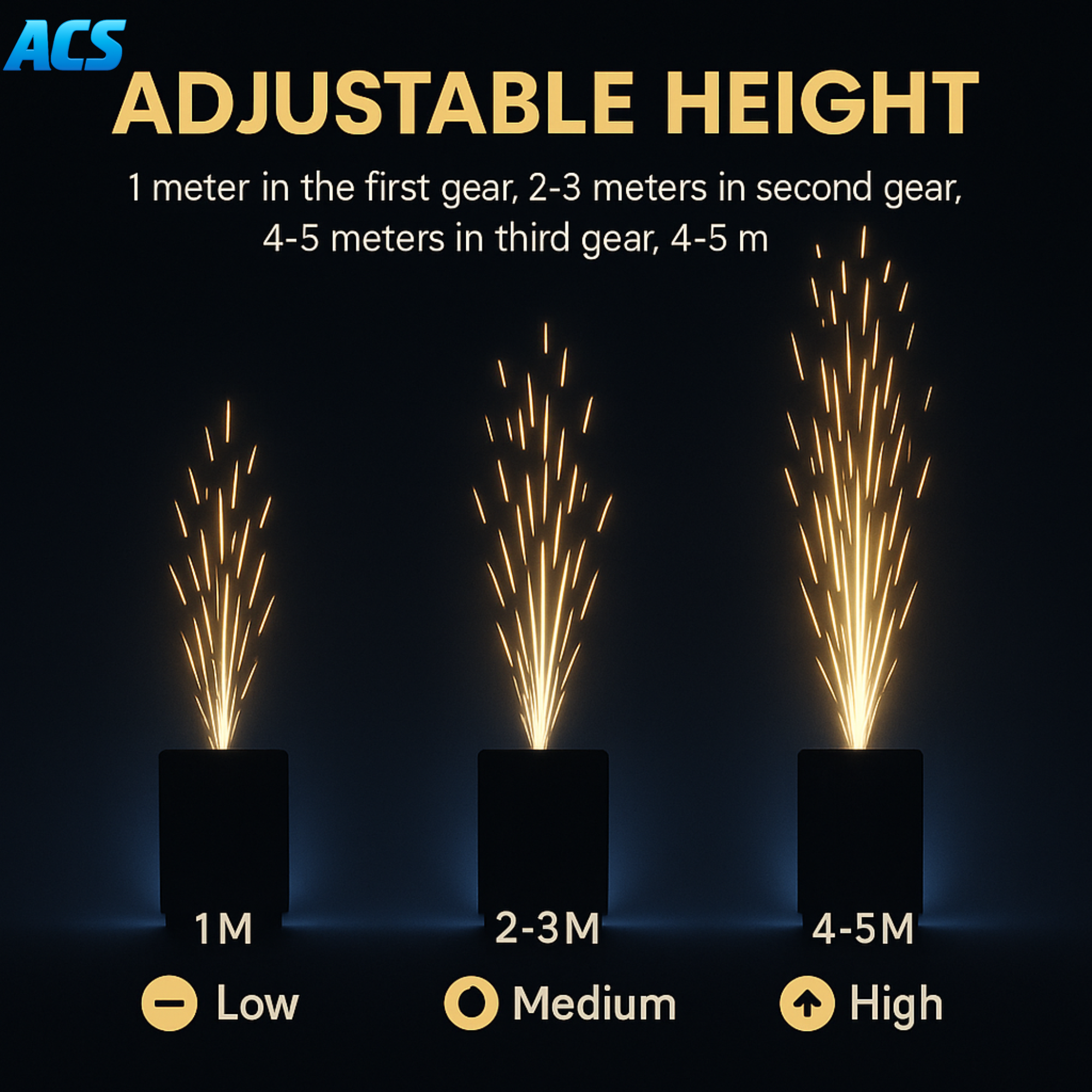

The height is adjustable. Using indoor powder, it can spray 1-3 meters. With outdoor powder, it can reach 2-5 meters.
What are the control modes?
DMX 512 and wireless remote control.
What is the consumable used?
The consumable is Titanium Alloy powder, available in indoor and outdoor versions which determine the spray height.
How long does one bag of powder last?
One 200g bag can provide 15-20 minutes of continuous spray time.
Can I adjust the height of the spark?
Yes, you can adjust the spray height using the DMX controller or the wireless remote.
Can I control multiple machines at once?
Yes. You can control multiple machines with a single DMX controller or wireless remote. Simply set the same address code on each machine.
Where can I buy the powder?
You can purchase it from us, your local market, Amazon, or eBay.
Why can't the machine preheat?
Possible reasons include: 1) The heater is broken, 2) There is a mainboard issue, or 3) The temperature probe is faulty.
Can this machine be used upside down?
No, only specially designated hanging spark machines can be used upside down.
What happens if I connect more than 6 machines?
Connecting more than 6 machines to a single power circuit may cause damage or fire due to excessive current draw.
What is the pre-heating time?
The initial preheating time is 4-6 minutes. Subsequent warm-ups are much faster, taking about 1 second for every degree of temperature needed from its last use.
What is the temperature of the spark?
The spark temperature is controlled by a detector and is typically around 40-60°C, making it safe.
What is the warranty period?
The warranty period is one year.
