IB-C1.5-H180-KIT
1.5m / 4.92ft Full Circle Truss Kit · F32 I-Beam Truss · EN-AW 6082 T6

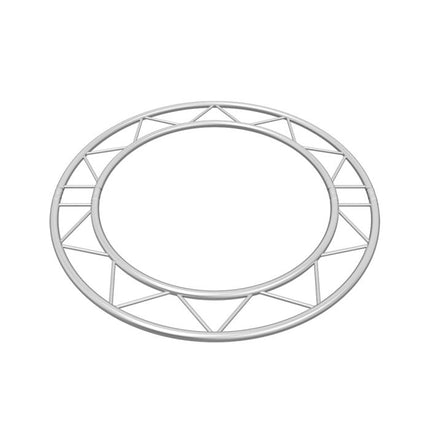

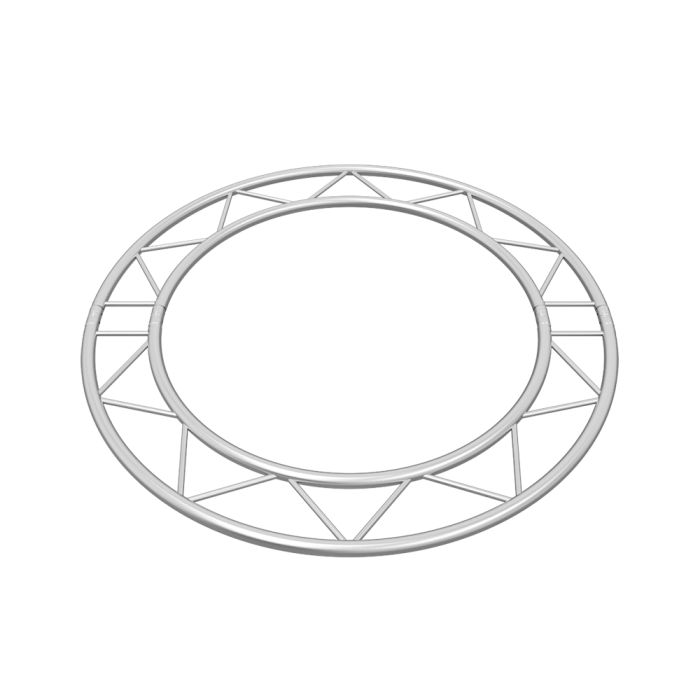

The IB-C1.5-H180-KIT is a complete 1.5-meter (4.92ft) outer diameter circular truss package from the F32 I-Beam series. Comprised of two 180-degree sections (IB-C1.5-H-ARC180), this kit is engineered to create stunning circular lighting rigs, event centerpieces, or architectural features. It's built from high-grade EN-AW 6082 T6 aluminum with TUV-certified welds, ensuring top-tier safety and structural reliability.
Designed for seamless assembly, the two half-circle components connect to form a perfect circle. This kit provides significant load-bearing capacity while maintaining the lightweight and manageable profile of the F32 series. All necessary conical connectors, pins, and clips are included for a quick and secure setup right out of the box.
Key Features ▼
- ✅ Full Circle Truss Kit (4.92ft / 1.5m outer diameter)

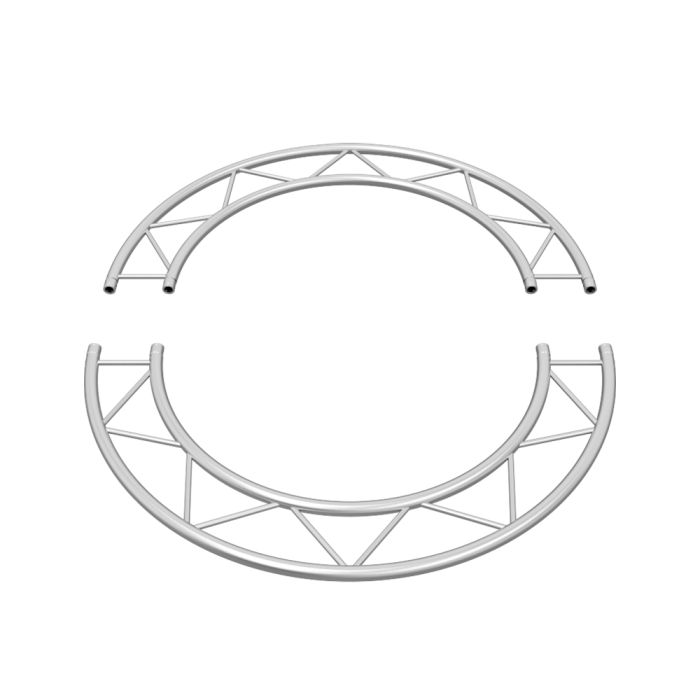

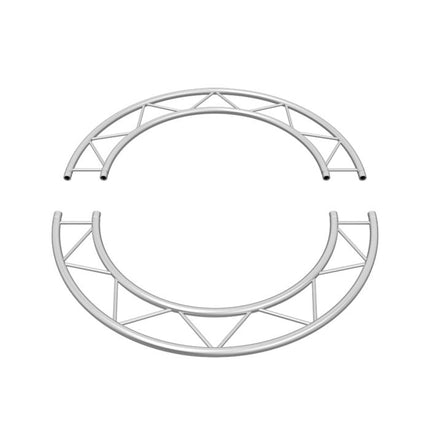

- ✅ Composed of two 180° half-circle sections
- ✅ Overall truss width: 290mm (11 7/16")
- ✅ Main Chord Tubing: 50mm (2") OD
- ✅ Diagonal Bracing: 20mm (3/4")
- ✅ Wall Thickness: 2mm (0.08")
- ✅ Made of high-strength EN-AW 6082 T6 aluminum
- ✅ TUV-certified welds for maximum safety
- ✅ Includes all connection hardware for one full circle
- ✅ Total kit weight: 10.9kg / 24lb
