IB-C1.5-V180-KIT
1.5m / 4.92ft Full Circle Truss Kit · F32 I-Beam Truss · Vertically Curved

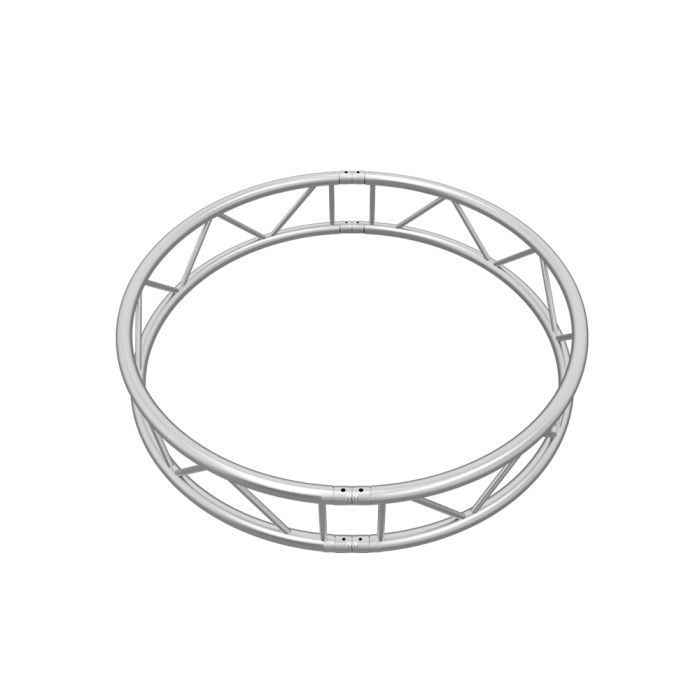

The IB-C1.5-V180-KIT is a complete circular truss package designed to create a 1.5-meter (4.92ft) outer diameter circle on a vertical plane. As part of the F32 I-Beam series, this kit is perfect for building arches, curved stage backdrops, and unique architectural displays. It is constructed from high-strength EN-AW 6082 T6 aluminum with TUV-certified welds to ensure maximum safety and load capacity.

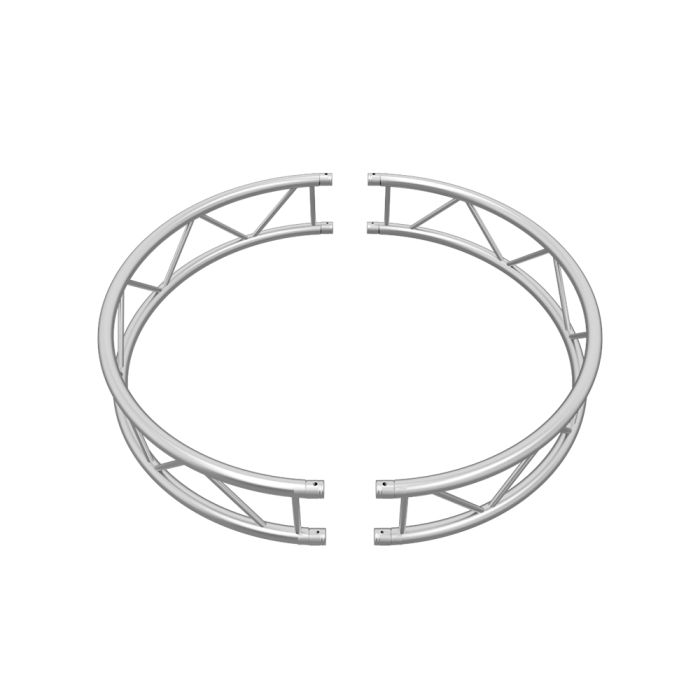

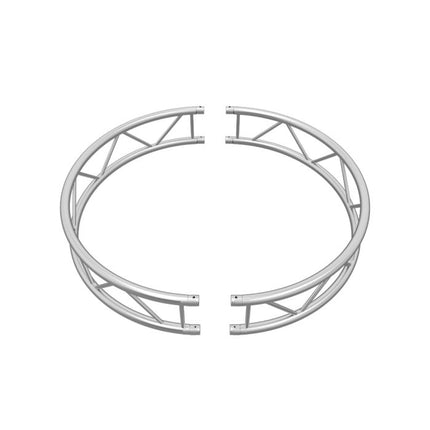

This all-in-one kit consists of two 180-degree vertically curved sections (IB-C1.5-V-ARC180) that seamlessly connect to form a perfect circle. Ready for immediate deployment, the package includes all the necessary conical connectors, pins, and clips, providing a reliable and visually stunning solution for your event or installation.
Key Features ▼
- ✅ Full Circle Truss Kit (4.92ft / 1.5m outer diameter)
- ✅ Vertically curved for creating arches and circular structures
- ✅ Composed of two 180° half-circle sections
- ✅ Overall truss width: 290mm (11 7/16")
- ✅ Main Chord Tubing: 50mm (2") OD
- ✅ Diagonal Bracing: 20mm (3/4")
- ✅ Wall Thickness: 2mm (0.08")
- ✅ Made of high-strength EN-AW 6082 T6 aluminum
- ✅ TUV-certified welds for superior safety
- ✅ Includes all connection hardware for one full circle
- ✅ Total kit weight: 10.9kg / 24lb
