IB-C2-H90-KIT
2m / 6.56ft Full Circle Truss Kit · F32 I-Beam Truss · EN-AW 6082 T6

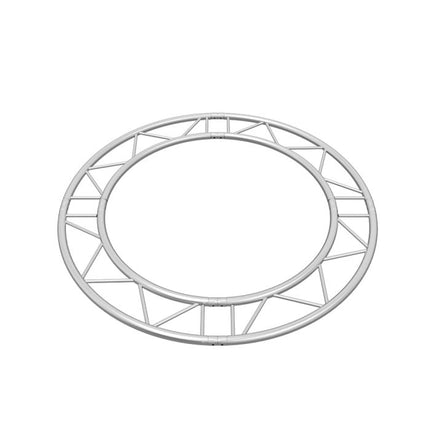

The IB-C2-H90-KIT is a complete circular truss package designed to create a 2-meter (6.56ft) outer diameter circle. As a key component of the F32 I-Beam series, this kit is ideal for creating large-scale circular lighting rigs, trade show displays, and eye-catching centerpieces. It's constructed from high-strength EN-AW 6082 T6 aluminum with TUV-certified welds, ensuring maximum safety and structural reliability for demanding applications.

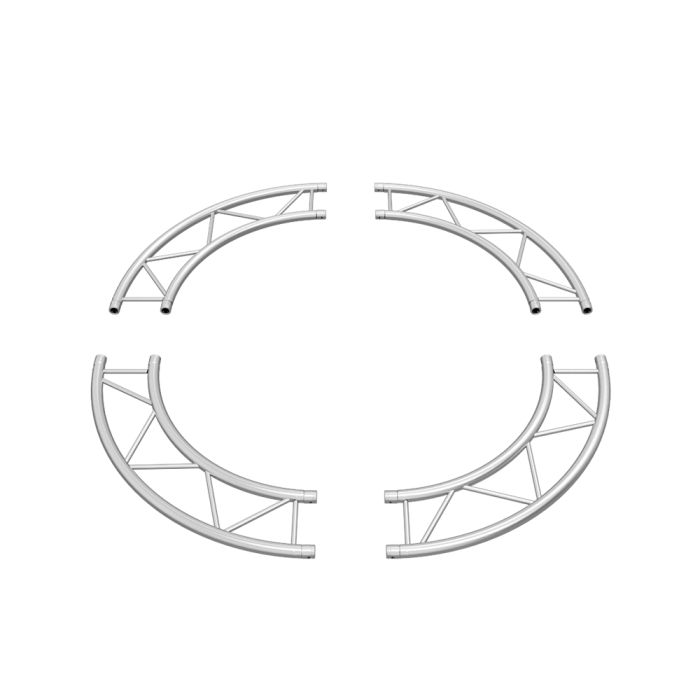

This comprehensive kit includes four 90-degree quarter-circle sections (IB-C2H ARC90) that assemble into a perfect circle. The modular design simplifies transportation and setup. All necessary conical connectors, pins, and clips are included, making it a ready-to-deploy solution for creating impressive circular structures.
Key Features ▼
- ✅ Full Circle Truss Kit (6.56ft / 2m outer diameter)
- ✅ Composed of four 90° quarter-circle sections
- ✅ Overall truss width: 290mm (11 7/16")
- ✅ Main Chord Tubing: 50mm (2") OD
- ✅ Diagonal Bracing: 20mm (3/4")
- ✅ Wall Thickness: 2mm (0.08")
- ✅ Made of high-strength EN-AW 6082 T6 aluminum
- ✅ TUV-certified welds for superior safety and durability
- ✅ Includes all connection hardware for one full circle
- ✅ Total kit weight: 18.1kg / 40lb
