IB-C3-H90-KIT
3m / 9.84ft Full Circle Truss Kit · F32 I-Beam Truss · EN-AW 6082 T6

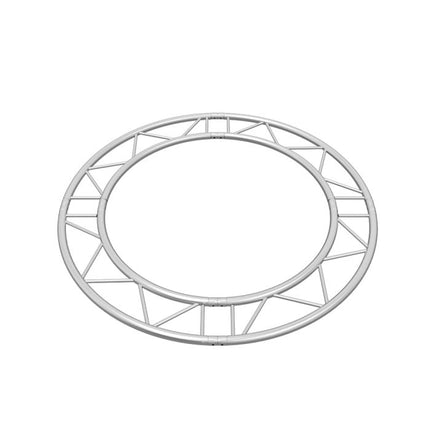

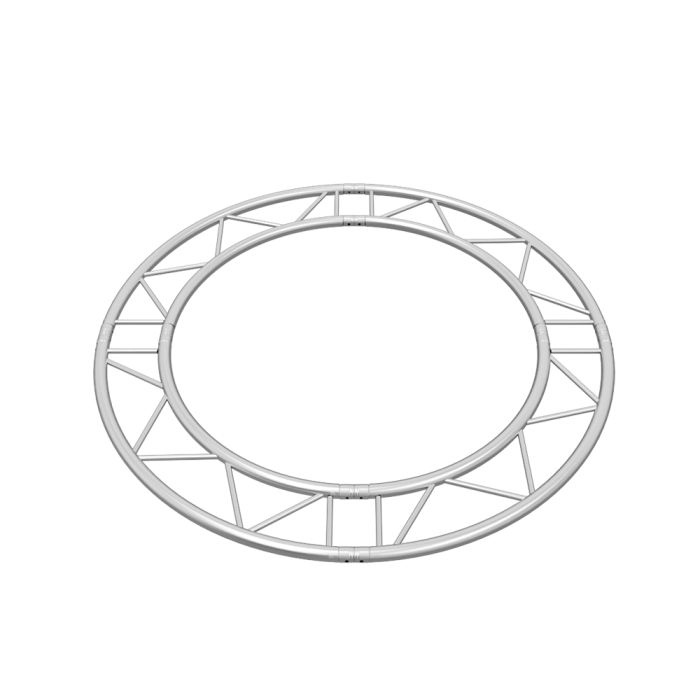

The IB-C3-H90-KIT is a large-format circular truss package designed to create a 3-meter (9.84ft) outer diameter circle. As a flagship component of the F32 I-Beam series, this kit is perfect for creating expansive circular lighting rigs, concert stage designs, and major event installations. It is fabricated from high-grade EN-AW 6082 T6 aluminum with TUV-certified welds, ensuring maximum structural integrity and safety for heavy-duty applications.

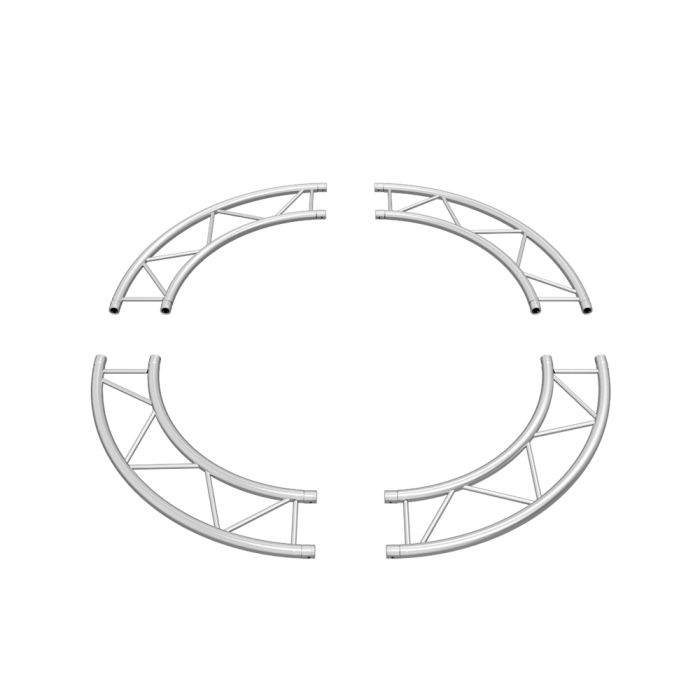

This all-inclusive kit contains four 90-degree quarter-circle sections (IB-C3H ARC90) that assemble into a seamless, full circle. Its modular nature simplifies transportation and allows for efficient setup and teardown. The package includes all necessary conical connectors, pins, and clips, making it a complete, ready-to-use solution for your most ambitious circular designs.
Key Features ▼
- ✅ Full Circle Truss Kit (9.84ft / 3m outer diameter)
- ✅ Composed of four 90° quarter-circle sections
- ✅ Overall truss width: 290mm (11 7/16")
- ✅ Main Chord Tubing: 50mm (2") OD
- ✅ Diagonal Bracing: 20mm (3/4")
- ✅ Wall Thickness: 2mm (0.08")
- ✅ Made of high-strength EN-AW 6082 T6 aluminum
- ✅ TUV-certified welds for maximum safety and load capacity
- ✅ Includes all connection hardware for one full circle
- ✅ Total kit weight: 25.4kg / 56lb
