IB-C3-V90-KIT
3m / 9.84ft Full Circle Truss Kit · F32 I-Beam Truss · Vertically Curved

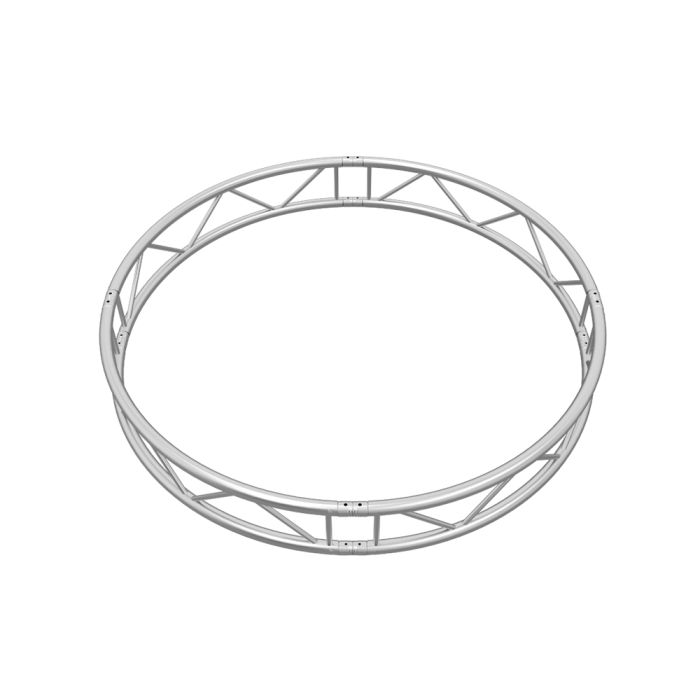

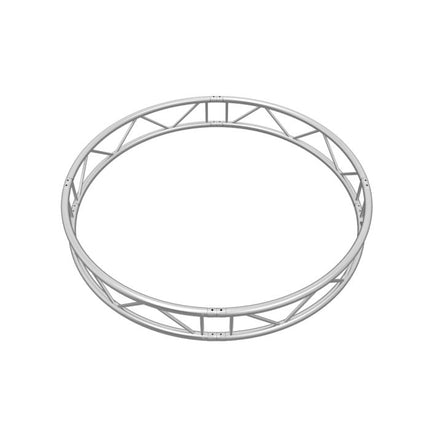

The IB-C3-V90-KIT is a large-scale circular truss package designed to construct a 3-meter (9.84ft) outer diameter circle on a vertical plane. As a premier component of the F32 I-Beam series, this kit is perfectly suited for creating grand arches, immersive tunnels, and commanding stage backdrops. It is built from high-strength EN-AW 6082 T6 aluminum with TUV-certified welds, ensuring superior safety and stability for large, load-bearing structures.

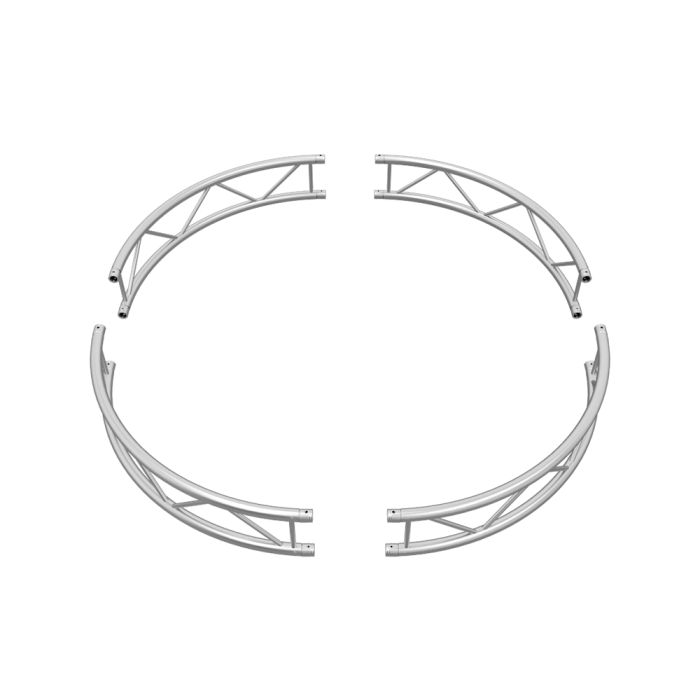

This complete kit includes four 90-degree vertically curved sections (IB-C3V ARC90) that join together to form a seamless full circle. Its modular design simplifies handling and allows for efficient assembly. The package is delivered with all the necessary conical connectors, pins, and clips, providing a professional, ready-to-build solution for your most creative and large-scale projects.
Key Features ▼
- ✅ Full Circle Truss Kit (9.84ft / 3m outer diameter)
- ✅ Vertically curved for building large arches and tunnels
- ✅ Composed of four 90° quarter-circle sections
- ✅ Overall truss width: 290mm (11 7/16")
- ✅ Main Chord Tubing: 50mm (2") OD
- ✅ Diagonal Bracing: 20mm (3/4")
- ✅ Wall Thickness: 2mm (0.08")
- ✅ Made of high-strength EN-AW 6082 T6 aluminum
- ✅ TUV-certified welds for maximum structural reliability
- ✅ Includes all connection hardware for one full circle
- ✅ Total kit weight: 25.4kg / 56lb
