IB-C4-H90-KIT
4m / 13.12ft Full Circle Truss Kit · F32 I-Beam Truss · EN-AW 6082 T6

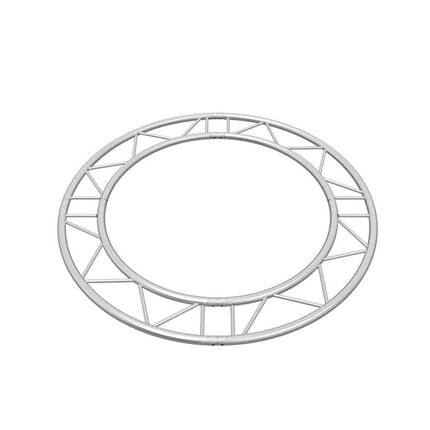

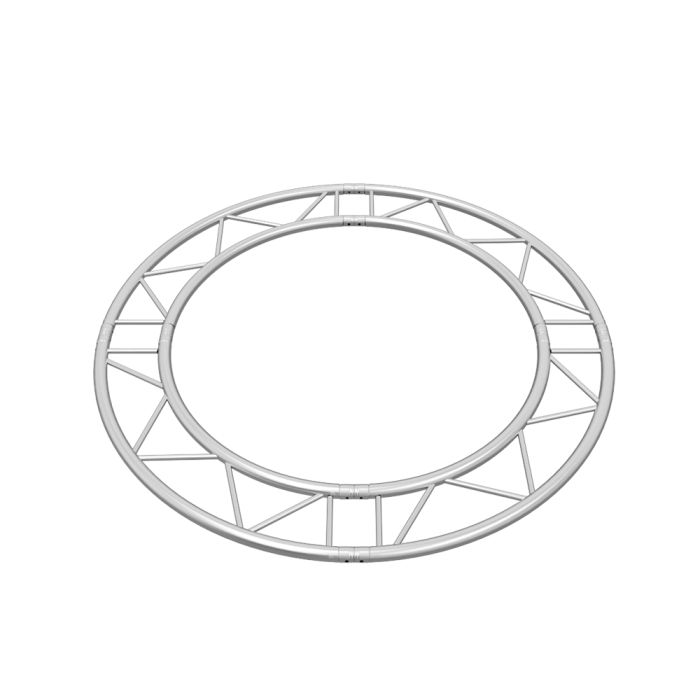

The IB-C4-H90-KIT is our largest standard circular truss package, designed to create an expansive 4-meter (13.12ft) outer diameter circle. As a premier solution in the F32 I-Beam series, this kit is engineered for major productions, including arena concerts, large-scale exhibitions, and permanent installations. It is fabricated from high-strength EN-AW 6082 T6 aluminum with TUV-certified welds, ensuring maximum safety and load-bearing capacity for the most demanding applications.

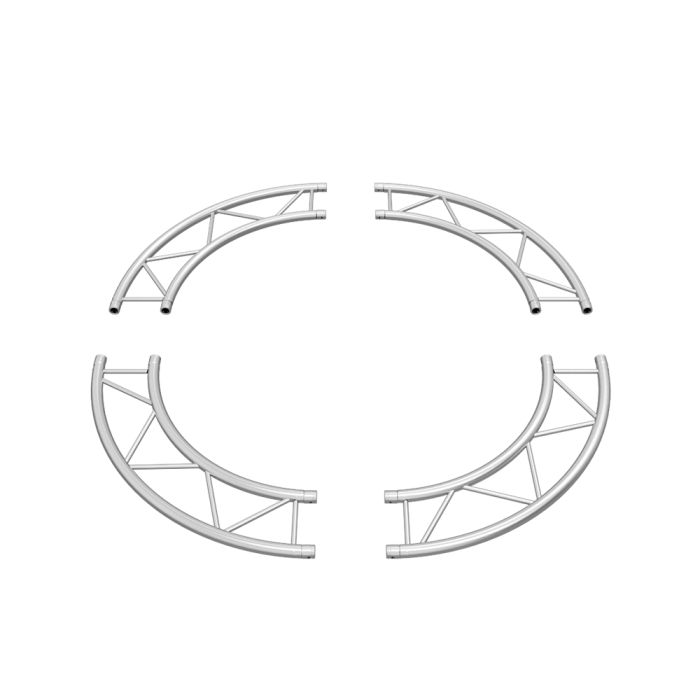

This complete kit is comprised of four 90-degree quarter-circle sections (IB-C4H ARC90) that assemble into a perfect, seamless circle. The modular design simplifies logistics and allows for a manageable setup process, even for a structure of this size. It ships with all necessary conical connectors, pins, and clips for a secure, ready-to-build experience.
Key Features ▼
- ✅ Full Circle Truss Kit (13.12ft / 4m outer diameter)
- ✅ Composed of four 90° quarter-circle sections
- ✅ Overall truss width: 290mm (11 7/16")
- ✅ Main Chord Tubing: 50mm (2") OD
- ✅ Diagonal Bracing: 20mm (3/4")
- ✅ Wall Thickness: 2mm (0.08")
- ✅ Made of high-strength EN-AW 6082 T6 aluminum
- ✅ TUV-certified welds for maximum structural integrity
- ✅ Includes all connection hardware for one full circle
- ✅ Total kit weight: 30.8kg / 68lb
