IB-C4-V90-KIT
4m / 13.12ft Full Circle Truss Kit · F32 I-Beam Truss · Vertically Curved

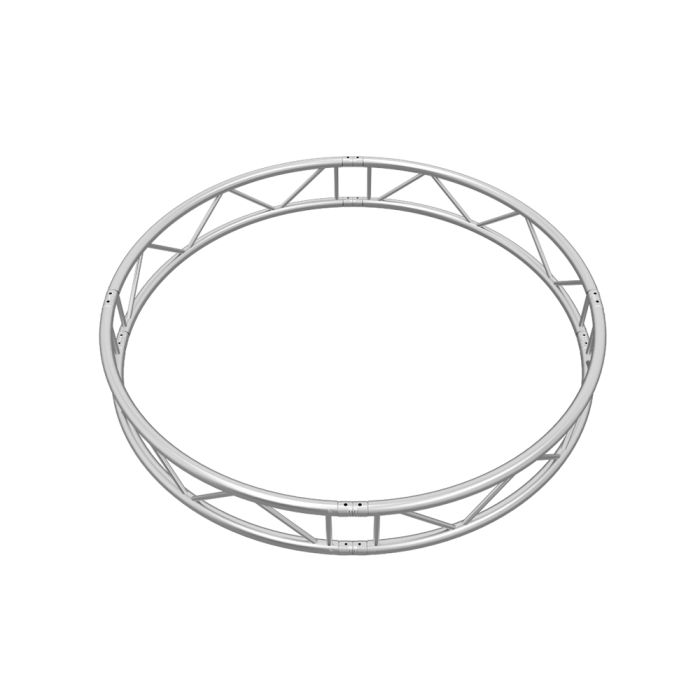

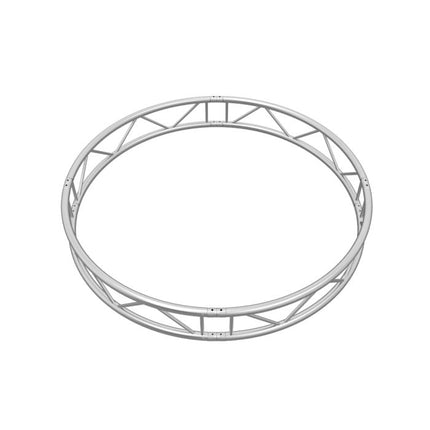

The IB-C4-V90-KIT is our largest standard vertically curved circular truss package, engineered to build an impressive 4-meter (13.12ft) outer diameter circle. As a key component of the F32 I-Beam series, this kit is the ultimate solution for creating massive arches, immersive tunnels, and dominant stage features. It is constructed from high-strength EN-AW 6082 T6 aluminum with TUV-certified welds to guarantee maximum safety and stability for the most ambitious structures.

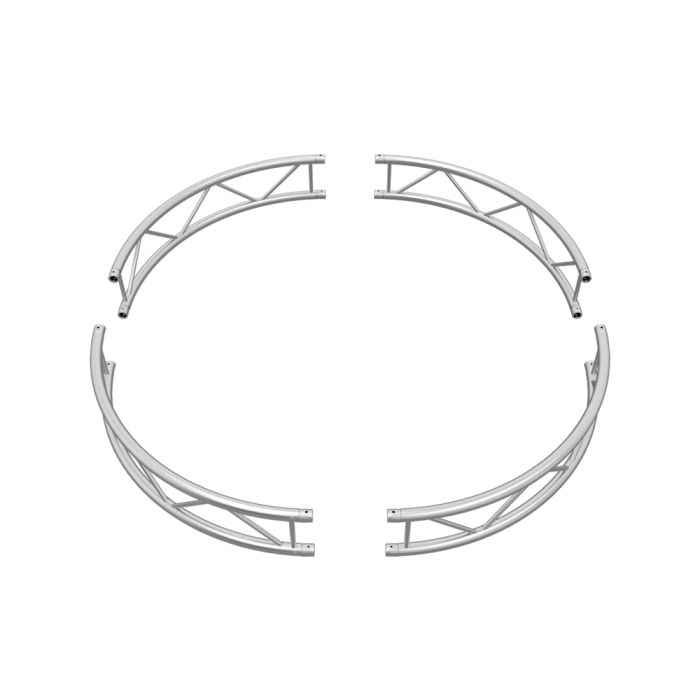

This comprehensive kit consists of four 90-degree vertically curved sections (IB-C4V ARC90) that assemble into a perfect, large-scale circle. The modular design facilitates easier transportation and a streamlined setup process. The package includes all necessary conical connectors, pins, and clips, providing a complete, professional-grade solution for creating truly monumental designs.
Key Features ▼
- ✅ Full Circle Truss Kit (13.12ft / 4m outer diameter)
- ✅ Vertically curved for creating massive arches and tunnels
- ✅ Composed of four 90° quarter-circle sections
- ✅ Overall truss width: 290mm (11 7/16")
- ✅ Main Chord Tubing: 50mm (2") OD
- ✅ Diagonal Bracing: 20mm (3/4")
- ✅ Wall Thickness: 2mm (0.08")
- ✅ Made of high-strength EN-AW 6082 T6 aluminum
- ✅ TUV-certified welds for superior structural integrity
- ✅ Includes all connection hardware for one full circle
- ✅ Total kit weight: 30.8kg / 68lb
