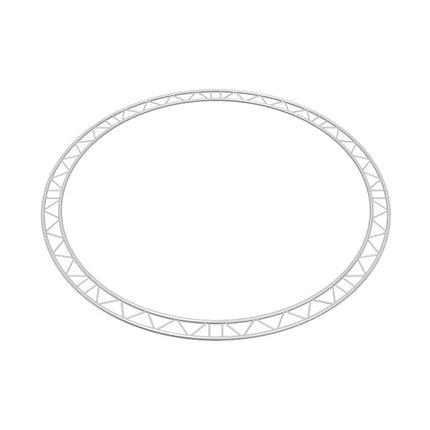

IB-C5-H45-KIT
5m / 16.4ft Full Circle Truss Kit · F32 I-Beam Truss · EN-AW 6082 T6

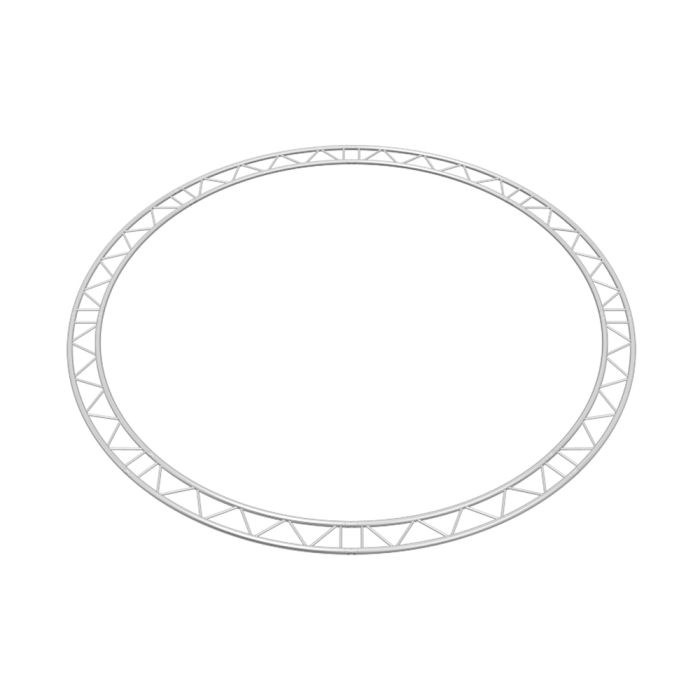

The IB-C5-H45-KIT is a massive circular truss package designed to create a 5-meter (16.4ft) outer diameter circle. As a premier offering in the F32 I-Beam series, this kit is engineered for large-scale productions such as car shows, major exhibition stands, and arena-sized lighting rigs. It is constructed from high-strength EN-AW 6082 T6 aluminum with TUV-certified welds, ensuring maximum structural integrity and safety for the most demanding applications.

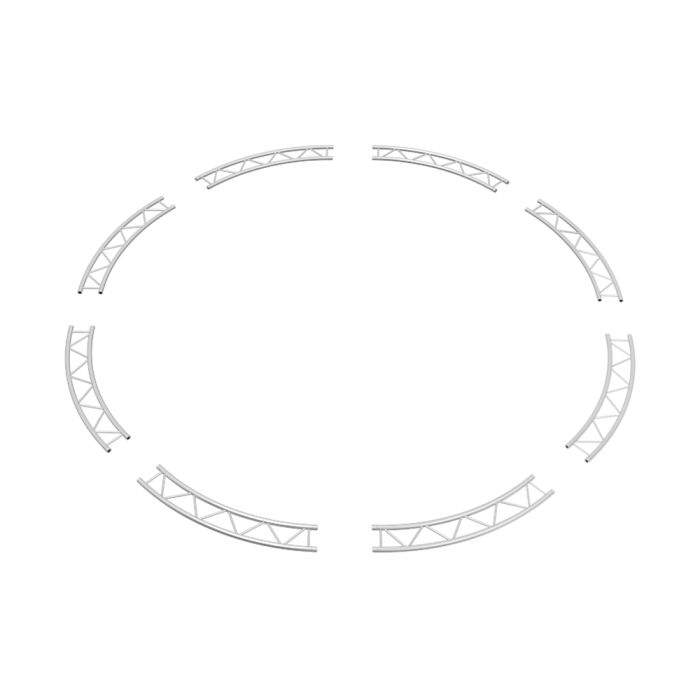

This comprehensive kit includes eight 45-degree sections (IB-C5H ARC45) that assemble into a perfect, expansive circle. The highly modular 8-piece design makes the logistics of transporting and setting up such a large structure far more manageable. The package comes complete with all necessary conical connectors, pins, and clips for a secure, ready-to-build experience.
Key Features ▼
- ✅ Full Circle Truss Kit (16.4ft / 5m outer diameter)
- ✅ Composed of eight 45° octagonal-circle sections
- ✅ Overall truss width: 290mm (11 7/16")
- ✅ Main Chord Tubing: 50mm (2") OD
- ✅ Diagonal Bracing: 20mm (3/4")
- ✅ Wall Thickness: 2mm (0.08")
- ✅ Made of high-strength EN-AW 6082 T6 aluminum
- ✅ TUV-certified welds for superior safety and load capacity
- ✅ Includes all connection hardware for one full circle
- ✅ Total kit weight: 43.5kg / 96lb
