IB-C5-V45-KIT
5m / 16.4ft Full Circle Truss Kit · F32 I-Beam Truss · Vertically Curved

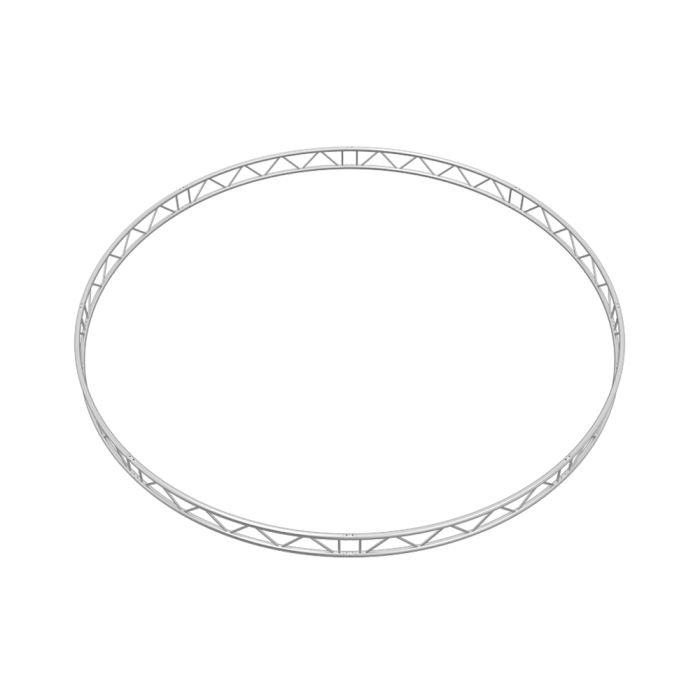

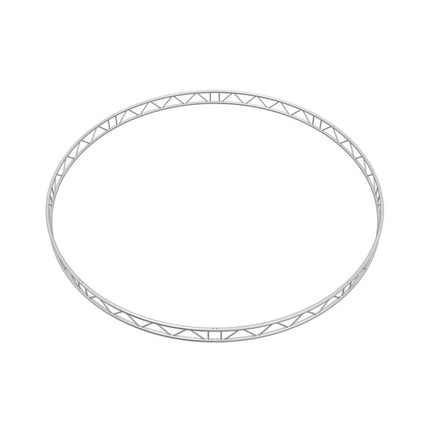

The IB-C5-V45-KIT is a large-format circular truss package designed to create a massive 5-meter (16.4ft) outer diameter circle on a vertical plane. As a key component of the F32 I-Beam series, this kit is the ideal solution for building monumental arches, immersive tunnels, and grand stage backdrops. It is fabricated from high-strength EN-AW 6082 T6 aluminum with TUV-certified welds, ensuring maximum safety and stability for heavy-duty applications.

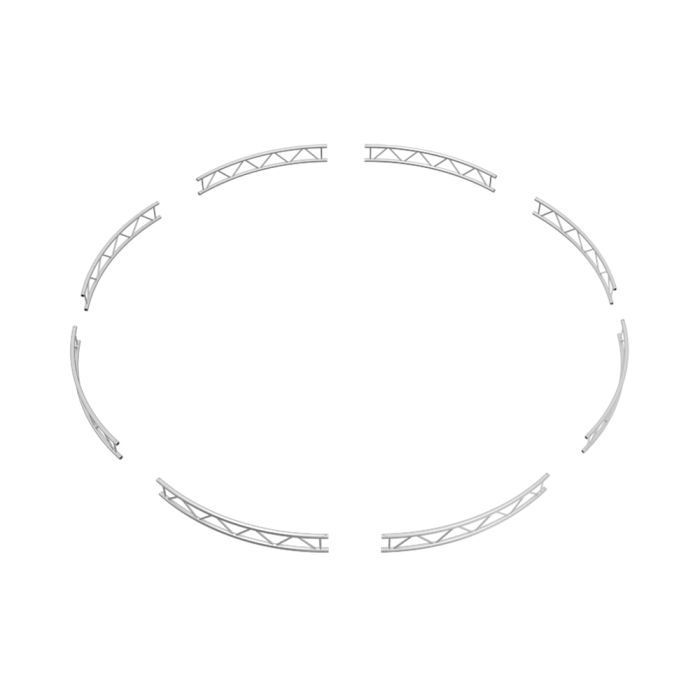

This comprehensive kit consists of eight 45-degree vertically curved sections (IB-C5V ARC45) that assemble into a seamless, full circle. The 8-piece modular design makes transporting and setting up a structure of this scale significantly more manageable. The package is delivered complete with all necessary conical connectors, pins, and clips, providing a professional, ready-to-build solution for your most ambitious designs.
Key Features ▼
- ✅ Full Circle Truss Kit (16.4ft / 5m outer diameter)
- ✅ Vertically curved for building large-scale arches and surrounds
- ✅ Composed of eight 45° octagonal-circle sections
- ✅ Overall truss width: 290mm (11 7/16")
- ✅ Main Chord Tubing: 50mm (2") OD
- ✅ Diagonal Bracing: 20mm (3/4")
- ✅ Wall Thickness: 2mm (0.08")
- ✅ Made of high-strength EN-AW 6082 T6 aluminum
- ✅ TUV-certified welds for superior structural safety
- ✅ Includes all connection hardware for one full circle
- ✅ Total kit weight: 43.5kg / 96lb
