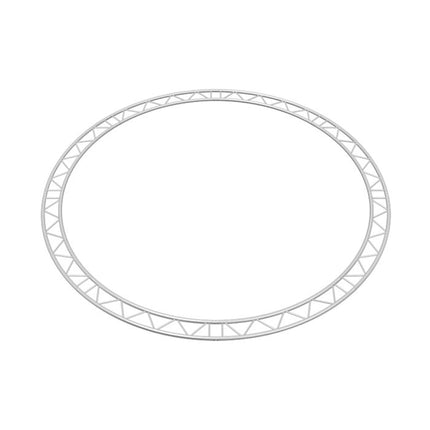

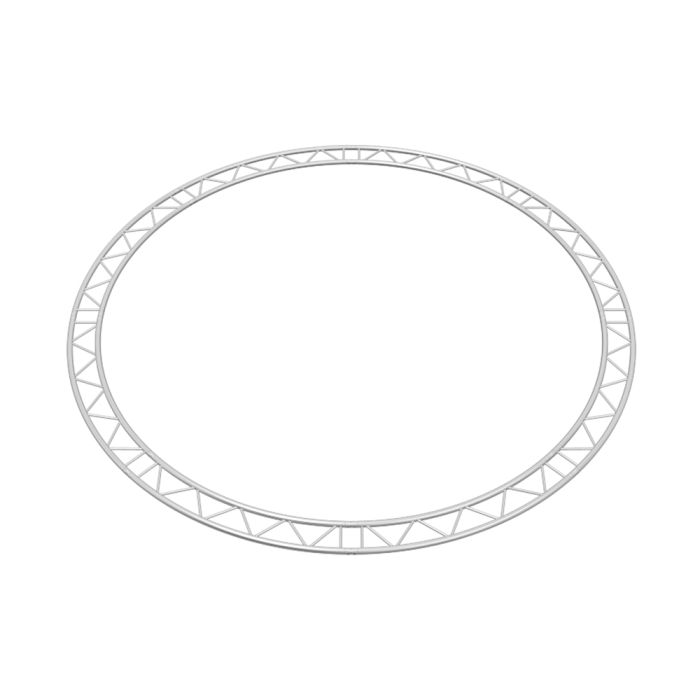

IB-C6-H45-KIT
6m / 19.68ft Full Circle Truss Kit · F32 I-Beam Truss · EN-AW 6082 T6
The IB-C6-H45-KIT is a grand-scale circular truss package designed to create a massive 6-meter (19.68ft) outer diameter circle. As a flagship product in the F32 I-Beam series, this kit is engineered for major productions, including festival stages, arena shows, and large architectural installations. It is fabricated from high-strength EN-AW 6082 T6 aluminum with TUV-certified welds, guaranteeing ultimate safety and reliability for the most ambitious designs.

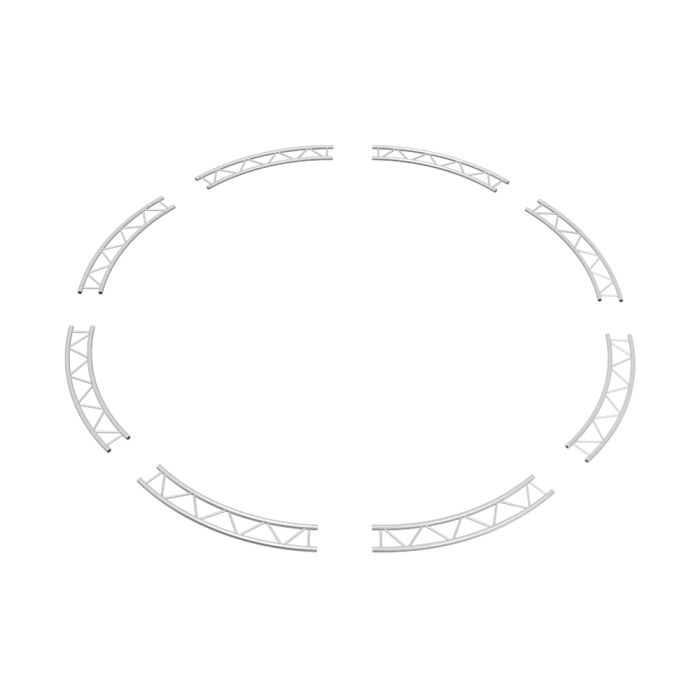

This all-inclusive kit contains eight 45-degree sections (IB-C6H ARC45) that assemble into a perfect, seamless circle. The 8-piece modular design makes the transportation and assembly of such a large-scale structure significantly more manageable. The package is delivered complete with all necessary conical connectors, pins, and clips for a secure, ready-to-build experience.
Key Features ▼
- ✅ Full Circle Truss Kit (19.68ft / 6m outer diameter)
- ✅ Composed of eight 45° octagonal-circle sections
- ✅ Overall truss width: 290mm (11 7/16")
- ✅ Main Chord Tubing: 50mm (2") OD
- ✅ Diagonal Bracing: 20mm (3/4")
- ✅ Wall Thickness: 2mm (0.08")
- ✅ Made of high-strength EN-AW 6082 T6 aluminum
- ✅ TUV-certified welds for maximum structural safety
- ✅ Includes all connection hardware for one full circle
- ✅ Total kit weight: 47.2kg / 104lb
