Choosing between 230W, 400W, and 600W beam lights? Here's exactly how to pick the right power for your stage or event. The wattage you select directly impacts brightness, throw distance, and energy consumption—three factors that can make or break your lighting design.

As a lighting professional who's set up countless shows, I've seen venues go dark mid-performance because someone installed beam lights that drew too much power. I've also watched disappointed clients realize their lights weren't powerful enough for their outdoor festival. You don't want either scenario.

In this guide, we'll compare brightness levels, practical applications, and running costs across these popular wattages. You might be surprised which one actually fits your show best—and it's not always the highest power option.

Three beam lights of different wattages (230W, 400W, 600W) showing comparative light output on a stage

What Does Wattage Mean for Beam Light Comparison?

When you see "230W" or "600W" on a beam light specification, that number represents the lamp's power consumption. But what does this actually mean for your lighting design?

In simple terms: wattage = lamp power = brightness + beam throw. Higher wattage generally produces brighter light that can travel further distances. But here's the important part: more watts doesn't always mean better for you.

Beam lights create those spectacular, defined shafts of light you see at concerts and events. The wattage determines not just brightness, but also:

  • How far the beam will travel (throw distance)
  • How visible the beam will be in different environments
  • Power requirements for your venue
  • Heat generated during operation
  • Lamp life expectancy

Your venue size, event type, and available power infrastructure should guide your wattage choice more than simply wanting "the brightest option."

230W Beam Light — Best For Smaller Venues

The 230W beam light is the lightweight champion of the moving head world. Don't let the lower wattage fool you—these fixtures pack plenty of punch for the right applications.

Key Features of 230W Beam Lights

  • Compact design - Typically 30-40% smaller than 400W models
  • Lower power draw - Usually around 350W total consumption
  • Faster movement - Lighter fixtures mean quicker pan/tilt response
  • Effective beam throw - Up to 65-80 feet in controlled environments

Pros

  • More affordable initial purchase
  • Lower power consumption saves on operating costs
  • Lighter weight for easier transport and rigging
  • Can run more fixtures on limited power circuits
  • Less heat generation

Cons

  • Limited visibility in outdoor/daylight settings
  • Shorter throw distance than higher wattage options
  • May not cut through atmospheric haze as effectively
  • Less impact in large venues

Perfect Applications for 230W Beam Lights

You'll get excellent results with 230W beam lights in:

  • Small to medium nightclubs and bars
  • Mobile DJ setups for weddings and corporate events
  • Small theater productions
  • Intimate concert venues (capacity under 500)
  • Installations with limited power availability

Need compact, efficient lighting for your smaller venue?

Our 230W beam lights deliver impressive performance without overwhelming your space or power supply.

Explore 230W Beam Light Options

400W Beam Light — The Versatile Mid-Range Option

400W beam lights creating dramatic effects in a medium-sized concert venue

The 400W beam light hits the sweet spot between power and practicality. This mid-range option offers significant brightness without the hefty power requirements of larger fixtures.

Key Features of 400W Beam Lights

  • Balanced performance - Significant brightness with manageable power needs
  • Impressive throw distance - Effective up to 100-120 feet
  • Enhanced gobo projection - Clearer pattern definition than 230W
  • Strong atmospheric beam effects - Cuts through haze effectively

Pros

  • Excellent versatility across different venue sizes
  • Strong visibility even with some ambient light
  • Better color saturation than 230W models
  • Good balance of power consumption vs. output
  • Industry standard for many rental companies

Cons

  • Higher power requirements than 230W
  • Heavier fixtures require more substantial rigging
  • May still struggle in very large outdoor venues
  • More heat generation requires better ventilation

Perfect Applications for 400W Beam Lights

The 400W beam light excels in these settings:

  • Medium to large nightclubs
  • Concert venues (capacity 500-1500)
  • Regional theater productions
  • Corporate events in hotel ballrooms
  • Indoor festivals and exhibitions
  • Houses of worship with modern production

Looking for the perfect balance of power and efficiency?

Our 400W beam lights deliver professional-grade performance for mid-sized venues without excessive power demands.

See 400W Beam Light Solutions

600W Beam Light — Maximum Impact for Large Productions

600W beam lights creating powerful aerial effects at a large outdoor festival

When you need maximum impact and visibility, the 600W beam light delivers professional-grade power. These high-output fixtures are the go-to choice for major productions where beam visibility is critical.

Key Features of 600W Beam Lights

  • Maximum brightness - Approximately 2-3x the output of 230W fixtures
  • Superior throw distance - Effective beyond 150+ feet
  • Excellent outdoor visibility - Can cut through ambient light
  • Premium optics - Sharper beam definition and gobo projection

Pros

  • Unmatched visibility in large venues
  • Effective even in challenging environments (outdoor, daylight)
  • Superior color saturation and beam definition
  • Professional-grade impact for major productions
  • Visible from greater distances for audience impact

Cons

  • 600W beams need 3x more power than 230W options
  • Significantly higher purchase cost
  • Heavier fixtures require substantial rigging infrastructure
  • Generate considerable heat requiring proper ventilation
  • Overkill (and potentially blinding) in smaller venues

Perfect Applications for 600W Beam Lights

The 600W beam light is the professional choice for:

  • Large concert venues and arenas
  • Outdoor festivals and events
  • Stadium productions
  • Large-scale touring productions
  • Broadcast and televised events
  • Architectural and long-throw applications

Planning a major production that demands maximum impact?

Our professional 600W beam lights deliver the power and throw distance needed for large-scale events and outdoor productions.

Discover 600W Beam Light Performance

Cost & Maintenance Factors

When comparing beam light wattages, the purchase price is just the beginning of your investment. Let's break down the real costs of owning and operating different wattage options.

Cost Factor 230W Beam Light 400W Beam Light 600W Beam Light
Average Purchase Price $800 - $1,200 $1,200 - $2,000 $1,800 - $3,000
Lamp Replacement Cost $80 - $120 $120 - $180 $180 - $250
Average Lamp Life 2,000-3,000 hours 1,500-2,000 hours 750-1,500 hours
Power Consumption (hourly) ~350W (0.35 kWh) ~550W (0.55 kWh) ~800W (0.8 kWh)
Hourly Operating Cost* $0.04 - $0.07 $0.07 - $0.11 $0.10 - $0.16

*Based on average electricity costs of $0.12-0.20 per kWh

It's not just about upfront cost, think lifetime. Higher wattage fixtures typically have shorter lamp life and higher replacement costs. For regular users, these ongoing expenses can quickly exceed the initial price difference between models.

Maintenance Considerations

  • Heat management - Higher wattage fixtures require more cooling and ventilation
  • Transportation - Larger fixtures mean fewer units per case and higher shipping costs
  • Rigging requirements - Heavier fixtures need stronger trussing and more points
  • Power distribution - Higher wattage means fewer fixtures per circuit

How to Choose the Right Beam Light Wattage

Selecting the perfect beam light wattage doesn't have to be complicated. Use this practical checklist to match your needs with the right power level:

Beam Light Wattage Selection Checklist

  1. Measure your venue size - For spaces under 2,000 sq ft, 230W is often sufficient. For 2,000-10,000 sq ft, consider 400W. For larger venues, 600W may be necessary.
  2. Calculate your throw distance - How far must your beam travel? Under 80 ft: 230W. 80-120 ft: 400W. Over 120 ft: 600W.
  3. Assess ambient light conditions - Dark club? 230W works well. Some ambient light? 400W cuts through better. Outdoor daytime? You'll need 600W.
  4. Check your power infrastructure - Count available circuits and calculate maximum load to ensure compatibility.
  5. Consider your rigging capacity - Verify weight limits for your truss or mounting points.

Venue-Specific Recommendations

Small Venues

Best choice: 230W

  • Bars & small clubs
  • Wedding venues
  • Small theaters
  • Corporate meeting rooms

Medium Venues

Best choice: 400W

  • Nightclubs
  • Mid-size theaters
  • Hotel ballrooms
  • Indoor festivals

Large Venues

Best choice: 600W

  • Concert halls
  • Arenas & stadiums
  • Outdoor festivals
  • Large production tours

"When in doubt, talk to your lighting supplier. They can help you balance your creative vision with practical considerations like power availability and venue constraints."

— Katy, ACS Lighting Professional

Is 400W enough for outdoor shows?

Short answer: Only for small setups. 400W beam lights can work for evening outdoor events with controlled ambient light, but they struggle during daylight hours or in very large outdoor spaces. For major outdoor productions, especially festivals or events with significant ambient light, 600W fixtures are strongly recommended.

Can I mix different wattages in the same show?

Absolutely! Many professional lighting designers strategically combine different wattages. You might use 600W fixtures for your main aerial effects, 400W for mid-stage beams, and 230W for accent lighting or areas closer to the audience. Just be mindful of balancing their brightness levels through programming.

Ready to Find Your Perfect Beam Light?

Choosing between 230W, 400W, and 600W beam lights comes down to matching the right tool to your specific needs. Remember that bigger isn't always better—the most efficient setup is one that delivers the impact you need without wasting power or budget on unnecessary capacity.

For small to medium venues, the 230W option often provides the perfect balance of performance and efficiency. Mid-size productions typically benefit from the versatility of 400W fixtures. And when you need maximum impact for large-scale events, 600W beam lights deliver the professional power you need.

Need help picking the perfect wattage?

Message us today — we'll match you with the beam light that makes your show shine (without frying your power bill).

Get Expert Lighting Advice

Whether you're lighting a small club gig or designing for a major festival, understanding the practical implications of beam light wattage will help you create more impressive shows while managing your resources effectively.


Blog posts

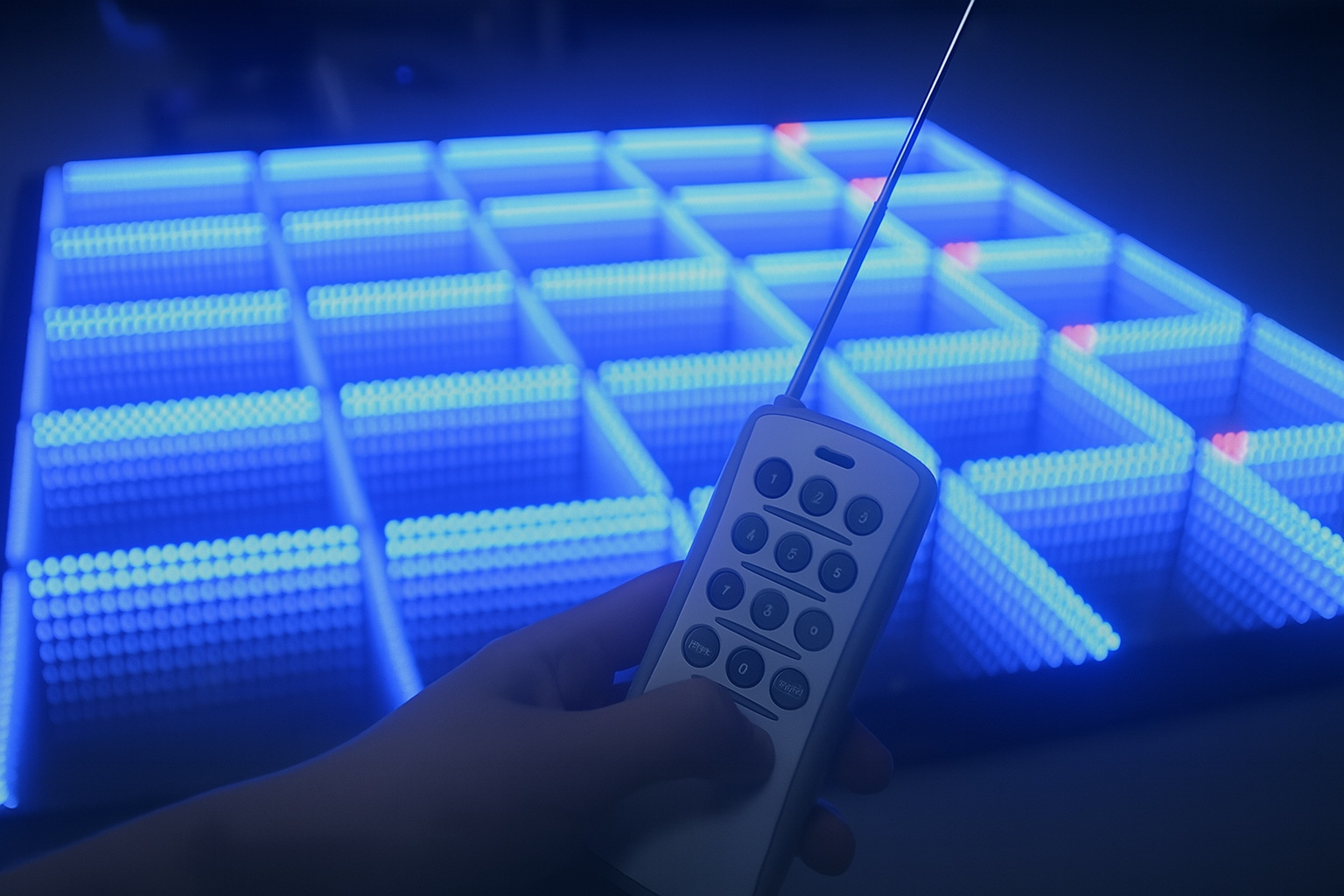

  • How to Control an LED Dance Floor with DMX: Step-by-Step Guide for Beginners
